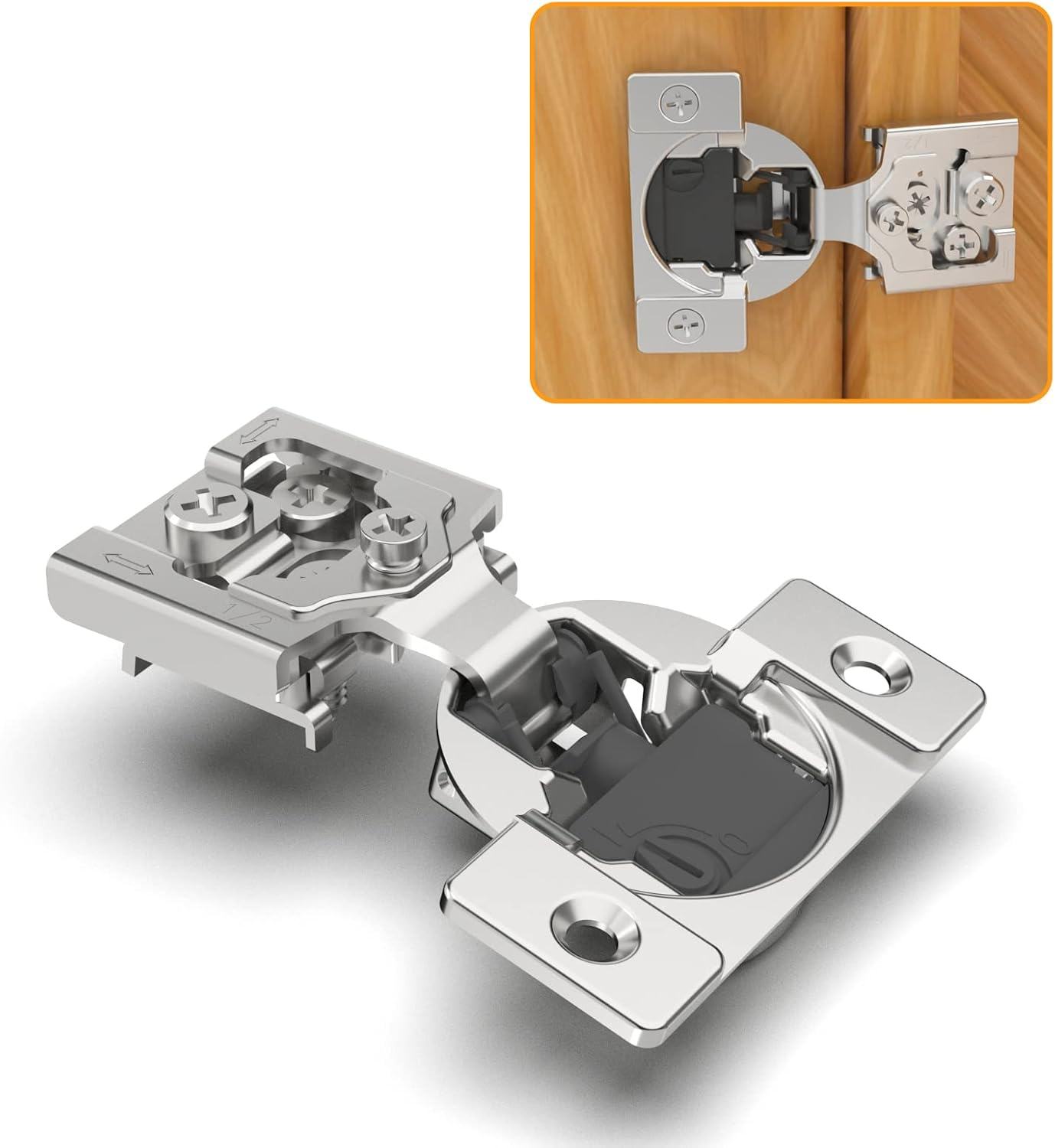

10 Pack 1/2" Overlay 4D Soft Close Concealed Hinges for Face Frame Door, Adjusta
10 Pack 1/2" Overlay 4D Soft Close Concealed Hinges for Face Frame Door, Adjustable Closing Speed, Smooth Slow Self Close Hinges, Satin Nickel, 105° Open Angle Stainless Steel Cabinet Hinges
- Installation Specification: Cup diameter is 35mm; Cup depth is 11.5mm, Screw holes distance is 45mm; Opening angle is 105 degrees, suitable for most cabinet door styles. Each cabinet hinge comes with 2 easy-on dowels and 3 self-tapping wooden screws to ensure a perfect fit.
- SOFT CLOSE CABINET HINGE: Each overlay concealed cabinet hinge includes a built-in POM damper, Reduced closing speed prevents noises from the kitchen and prolongs the life of doors, cabinets, and hinges. In addition, it also supports ★SMALL SOFT CLOSE ANGLE★, which can better protect your finger.
- 4D Adjustable Upgrade: 4D hinges can adjust the cabinet door just by turning a screwdriver (Vertical, Horizontal, Depth, Closing Speed), which will make sure that your new custom-made cabinet doors don't sag, align properly, and will open and close smoothly; Closing speed can be adjusted at will within 0-7s.
- Double Electroplated: The material of our overlay cabinet hinges is high quality steel and nickel plated finish and brass plated bottom, durable and perfect for kitchen cabinet doors, wardrobes, and TV cabinets, bookcases, wine cabinets, and other luxury door connections.
- Buy with Confidence: Chibery hinges Conform to the standards and certifications of ISO9001, ISO14001, BHMA, KCMA, and SGS. The product can withstand more than 100,000 times of opening and closing and more than 48 hours of salt spray test. If you encounter any problems in the process of use, please feel free to contact us, we will provide the most intimate service.
Product Description
Why choose Chibery's hinges?
✔ Mature product supply chains
1. Chibery has a mature and professional hinge supply chain, our mission is to always put the user experience first, be product-centric, and constantly optimize the sense of use and cost performance of our products.
2. Chibery hinges have been sold to many countries around the world for sale. We highly value the voice of our customers. We also want to bring our American customers cost-effective products, unparalleled quality, and the most personalized service!
✔ Exquisite Craftsmanship & Sturdy Quality
1. Chibery face frame soft close cabinet hinges provide long-lasting durability, 4D adjustable construction, and soft close dampers that support soft close ＆ small soft close angles.
2. Heavy-duty steel surface treatment, double layers electroplating finish, durable, and strong rust prevention capacity (past 48 hours salt spray test), even the roughest kitchens or bathrooms can be durable.
3. Silent opening and closing.
4. Adjustable closing speed (0-7s), Meeting the needs of most people.
✔ Wide range of applications
It's useful for kitchen cabinet doors, wardrobe, tv cabinets, bookcases, wine, and other luxury door connections.
✔ Easy to install
There is no assembly required. All mounting hardware needed for installation is included in the package, just install the hinges through the holes into the cabinet doors and side panel, and fine-tune with 4D adjustment. Very quick and easy installation.
Installation Notes
Installing Hinge to Door
- Drill hole of 1/2"(12.7mm) deep for hinge cup pertemplate using 1-2/5"(35mm) boring bit. Note: Do not drill through the door.
- Drill 1/16(1.5mm) pilot holes for the hinge.
- Insert the hinge into the door and fasten it with flat head wood screws.
Installing Door to Cabinet
- Open hinge to full extension.
- Connect door to side panel as shown by fasting the screws.
4D Adjustment Structure
- Adjust Up and Down by screw A(+/- 2mm)
- Adjust Left and Right by screw B(+/- 2mm)
- Adjust Front and Back by screw C(+/- 3mm)
- Of course, you can also adjust the closing speed of the door according to your needs, and it will take effect after closing the door once when speeding up.
Chibery Face Frame Soft Close Cabinet Hinges - Provide long-lasting durability, 4D Adjustment Structure, a soft close POM damper, and the reinforced strength to outlast even the roughest kitchens or bathrooms.
Specification:
- Size: 1/2 inch Overlay, 3/4 inch Overlay, 1-1/4 inch Overlay, 1 inch Overlay, 1-1/2 inch Overlay, 1-3/8 inch Overlay, 1-5/16 inch Overlay
- Opening Angle: 105°
- Hinge Cup Diameter: 35mm (1-2/5")
- Hinge Cup Depth: 11.6mm (9/25")
- Screw Hole Distance: 45mm (1-4/5")
- Drilling Distance On Door(K): 3-6mm
- Range Of Door Thickness: 14-26mm
Item Specification
-
Item model number -XXX Item Package Quantity 10 Style Self Closing, Adjustable Closing Speed, Soft Close Finish Nickel, Satin Nickel Hole Count 3 Mounting Type Door Mount Unit Count 10.0 Count Color 10 Pack Included Components Screw Accessories Kit, 1/2" Hinges X 10 Material Steel, Nickel, Brass Country of Origin China Batteries Required? No Number Of Pieces 10 Item Weight 1.43 pounds Batteries Included? No Usage ALL OVERLAY FACE FRAME - type cabinet doors. Such as Kitchen cabinet doors, Bathroom cabinet doors, Wardrobes, TV cabinets, Bookcases, Wine cabinets, and other Luxury door connections. Size 1/2 inch Overlay Finish Type Nickel, Satin Nickel Package Dimensions 8.03 x 5.24 x 2.4 inches
- Product Dimensions: 5.24 inches x 8.03 inches x 2.4 inches. Weight: 1.43 lb
