12V 14" DC Linear Actuator W/ Wireless Remote Controller for Auto Lifting System

Brand: SZMWKJ Sold By: TopSelected
Out of Stock
Ships from United States Arrives in 7-14 business days
Item can be returned in its original condition for a full refund or replacement within 30 days of receipt.
Delivery:
07
July2026
-
16
July2026
12V 14" DC Linear Actuator W/ Wireless Remote Controller for Auto Lifting System

12V 14" DC Linear Actuator W/ Wireless Remote C...

$166.52

Product Details

Product Description

Linear actuators are widely used in many industries, such as electric power, machinery, metallurgy, mine, petroleum, chemical industry, transportation, lifting, construction, food and feed processing and so on. With reliable performance, sensitive action stable running, the same characteristics of push and pull and good environment adapt- ability etc.

12V 14" DC Linear Actuator W/ Wireless Remote Controller for Auto Lifting System



Here for sale is 1PCS DC 12V 350mm/14" Stroke 1500N/330lbs max push load 5.7mm/s speed Linear Actuator with 1 Set Wireless Remote Control Kits.


The control kit comes with 2PCS remotes which are very small in size, convenient for operation.





Note 1: The battery in the photo is only for reference and is not included in the package.

Note 2: Make sure the input voltage for the whole system is DC 12V and the input current is no less than 3A.

Note 3: If there is no reaction after correct wiring, pls try to exchange the positive and negative pole of the power cord.



001

Product Name

Linear Actuator

Condition

100% New

Input Voltage

DC 12V

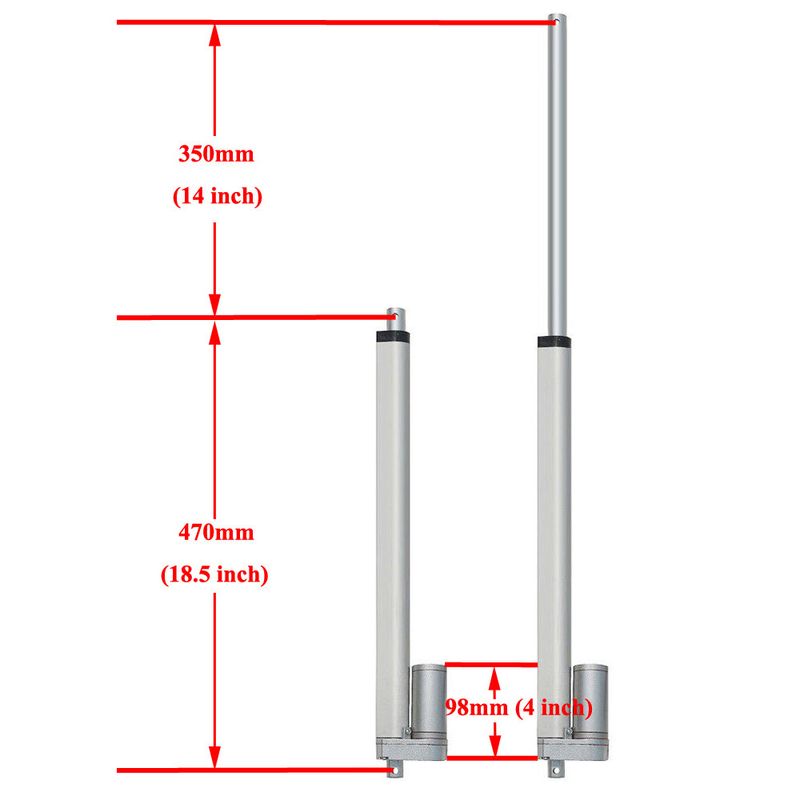

Stroke Length

350mm/14"

Retracted Length

470mm/18.50"

Extended Length

820mm/32.28"

Max Push Load

1500N/150KG/330lbs

Max Pull Load

1200N/120KG/264lbs

Speed

5.7mm/s (0.22"/s)

Power Cord Length

1.5Meters/59"

Duty Cycle

25%

Operating Frequency

20%

Material

Aluminum Alloy

Color

Silver Grey

Operation Temperature

-26 ° C ~ +65 ° C

Protection Class

IP54

No-load Current

< 0.5A

Max load Current

3A

Certification

CE

Warranty

Standard 1 year

Maintenance

Free-maintenance




002
LA350-

Stroke Length

50mm

100mm

150mm

200mm

250mm

300mm

350mm

400mm

450mm

Retracted Length

155mm

205mm

260mm

320mm

370mm

420mm

470mm

550mm

600mm

Extended Length

205mm

305mm

410mm

520mm

620mm

720mm

820mm

950mm

1050mm


Want to buy Other Stroke Length? Pls



007


* 100% Brand New and high quality


* Heavy Duty and Long Lasting Motor


* High quality aluminum alloy material


* High performance motor


* Built-in high quality limit switch


* The low noise design, noise level below 60 dB


* Multiple Purpose Applications Linear Actuator


* Commonly Used In Automotive, Medical Devices and Engineering Industry


With CE certification






This is TK005-2 Controller with 2 remote controls, it owns the function to control DC brush motor’s forward rotation and reverse rotation, it can also control two-way DC loads.
This controller comes with remote control learning function, users can set one remote to control multiple controllers, one controller can be paired with 3 remotes simultaneously, users can also use 1 remote or 2 remotes, here are two remotes by default, the remote controls and controller have been paired before leaving factory.
There are 3 working modes: Jog Control, Self-Lock Control and Interlock Controlthe 3 modes can be set and switched freely. The controller comes with limit port, users can use the limit function based on actual needs.


Specification:

Brand

SZMWKJ

Model

TK005-2

Operating Voltage

DC 9-30V

Max Load Current

10A

Fuse

10A

Control Mode

Jog /Self-lock / Interlock Control

Manual Buttons

Yes

Wireless Remote

Yes

Frequency

433MHZ

Control Distance

≥50Meters

Protection Class

IP42

Operating Temperature

-20 to + 60

Controller Dimension

97*50*32mm/3.8*1.96*1.25inch

Net Weight

115g

Package Weight

155g

Warranty

Standard One Year




Features:

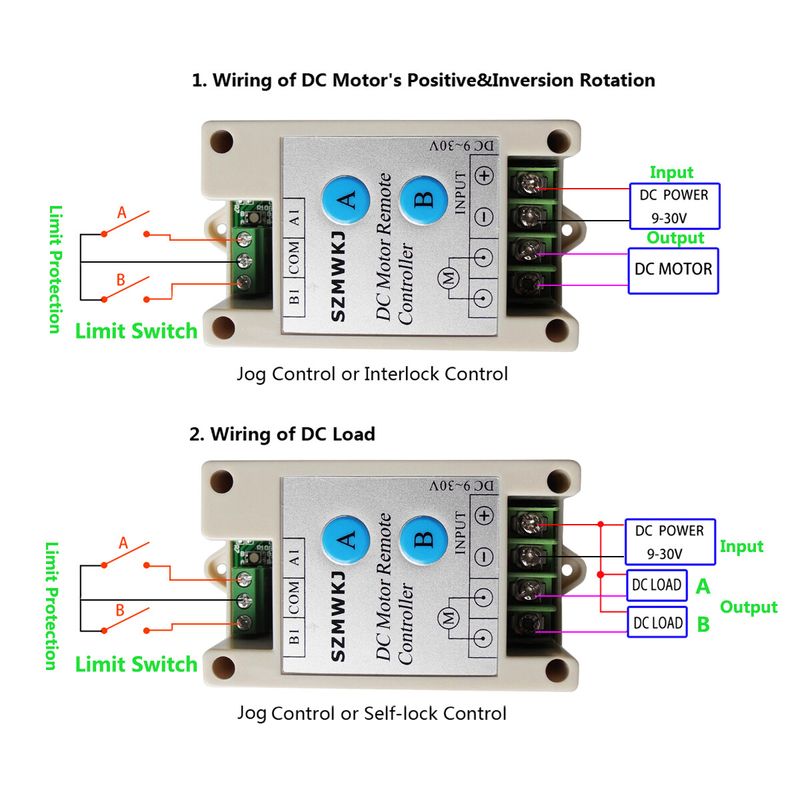

* Can control forward and reverse rotation of DC brush motors, can also work as a switch to control two-way DC loads.

* Three working modes (Jog Control, Self-Lock Control, Interlock Control) can be set freely.

* The controller is with replaceable internal fuse, with over-current and short-circuit protection function.

* Can be operated by the wireless remote control or the manual buttons on the controller box.

* The controller comes with remote learning function, it can be paired with 3 remotes simultaneously.

* With highly sensitive receiver, remote control distance ≥ 50meters.

* The controller is with low standby power, standby current ≤9mA.

For more details of our Wireless Remote Controller,
Pls




003

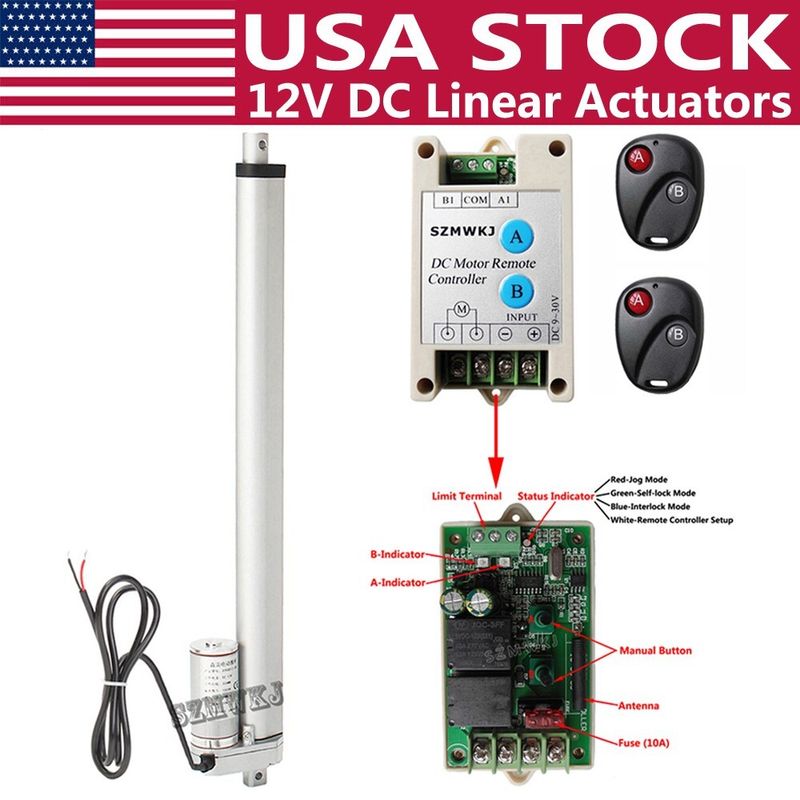

* 1PCS 350mm/14" Stroke DC 12V 5.7mm/s speed Linear Actuator.

* 1PCS Motor Controller Box.

* 2PCS Wireless Remote Control.

We also provide the Mounting Brackets for the Linear Actuators, if you need, Pls




004

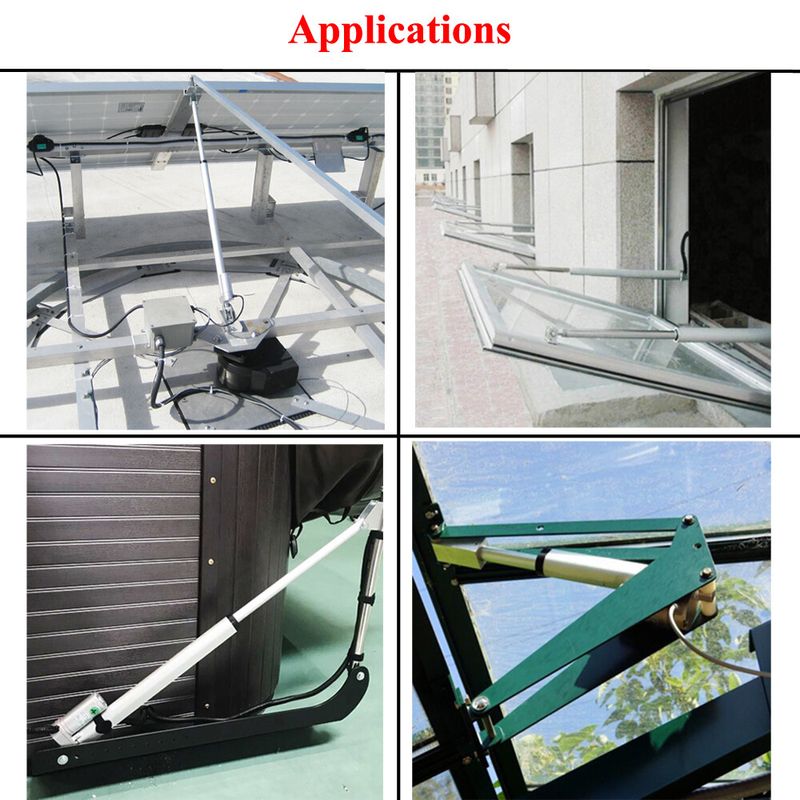

* Autos;

* The wedding system;

* Solar tracking system;

* Agricultural machinery;

* Industrial electric lifting system;

* The medical electric bed, surgical bed, traction bed;

* Chair for medical use: Electric wheelchair, Massage Chair, dental chair;

* Electric equipments: Electric sofa, Electric lifting lever, Electric booth, Electric sunroof, etc
