12V24V Car Power Circuit Probe Test Electrical System Tester Avometer Diagnostic
KM10 Product Description:
The KZYEE KM10 power scan kit is the most revolutionary circuit tester to date, featuring AVOmeter, test light , built -in flashlight , short circuit indicator , relay/component tester , continuity tester and bad groud indicator , the power scan is truly the ultimate in power and affordablity , allowing users to check circuitry in one single step . an absolute must for every technician looking for a fast and accurate solution to electrical systems diagnostics.
Power Probe Functions:
1. Perform these functions: power injection, measuring, ground testing, polarity checking, continuity testing and component activation.
2. Read the AVO meter, voltage, current, and resistance easily.
3. Press the power switch lightly and get the instant heat ground lead to energize the electrical components, such as the cooling fan, relay etc.
4. Activate the components by using the hot wire and ground lead simultaneously.
5. Determine the positive, negative and open circuit quickly.
6. Test the bad ground contacts quickly, follow and locate short circuits without wasting the fuse.
7. Test the continuity of the power switch, relay and diode quickly.
8. Protect the tool from overload through the inner circuit breaker.
9.Operate the tool without looking at the menu once users are familiar with the tone. Test along the vehicle by the long cable.
KM10 Electrical System Circuit Tester Features:
✔1. Easy to read AV0 meter allows you to read voltage, current and resistance at the fingertip.

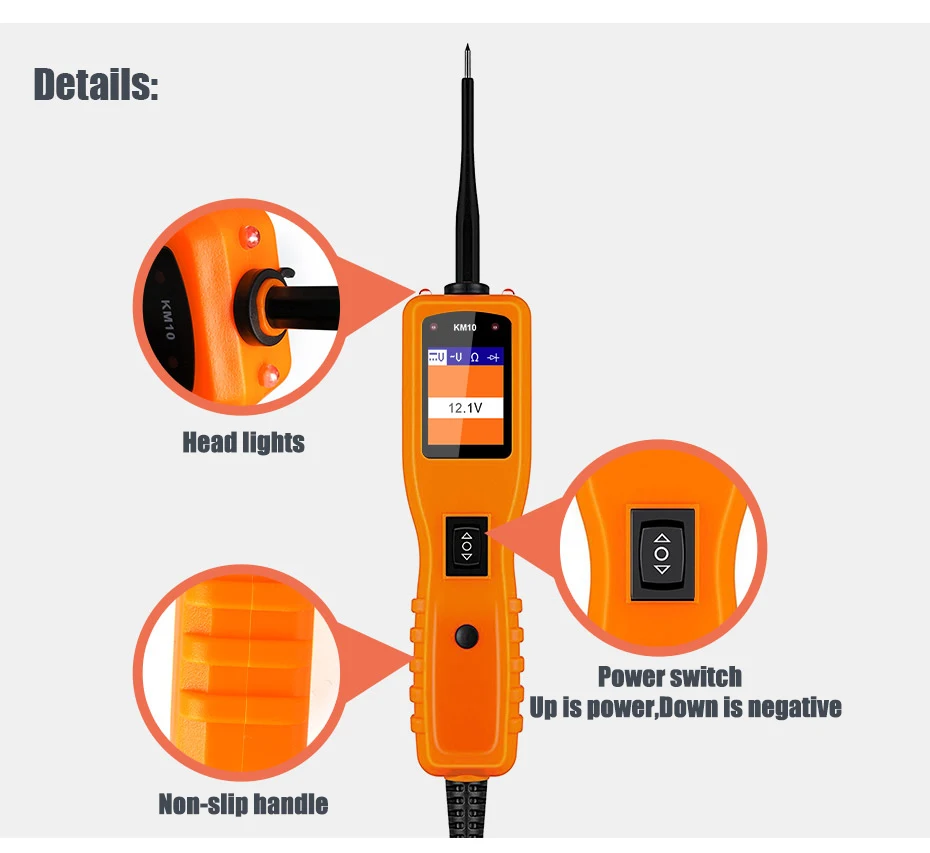

✔2. With a flip of the power switch, you have an instant hot/ground lead for powering up electrical components like cooling fans, relays, etc.
✔3. Simultaneously uses the hot lead and the found lead to activate components right in your hand.
✔4. Instantly identifies positive, negative and open circuits.
✔5. Circuit breaker protected.
✔6. Bulit-in flashlight enables you to work in the dark.
✔7. 20ft(extendable)cable provides excellent accesssiblity to test along the vehicle.
✔8. Extremely easy to use and highly reliable.
✔9. KM10 PowerScan Electrical System Diagnostics Circuit Tester is used as Power Probe for testing vehicle electrical circuit.

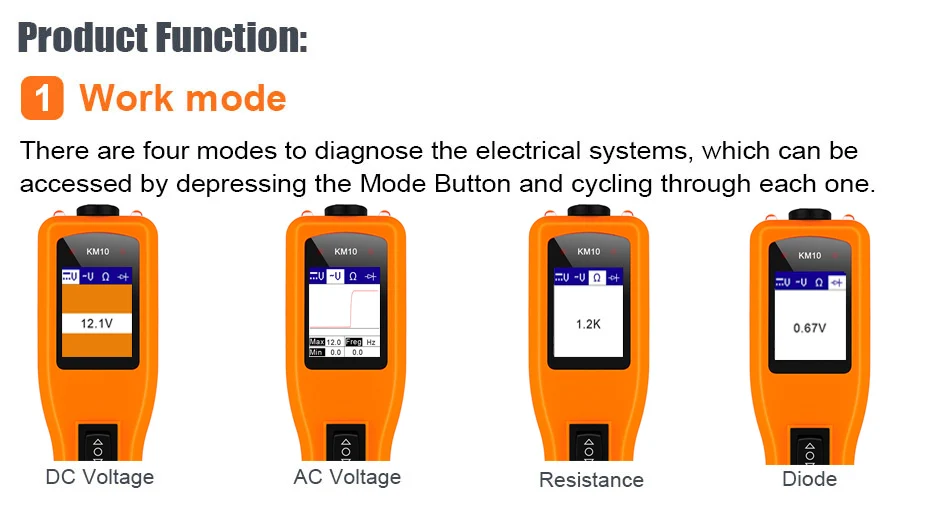

Work mode
There are four modes to diagnose the electrical systems, which can be accessed by depressing the Model Button and cycling through each one. DC Voltage AC Voltage Resistance Diode
Voltage&Polarity Testing
Circuit Continuity Testing in Resistance mode
While the tool is in Resistance mode , using the probe tip with chases is ground or the auxiliary ground lead, continuity can be tested on wires and components attached or disconnected from the vehicle's electrical system, When the probe tip is contacting a ground, the LCD will indicate "0.0Ω" and green LED will be on , A beep tone will sound.
Activating Components in Your Hand
Activating Components in The Vehicle
Testing Trailer Lights and Connections
Signal Circuit Testing
For example , you suspect there is a problem with your M.A.P ? sensor circuit, then follow the procedure involved with testing this sensor. *Set the tool in AC Voltage mode, using the probe tip with chassis ground or the auxiliary ground lead. *Connect vacuum pump to MAP sensor *Connect the probe tip to the MAP sensor , Positive terminal and observe the LCD readings which should be a sine wave in normal condition, *Apply vacuum *Release vacuum and observe the LCD readings
KM10 with Case and Accessories:
1. The Ultimate in Circuit Testing
2. KM10 Circuit tester with the ability to supply Power or Ground with an indicator tone and bright-white LED headlamps.
3. Features Digital Voltmeter, Min/Max, Audible Circuit Monitoring, 4mm Standard Banana Jack and Auxiliary Ground for component testing.
4. Includes Case and extension Lead cable for 12 Volt Power Port Adapter.
5.External Power: 12.0 or 24.0 V power provided via vehicle battery.
6.Display: TFT color display (160 x 128 dpi).
1 × PowerScan KM10
1 × Rugged Blow Molded Case
1 × 20ft. Extension Cable
1 × Probe
1 × Battery Hookup Clips
1 × Cigarette Lighter Adapter
