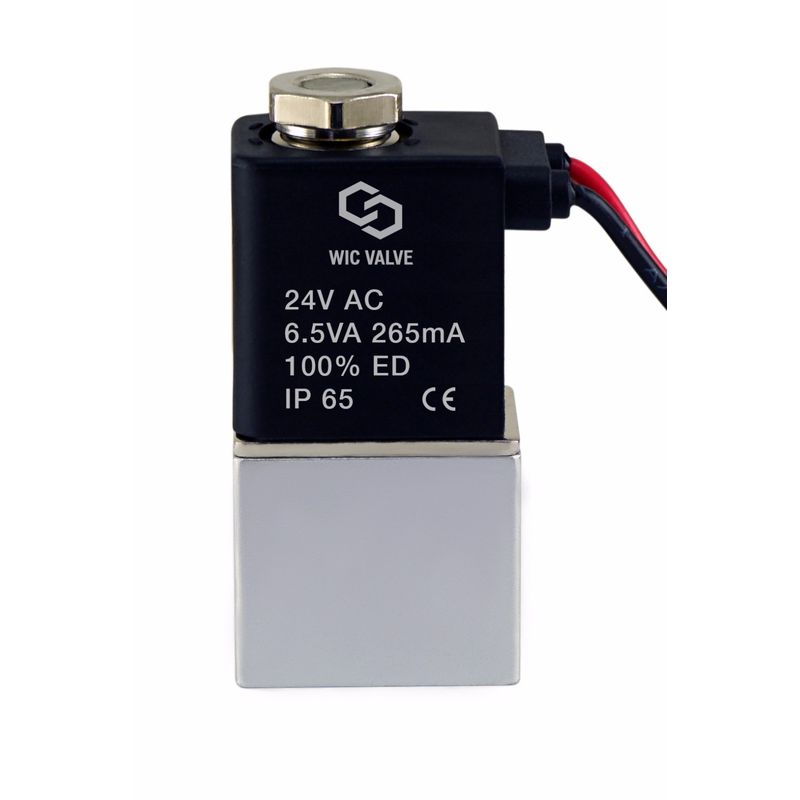

1/4" Inch Direct Acting Fast Response Electric Solenoid Process Valve 24VAC
WIC Valve 2ACK series 2-way normally closed solenoid valve is to control On/Off of air and inert gas. This solenoid valve has one 1/4" inch NPT inlet and one 1/4" inch NPT outlet port. Valve stays close when the coil is de-energized, and it opens when energized. This valve has two holes in the bottom and can be mounted in any position. 2ACK Series solenoid valve comes with a ED 100% coil which suitable to operate in continuous service and constant energized. 2ACK Series solenoid valve is a Zero differential solenoid valve which can be operated at 0 PSI (Vacuum).
2ACK Series Fast Response Electric Solenoid Valve Specification:
Model Number: 2ACK-1/4-24VAC-G
Valve Type: 2 Way Normally Closed (Valve opens with energized)
Service Media: Air, Gas, Liquid, Water
Operation Model: Direct Acting
Flow Model: Uni-Directional
Flow Rate: 0.23Cv (Fluid Flow), 22 SCFM at 100 PSI (Air Flow)
Response Time: Less than 20 ms
Body Material: Anodized Aluminum
Seal Material: NBR (Buna N)
Armature Tube Material: Brass
Plunger & Spring Material: Stainless Steel
Coil Certification: CE Certification
Coil Power: 6.5VA
Coil Class: F Class IP 65 (CE Certification)
Coil Duty: 100% ED (Continuous Duty)
Operating Pressure: Vacuum to 115 PSI
Operating Temperature: -5 to 80 °C
Port Size: 1/4" Inch NPT Female Port
Coil Voltage: 24V AC
Voltage Tolerances: DC: +10% –5% ; AC: +10% -15%
Electrical Connection: Grommet Coil with 12" Lead Wire
2ACK Series Fast Response Direct Acting Electric Solenoid Valve Components:
2ACK Series Electric Solenoid Valve Dimensions (Unit=mm):
| Model | Port (NPT) | Flow Rate (Cv) | Orifice Size (mm) | Length | Width | Height |
| 2ACK-1/8 | 1/8" | 0.23 Cv | 2 | 30 | 22 | 66 |
| 2ACK-1/4 | 1/4" | 0.23 Cv | 2 | 30 | 22 | 66 |
