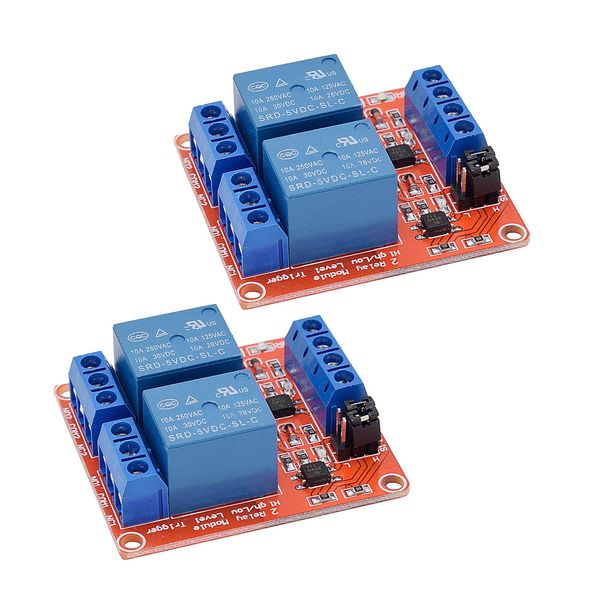

[2-Pack] DC 5V Relay Module 2-Channel Relay Switch with Optocoupler Isolation High/Low Level Trigger

Brand: Valefod Sold By: TopSelected
$34.45 In Stock
Ships from United Kingdom Arrives in 10-15 business days
Item can be returned in its original condition for a full refund or replacement within 30 days of receipt.
Delivery:
14
July2026
-
21
July2026
delivery Delivery Guarantee arrow
check$5 Credit If Delayed
checkFull Refund If Item Is Damaged
check15-Day Full Refund If No Updates
check30-Day Full Refund If Not Delivered
[2-Pack] DC 5V Relay Module 2-Channel Relay Switch with Optocoupler Isolation High/Low Level Trigger

[2-Pack] DC 5V Relay Module 2-Channel Relay Swi...

$34.45

Product Details
  • 【Control Devices】The 2-channel relay module uses genuine high quality DC5V relay and SMD opto-isolator supporting high/low level trigger, widely apply to control various AC/DC appliances, and other devices with large current.
  • 【Load Range】NO(Normally open) maximum load < AC 250V/10A, < DC 30V/10A. Trigger current of opto-isolator: 5mA.
  • 【Fault-tolerant Design】The relay will not operate even if the control line is disconnected.
  • 【Universal Interface】Equipped with screwed terminal plate and fixed bolt holes(diameter: 3.1 mm) on both sides for easy installation.
  • 【High Compatibility】The relay module can be controlled directly by 5V logic signals from microcontroller(8051, AVR, PIC, DSP, ARM, Pi, MSP430, TTL logic etc).

  • Manufacturer: Valefod
  • Part Number: VA-0186-8
  • Style: 2CH-5V-2

Specifications:
- Relay Type: 5V 2-Channel
- TTL gate circuit
- Quiescent Current: 5mA
- Maximum Current: 190mA
- Trigger Current: 3 - 5mA
- Trigger Voltage(LOW): 0 - 1.5V
- Trigger Voltage(HIGH): 2.5 - 5V
- NO Maximum Load: AC 250V, 10A or DC 30V, 10A
- Power Indicator: Green
- Relay Status Indicator: Red
- Size(L x W x H): 51*46*19mm
- Weight: 30g

How high/low level triggers selection terminal
S1 is the high/low level trigger selection terminal of channel-1 relay
S2 is the high/low level trigger selection terminal of channel-2 relay
High level trigger acts when jumper wire (COM) and high pin are short connected
Low level trigger acts when jumper wire (COM) and low pin are short connected

Input interface:
DC+ : positive pole of power supply (VCC, voltage=5V)
DC- : negative pole of power supply(GND)
IN1 : channel-1 signal trigger to control relay pickup by high/low level trigger
IN2 : channel-2 signal trigger to control relay pickup by high/low level trigger

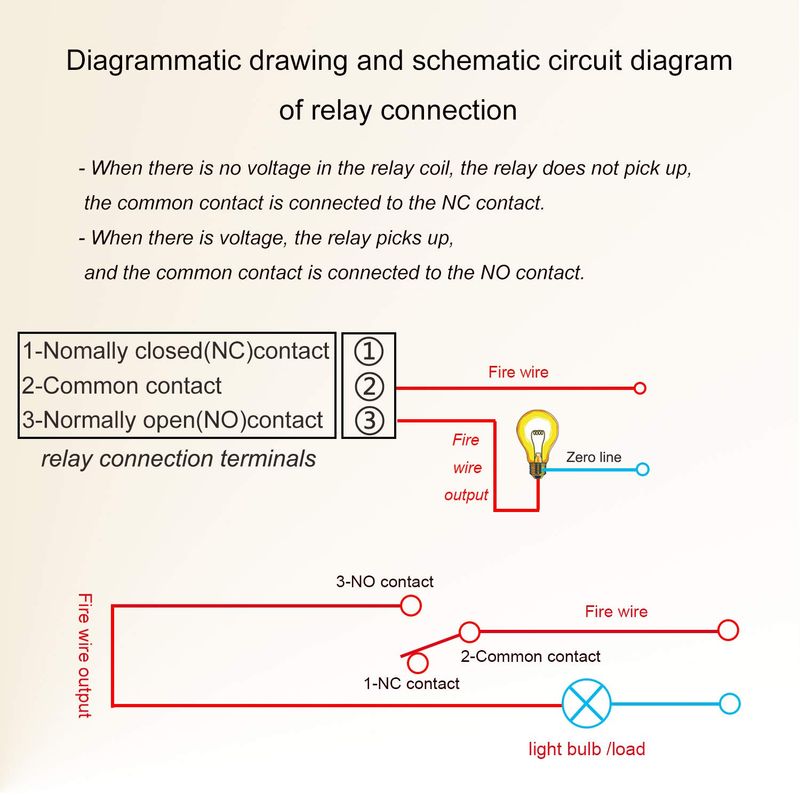

Output interface:
NO1 : channel-1 relay connection of normally open state(the relay switch is dangling before pickup, the switch will connect with "COM1" after pickup)
COM1 : common interface of channel-1 relay switch
NC1 : channel-1 relay connection of normally closed state(the relay switch is connected with "COM1" before pickup, the switch will be dangling after pickup)

NO2 : channel-2 relay connection of normally open state(the relay switch is dangling before pickup, the switch will connect with "COM2" after pickup)
COM2 : common interface of channel-2 relay switch
NC2 : channel-2 relay connection of normally closed state(the relay switch is connected with "COM2" before pickup, the switch will be dangling after pickup)

Package List:
2x 5V 2-Channel Relay Module
