3 Phase Rotation Meter, Phase Meter Indicators, AC 70-1000V Non Phase Sequence Detector Magnetic Base Phase Meter, ETCR1000C
- 【Versatile Functionality】 Our phase rotation meter offers an array of useful features, including phase sequence detection, live line check, simple power check, live wire identification, phase loss judgment, wire break position search, DC line break point detection, and line maintenance. Experience the convenience of multiple functions in one device.
- 【Easy and Measurement】 With our clamp-type non- inductive measurement, there's no need to open wires or touch exposed high-voltage fire wires. Simply the three super-inductive high-insulation clamps onto the insulation skin of the three-phase live wire for quick and accurate detection. Stay while getting accurate readings.
- 【Boost Productivity with Non- Inspection】 Our 3 phase rotation meter offers non- inspection, providing you with a and efficient way to increase productivity. No need to physically touch the wires, saving time and eliminating potential risks.
- 【Clear Indicator】 Easily identify the phase sequence of a three-phase power supply with the dynamic sound and light indicator. The positive or negative phase is indicated clearly at a , allowing for hassle power management.
- 【Convenient and Design】 The bottom plate of our phase rotation meter is equipped with four magnets, allowing for easy attachment to the metal casing of equipment during testing. Enjoy the convenience and reliability of this design, ensuring seamless wherever you .
- Color: Black
- Manufacturer: SIXRUN
- Model Number: SIXRUNs6h9zackr5
- Part Number: SIXRUNs6h9zackr5
Specification:
Model ETCR1000C
Functions Phase detection (Positive phase, reverse phase and phaseloss), Live wire examination, Simple Power detection, Breakpoint location and Line maintenance.
Power Supply DC 3V2*AA dry battery , Continuously working for 70 hours
AC Voltage Range(V) AC 70 - 1000V, 40/65Hz (Sine Continuous Input)
Clamp Wire Size External Diameter 1.6-16mm

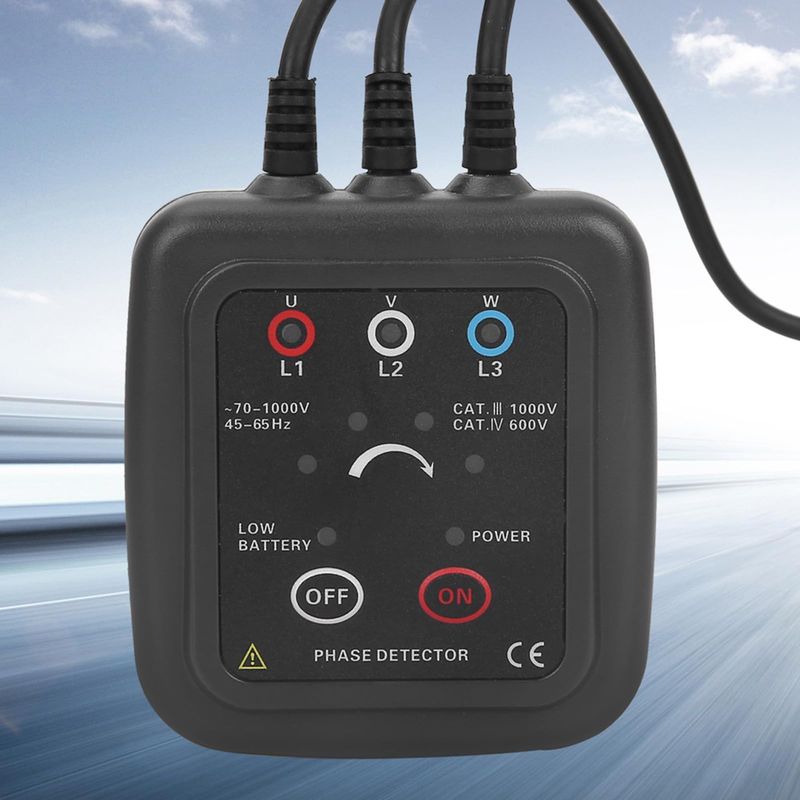

LED Display (Positive Phase Sequence) The four phase-sequence lamps light in order (clockwise). (Negative Phase Sequence) The four phase-sequence lamps light in order (counterclockwise). (Live Power)L1,L2,L3 lamp light up in the voltage setting range. (Phase Loss) L1 or L2 or L3 does not light. (Short Circuit)L1 or L2 or L3 does not light.
Buzzing (Positive phase) The instrument emits intermittent short beeps; (Reverse phase) The instrument emits a continuous long beep.
Power on indication light turns on; Low power, low battery light on
Magnetic force Four magnets on the back of the meter, which are attached to the distribution box and can withstand 800g quality.
Auto Power off After 5 minutes, the meter automatically cut off power supply.
Meter Dimension Width, height, thickness 70mm*75mm*30mm
Clamp Length 0.6m
Weight 317g
Working Temperature and Humidity -10℃-55℃; below 80%
Storage Temperature and Humidity -20℃-60℃; below 90%
Maximum Measured Voltage AC 1000V
Dielectric Strength 5.4kVrms
Maximum rated Power 100mVA
Safety Provisions EN61010-1: 2001, EN61010-031: 2002, Pollution lev 2, CAT 3 (600V), Transient over-voltage 6000V

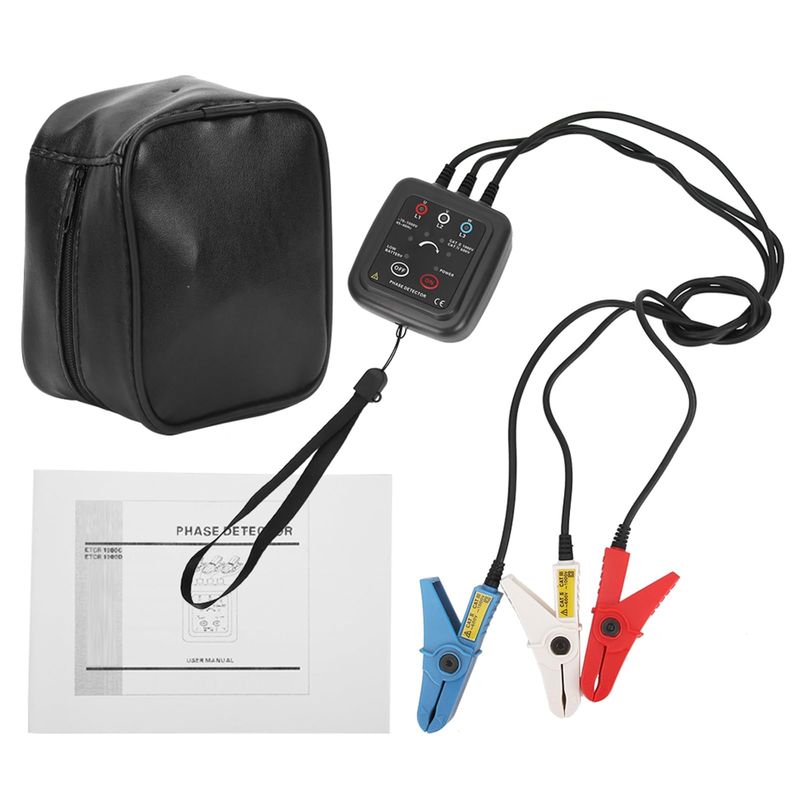

Package list:
1 * Phase Rotation Meter

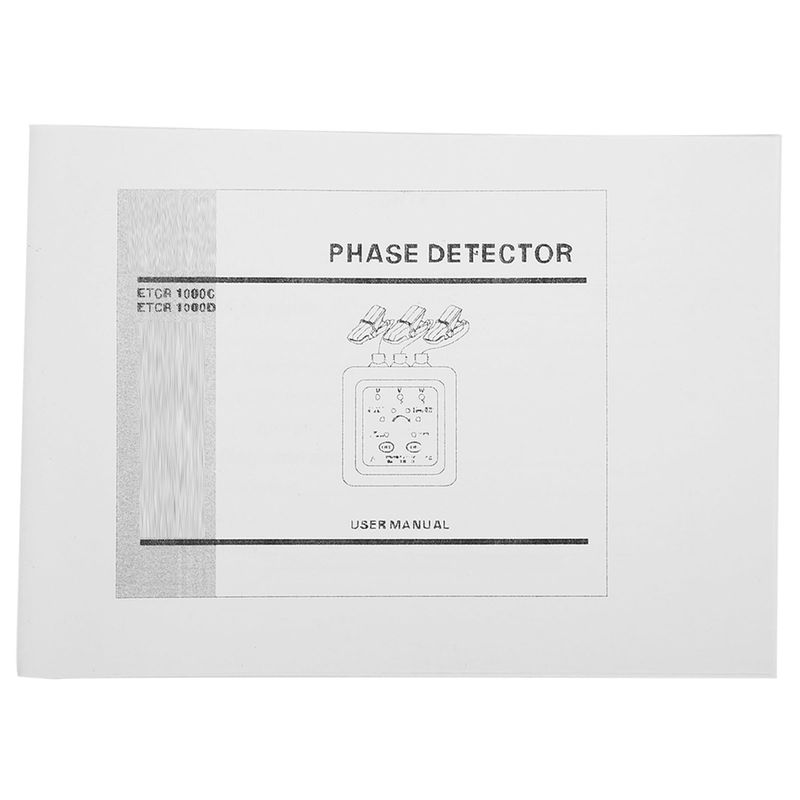

1 * User Manual
Note:
The actual product color may deviate from the photo due to light.
There may be a slight deviation in the measurement of product.
