Item description from the seller:
Specifications:
- Material: Hardened Steel
- Model: K11-100
- Jaw: 3 Jaw
- High Precision: ≤0.002" / 0.05 mm
- Mounting Thread: 3-M8
- Outside Diameter: 3.94" / 100 mm
- Bolt Circle Diameter: 3.31" / 84 mm
- Center Thru Hole Diameter: 0.866" / 22 mm
- Chuck Body Thickness: 2.16" / 55 mm
- Mounting Thread: 3-M8
- Internal Jaw Clamping Range (A-A1): 0.08"-1.18" / 2-30 mm
- Internal Jaw Jamming Range (B-B1): 1.18"-3.54" / 30-90 mm
- External Jaw Clamping Range (C-C1):1.18"-3.15" / 30-80 mm
- Accuracy: 0.002" / 0.051 mm
- Color: Silver
- Item Weight: 7 lbs / 3.18 kg
Feature:
- Hardened Steel
- All guide rails and bearing surfaces of this jaw self-centering keyed chuck are precision-machined and have passed the HRC 58-62 test.
- Self Centering
- Because the pitch of the flat rectangular thread is equal, the three claws have the same movement distance, which has the function of automatic centering.
- Precision Bevel Gear
- When the bevel gear is pulled with a wrench, the thread metal lathe chuck starts to operate, and the bevel gear controls the precision of the work-piece held by the chuck.
- Large Clamping Range
- The chuck has two sets of internal and external jaws. This chuck has a large clamping range and is suitable for clamping a variety of industrial parts.
- Easy Installation
- This mini lathe chuck is composed of a chuck body, a movable chuck, and a claw drive. Because the chuck is self-centering and requires no calibration, installation is simple and quick.
- Wide Application
- The 3 jaw lathe chuck is suitable for a variety of general-purpose lathes, economical CNC lathes, grinding machines, milling machines, drilling machines, and machine tool accessories.
Product Description:
- This versatile chuck is made of high-quality hardened steel, compression resistance and has a long service life. It has two sets of jaws that can hold industrial parts in the range of 0.078" / 2 mm - 3.54" / 90 mm. Of course, this chuck self-centering function can save the trouble of repeated calibration during installation. This chuck is easy to install and easy to operate. It is suitable for all kinds of general-purpose lathes, economical CNC lathes, grinding machines, milling machines, drilling machines, and machine tool accessories.
- Quality Material
- High Precision
- 2 Sets Of Jaws
- Fast Clamping Speed
- High Adaptability
Package Including:
- 1 x 4" / 100 mm Lathe Chuck Body
- 3 x Internal Jaws
- 3 x External Jaws
- 3 x Mounting Bolts

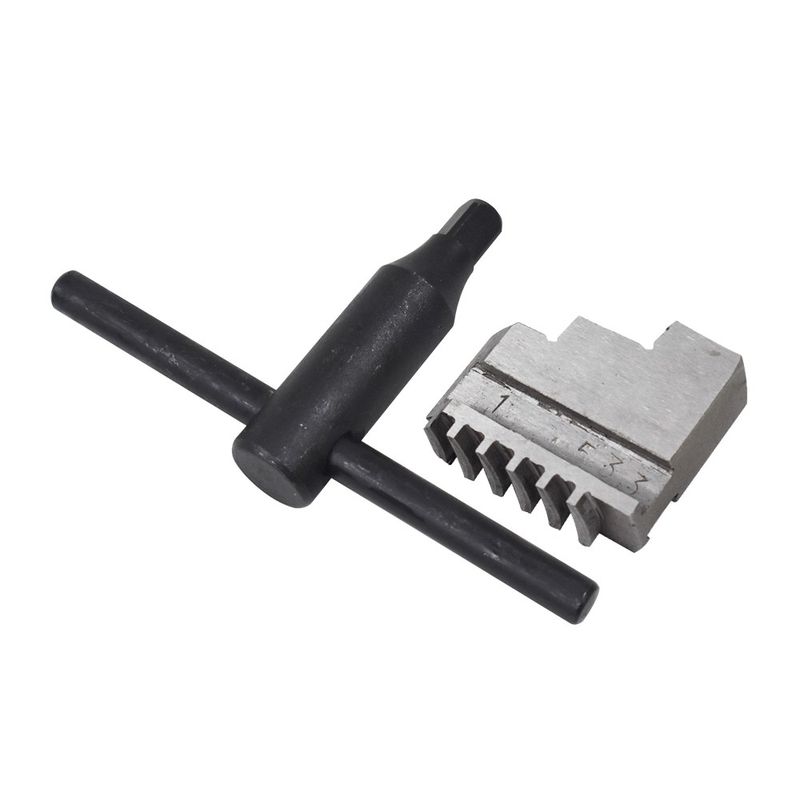

- 1 x Chuck Key
| Item Specifics | |
|---|---|
| Brand | ALL-CARB |
| MPN | Does Not Apply |
| Material | Hardened Steel |
| Package Content 1 | 1 x 100 mm / 4 Inch Lathe Chuck Body |
| Package Content 2 | 3 x External Jaws |
| Package Content 3 | 3 x External Jaws |
| Package Content 4 | 3 x Mounting Bolts |
| Package Content 5 | 1 x Chuck Key |
| Jaw | 3 Jaw |
| Type | collect chucks |
| Center Thru Hole Diameter | 0.866" / 22 mm |
| Bolt Circle Diameter | 3.31" / 84 mm |
| Warranty | 1 Year |
