5 Axis Control Board, 5V Level Sensitive CNC Stepper Motor Driver Controller Board with Disc for Carving Engraving Milling Machine
- BROAD COMPATIBILITY: The control board set boasts extensive compatibility, it supports for Windows XP, for WIN7, for WIN8, for WIN10, as well as tablet computers and 64 bit systems. It provides an ideal solution for various operating environments.

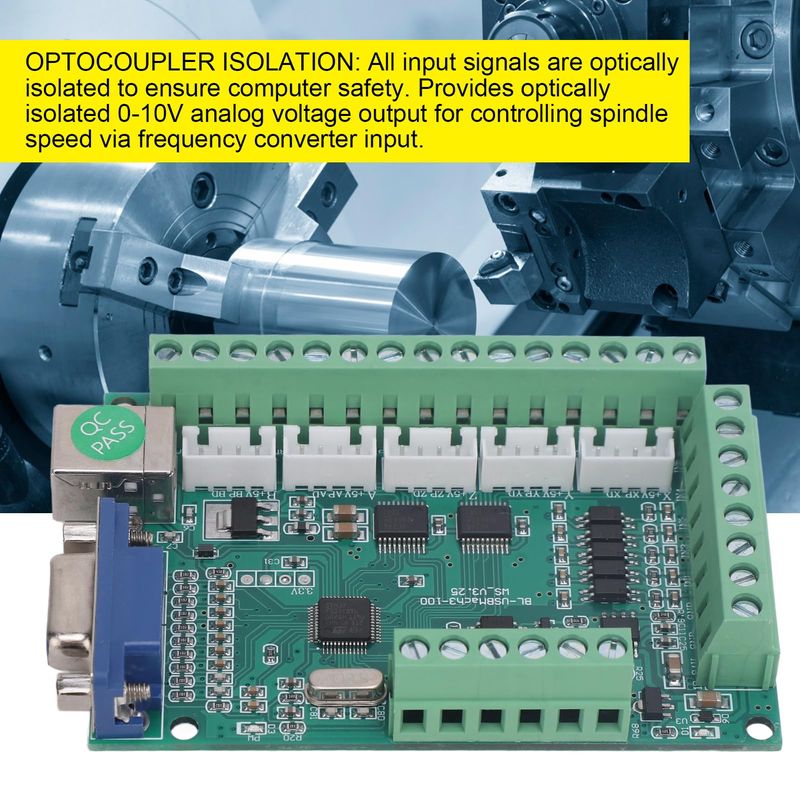

- OPTOCOUPLER ISOLATION: All input are optically isolated to ensure computer safety. Provides optically isolated 0‑10V analog voltage output for controlling spindle speed via frequency converter input.
- EASY CONNECTION: Can connect common anode or common cathode input, 5V level, optocoupler input stepper motor driver. Comes with 5 axis interface cable socket (HX2.54) for easy connection to stepper motor drivers.
- VERSATILE CONTROLS: Offers optically isolated PWM output (5V level) for controlling other PWM controlled spindle speed adjusters. Provides 4 output ports (5V level) for connecting relay modules to control water cooling, spray, etc.
- PROTECTIVE FUNCTION: Armed with an external wide voltage input of 12‑24V, the card set includes a reverse polarity guard feature. This precautionary measure ensures that the card set is safe from potential electrical mishaps.
- Manufacturer: Fabater
- Model Number: Fabaterh4qabwydtn
- Part Number: Fabaterh4qabwydtn
1. BROAD COMPATIBILITY: The control board set boasts extensive compatibility, it supports for Windows XP, for WIN7, for WIN8, for WIN10, as well as tablet computers and 64 bit systems. It provides an ideal solution for various operating environments.
2. OPTOCOUPLER ISOLATION: All input are optically isolated to ensure computer safety. Provides optically isolated 0‑10V analog voltage output for controlling spindle speed via frequency converter input.
3. VERSATILE CONTROLS: Offers optically isolated PWM output (5V level) for controlling other PWM controlled spindle speed adjusters. Provides 4 output ports (5V level) for connecting relay modules to control water cooling, spray, etc.
4. EASY CONNECTION: Can connect common anode or common cathode input, 5V level, optocoupler input stepper motor driver. Comes with 5 axis interface cable socket (HX2.54) for easy connection to stepper motor drivers.
5. PROTECTIVE FUNCTION: Armed with an external wide voltage input of 12‑24V, the card set includes a reverse polarity guard feature. This precautionary measure ensures that the card set is safe from potential electrical mishaps.
Spec:
Item Type: 5 Axis Control Card Kit
Material: ABS, component
Voltage: Approx. 12V-24V
Microcontroller: 32 bit STM
Weight: Approx. 199.00g / 7.02oz
How to Use:
1. The inverter does not need to be connected to the interface board first.
2. Short the FWD and COM of the inverter, and short the 10V and VI of the inverter. Connect the spindle. (Of course, it is best to connect the potentiometer to the 10V, VI, GND of the inverter according to the diagram).
3. Power on, if the frequency converter can run at the highest speed and the spindle rotates normally, it basically indicates that the settings are correct. (Speed can be adjusted if using a potentiometer).
PackageList:

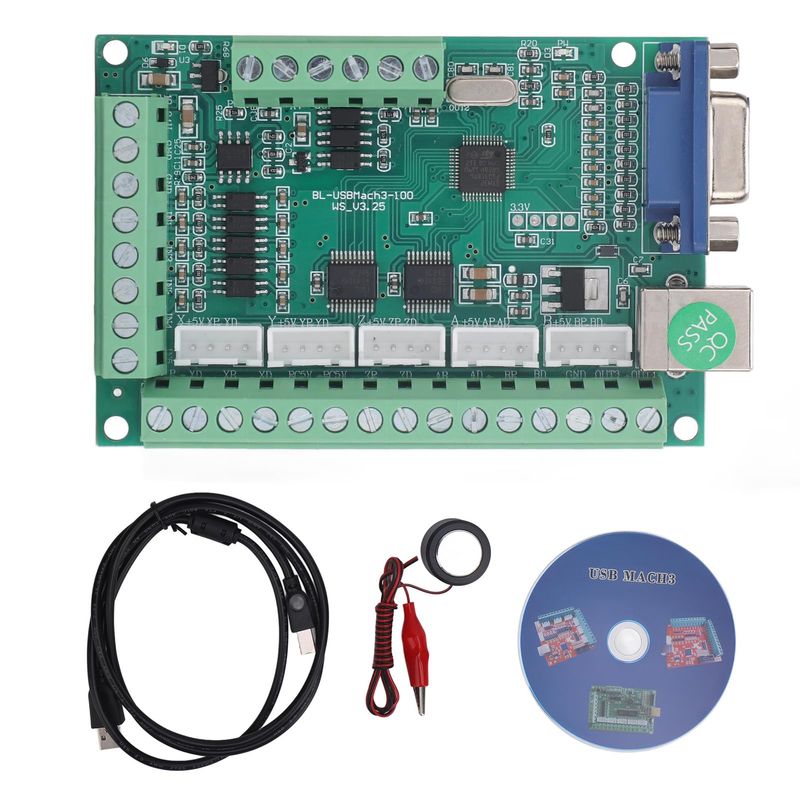

1 x Mainboard
1 x Disc
1 x Cable
1 x Accessory
