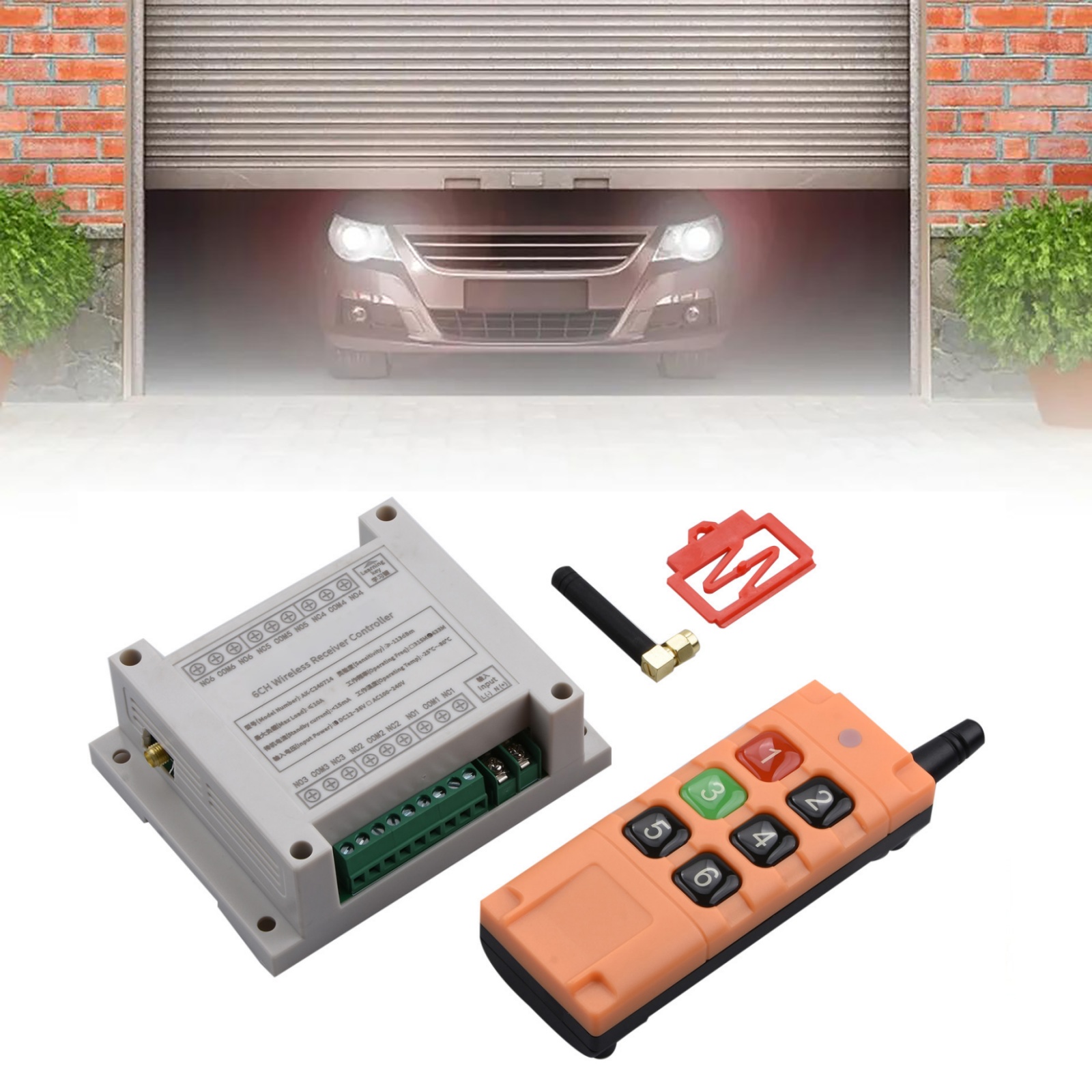

6 Channel 10A Relay Receiver Wireless Remote Control RF Switch -105dbm new
Wireless Remote Switch, Remote Control Switch Multifunctional 6ch Intelligent Control For Industry.
This Kind Of Dc12v-36v Wide Voltage Two-Way Remote Control Switch, Switch Power Supply, A Professional Switching Power Supply Management Chip, Power Supply Voltage Stability, A Complete Solution Resistance Capacity Step-Down And Make The Power Supply Voltage Is Not Stable, Lead To The Entire Switch Unstable Phenomenon.

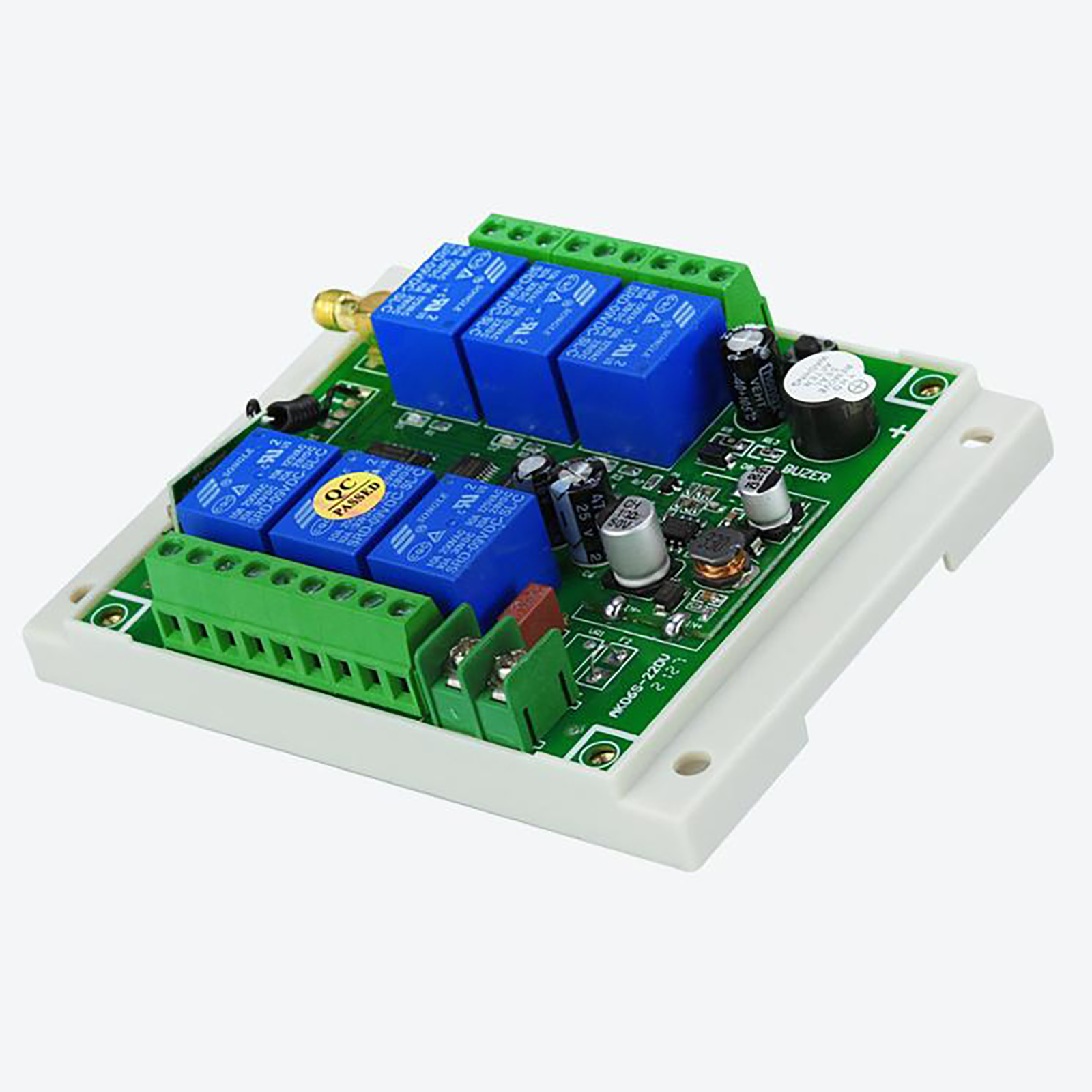

The Remote Control Switch Adopts 10 A Relay, Can Load A High-Power Electrical Appliances, Learning Microcontroller Decoding, Can Learn More Remote Control, Simple Operation Supporting Flexible; Toggle Switch Is Adopted To Improve The Switch Output Work Way, Dynamic, Self-Locking, Interlocking (Point) Can Be Arbitrary Choice Easy To Use, Another New Way Of Manual Work.
Apply To Multiple Areas A Variety Of Purposes; Reserved For The Output Data Bits Welding Plate, Can Receive Through Short Different Solder Joint Location Choice Of The Remote Control Buttons, Convenient Customer Supporting Various Remote Control That Oneself Like, To Avoid The Old Fixed Single Design Keys You Can Match The Embarrassment Of The Remote Control.

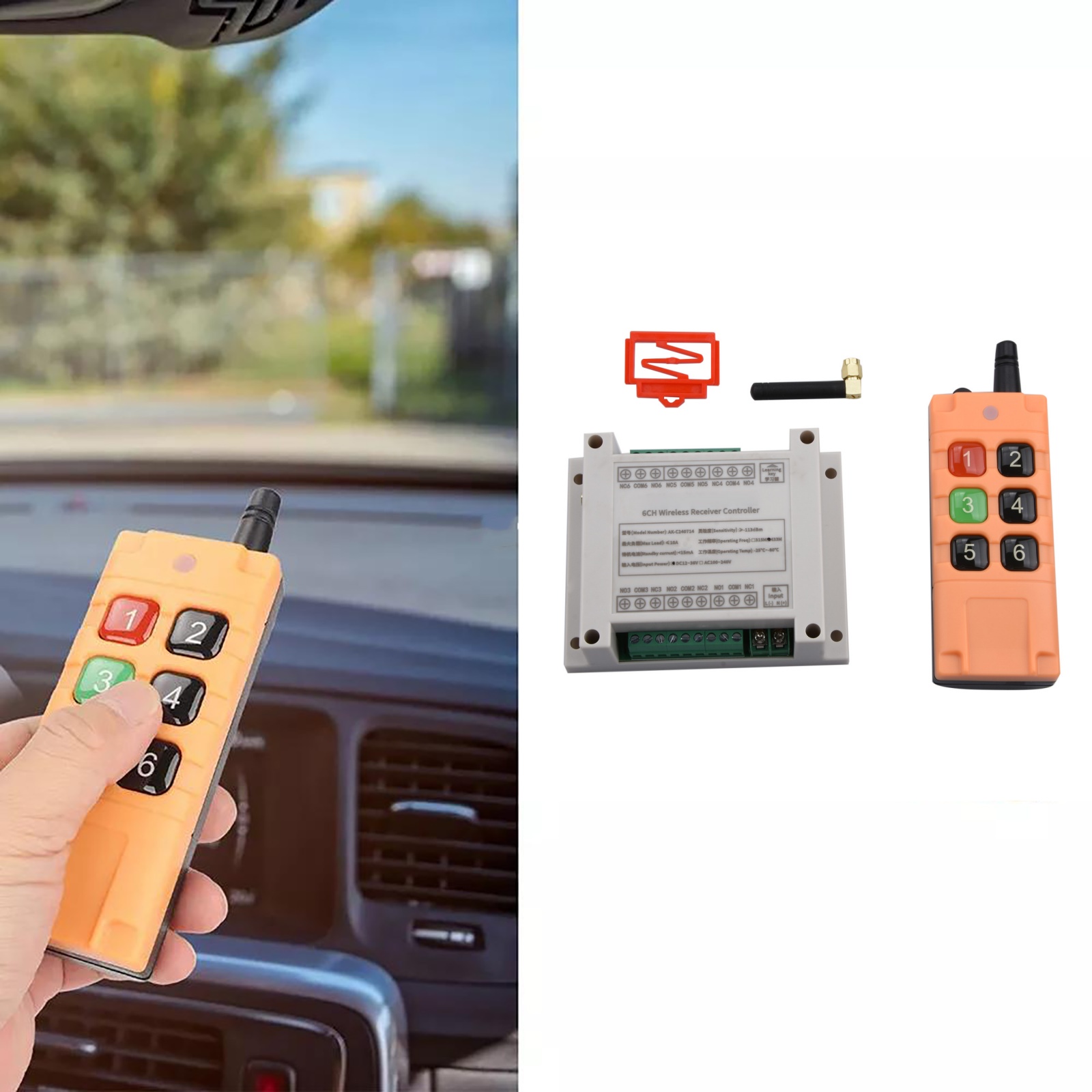

Mainly Used In Garage Door Control, Lighting Control, Electric Door, Remote Control Curtains, Lifting Equipment, Motor Control, Water Pump, Projection Screen Elevator Control And Security Industry And Other Fields, Is Easy To Install, Use The Advantages Of Simple And Safe And Reliable.
Specifications:
Working Voltage: 12v --36v DC
Remote Control Battery Specification: 1* 6f22 9v Battery(Battery Included)
Quiescent Current: Less Than 10ma
Working Current: 30ma (1 Relay)
Working Temperature: -20℃ - +70℃
Receiving Sensitivity: -105dbm
Operating Frequency: 433mhz
Transmitting Distance: 300m(Please Notice That Is The Ideal Distance Without Any Block And Signal Interfere, It Would Rise And Fall About 10%-90% With The Block And Signal Interference ).
The Way Of Output:
A. 1-6ch Momentary-----Press Transmitter Button'' 1'' To Learn
B. 1-6ch Latched----- Press Transmitter Button'' 2'' To Learn
C. 1-6ch Toggle-- -- Press Transmitter Button'' 3'' To Learn
D. 1-3ch Momentary, 4-6ch Toggle------Press Transmitter Button'' 4'' To Learn
E. 1-3ch Momentary, 4-6ch Latched------ Press Transmitter Button'' 5'' To Learn
F. 1-3ch Latched, 4-6ch Toggle------- Press Transmitter Button'' 6'' To Learn
Momentary: Press The Transmitter Button1, The Receiver Relay 1th Is On, Release Button 1; The Receiver Relay 1th Is Off, The Same As 2/3/4/5/6 Are Independent.
Toggle: Press Transmitter Button 1 For 1 Time, The Receiver Relay 1th Is On, Press Button 1 Again, The Receiver Relay 1th Is Off, The Same 2/3/4/5/6 Are Independent.
Latched:
Press Transmitter Button 1, The Receiver Relay 1th Is On, The Relay 2/3/4/5/6 Is Off.
Press Transmitter Button 2, The Receiver Relay 2th Is On, The Relay 1/3/4/5/6 Is Off.
Press Transmitter Button 3, The Receiver Relay 3th Is On, The Relay 1/2/4/5/6 Is Off
Press Transmitter Button 4, The Receiver Relay 4th Is On, The Relay 1/2/3/5/6 Is Off.
It Also Mean: Latched Only Can Keep 1ch On .And It Will Often Have 1ch Is On.

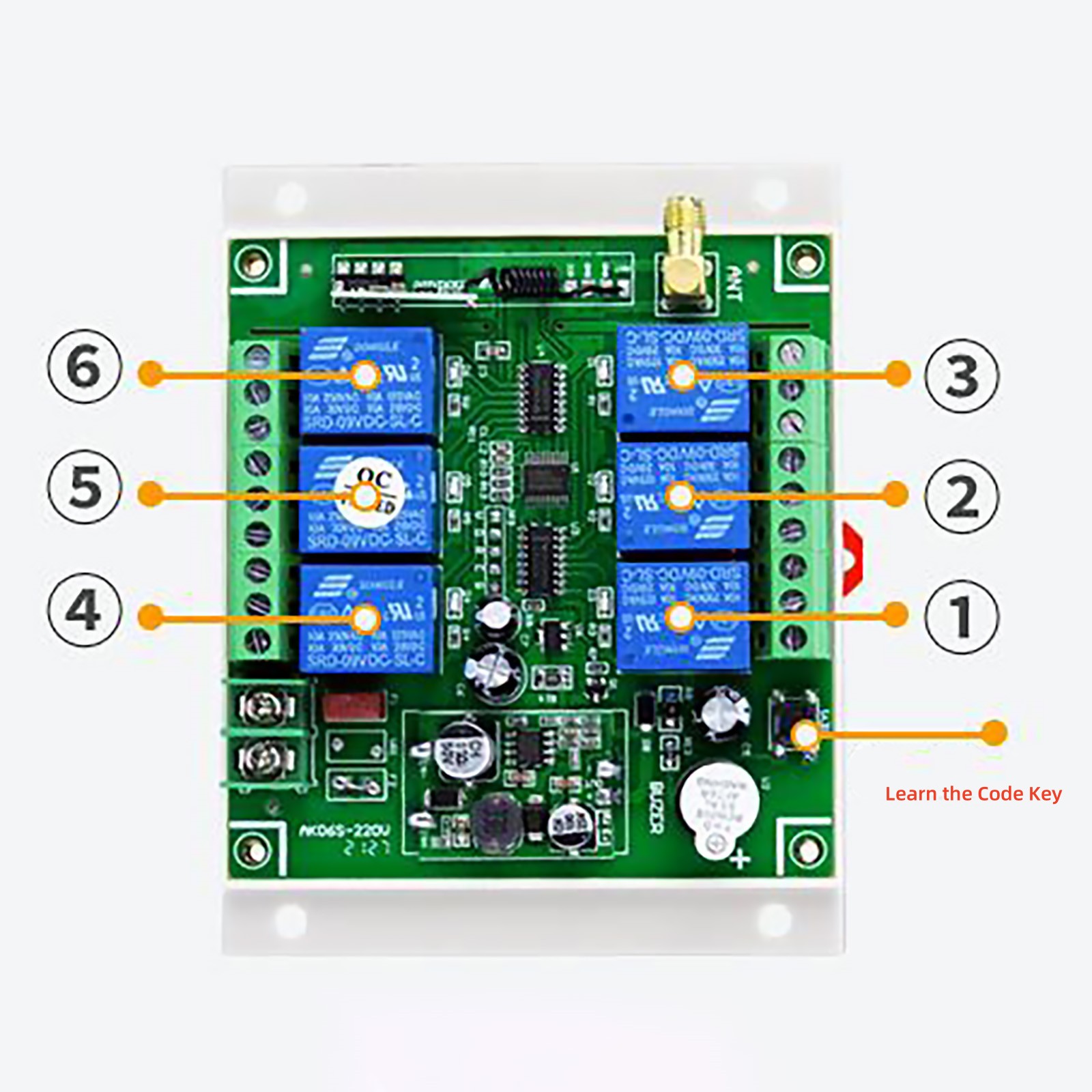

Learning Way And Steps:
1. Press The Learning Button Of The Receiver And Buzzer Keep Tweeting, Indicate Enter Into The Status Of Learning
2. Press The Relative Button Of The Transmitter To Learn Relative Output Way, Indicate Learning Success As The Buzzer Tweet'' Be Be Be'' 3 Sounds, And Then You Press The Transmitter Button You Can Hear The Relay Act Sound. The Receiver Automatically Exits Learning State If You Do Nothing In 32 Seconds.
3. Delete Memory Message (Must Clear The Code Before You Learn Different Button )
Keep Pressing The Learning Button Of The Receiver, The Buzzer Buzzer Tweet And'' Be Be Be Be'' (Please Do Not Wait For It Be For 6 Sounds) Then Release The Button, Indicate Success To Delete The Memory Message.

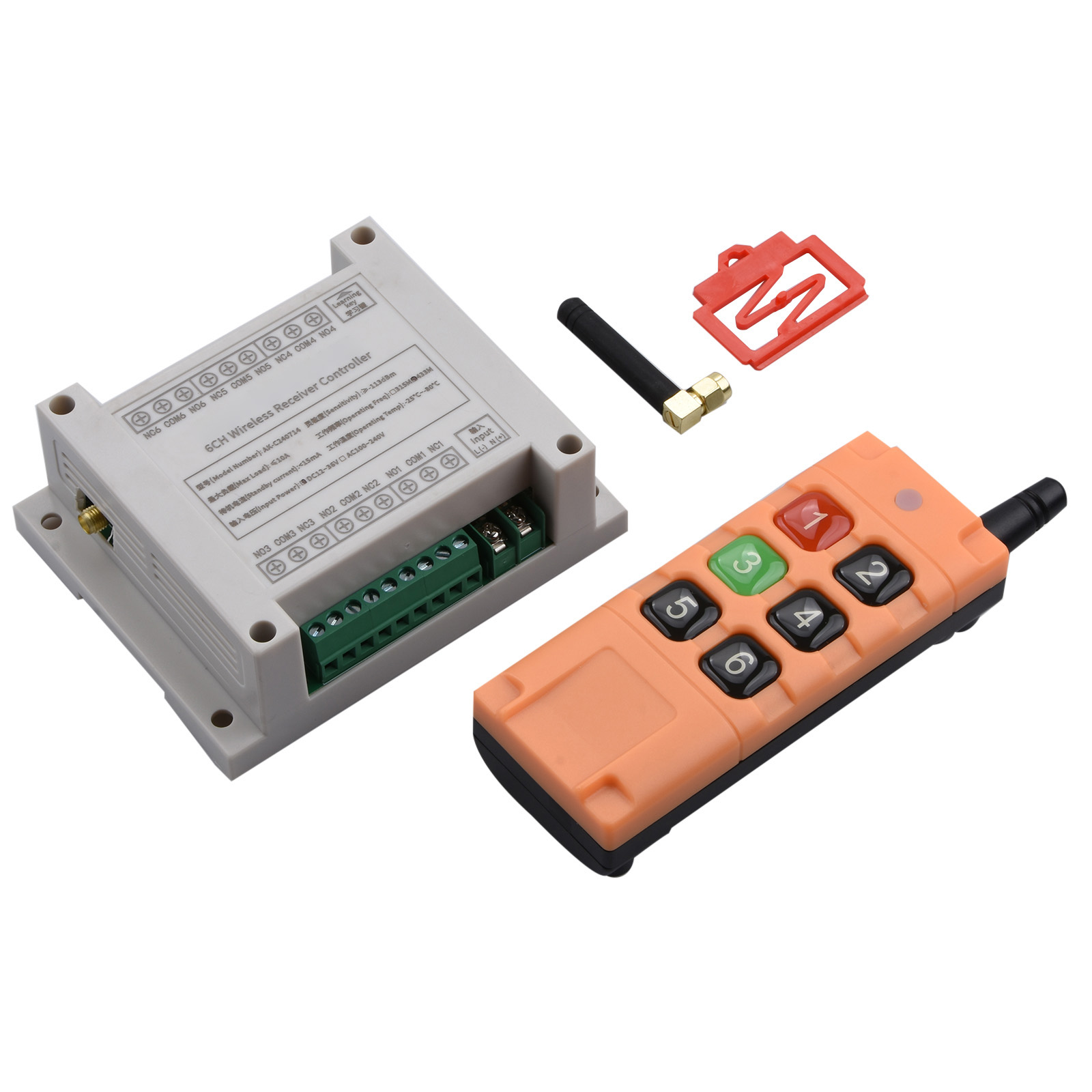

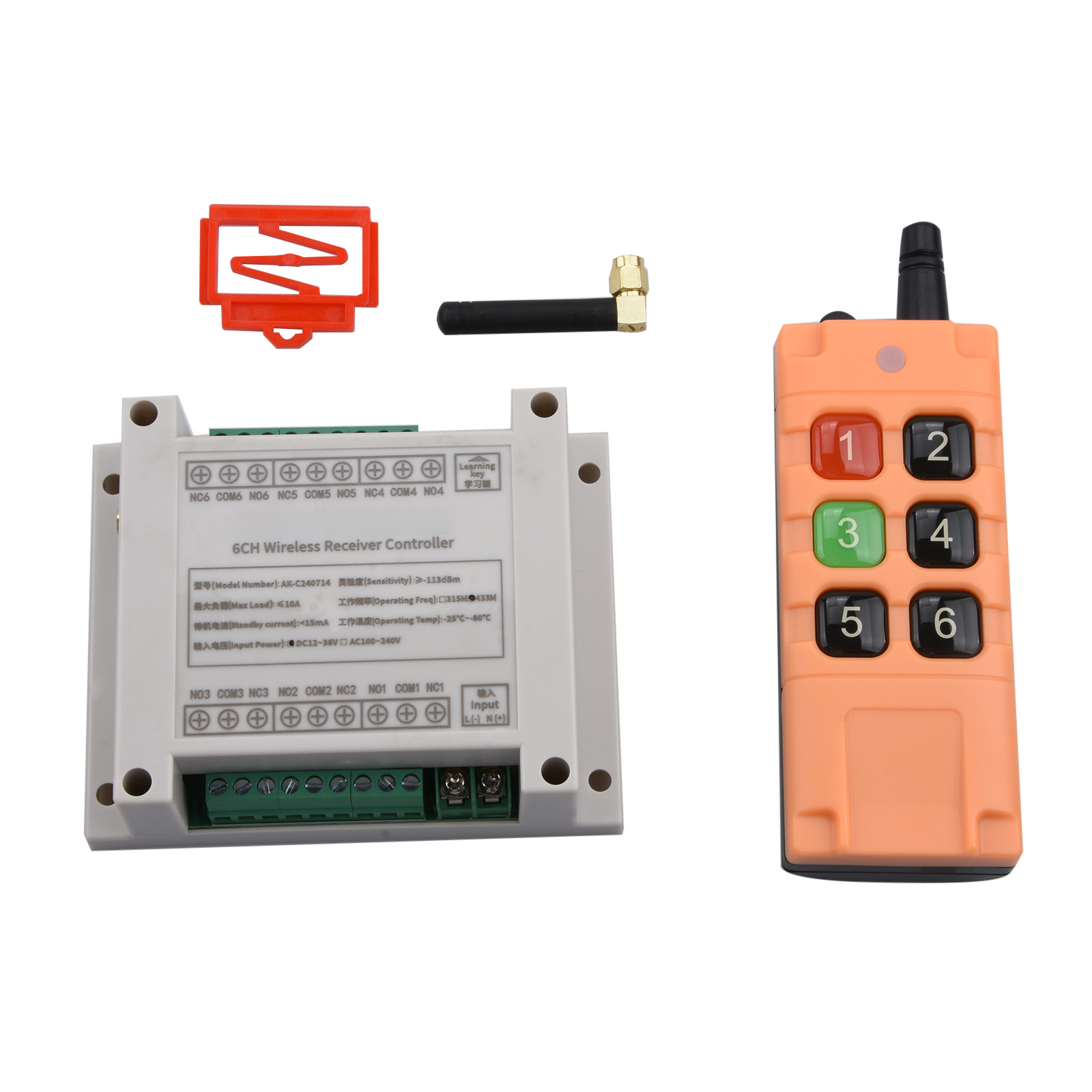

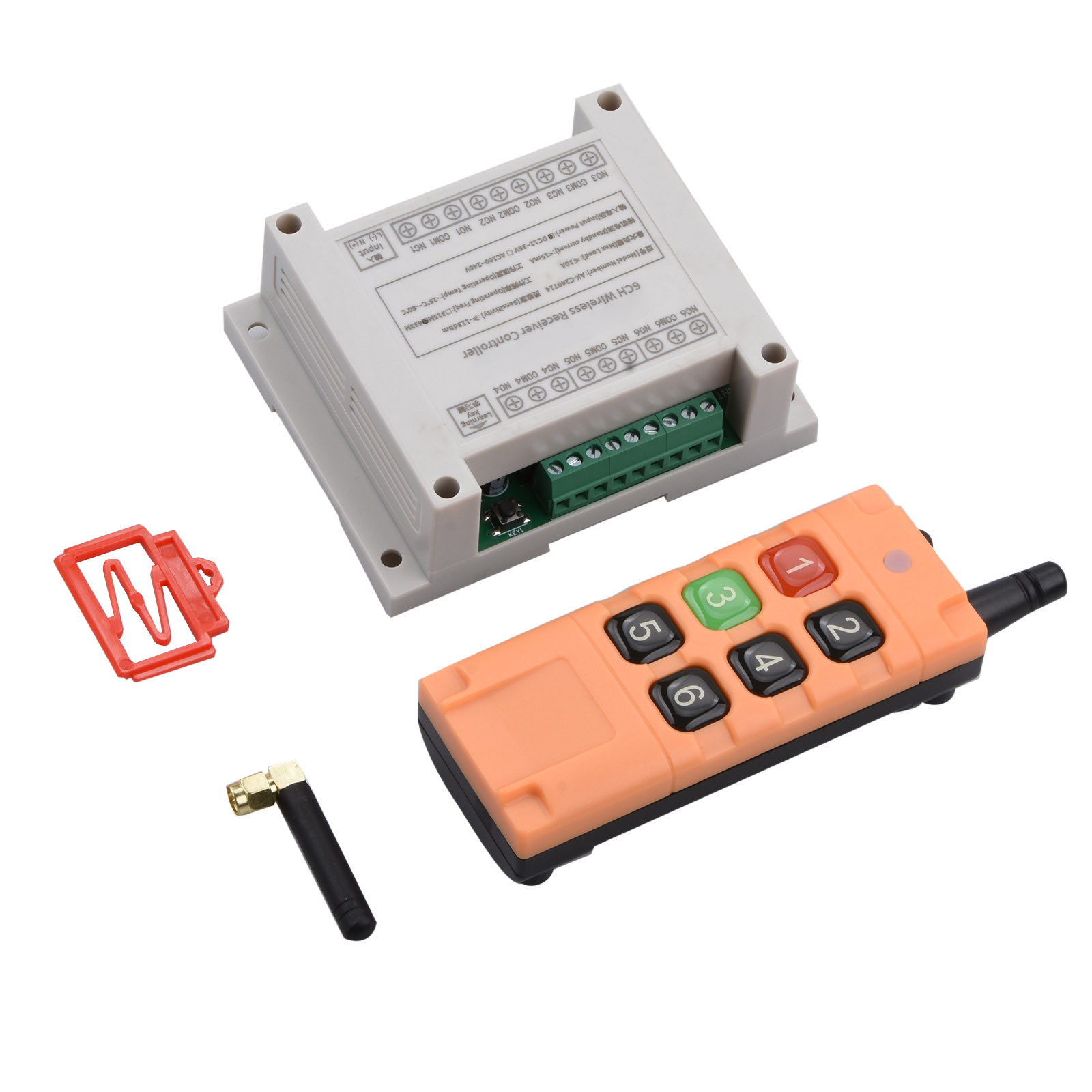

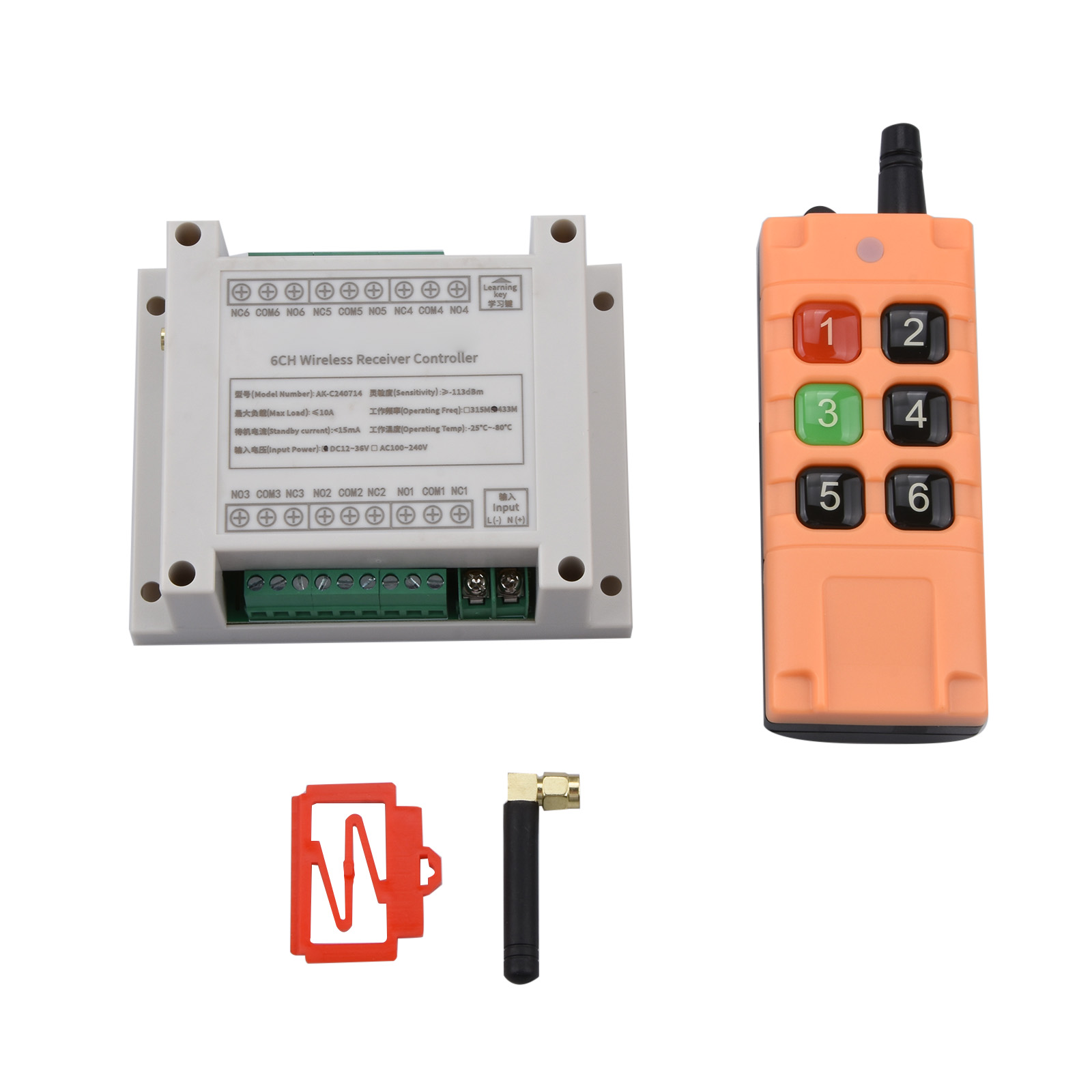

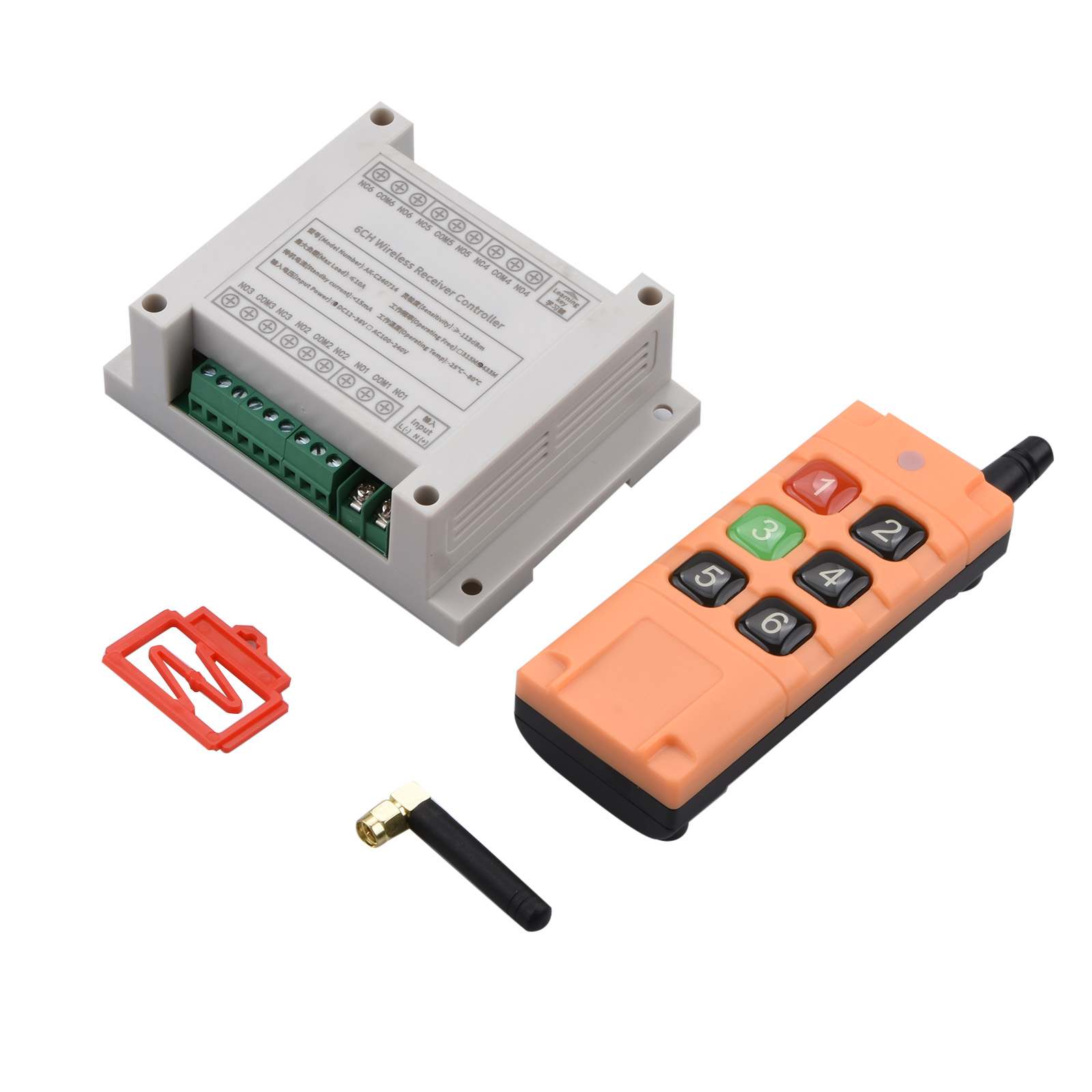

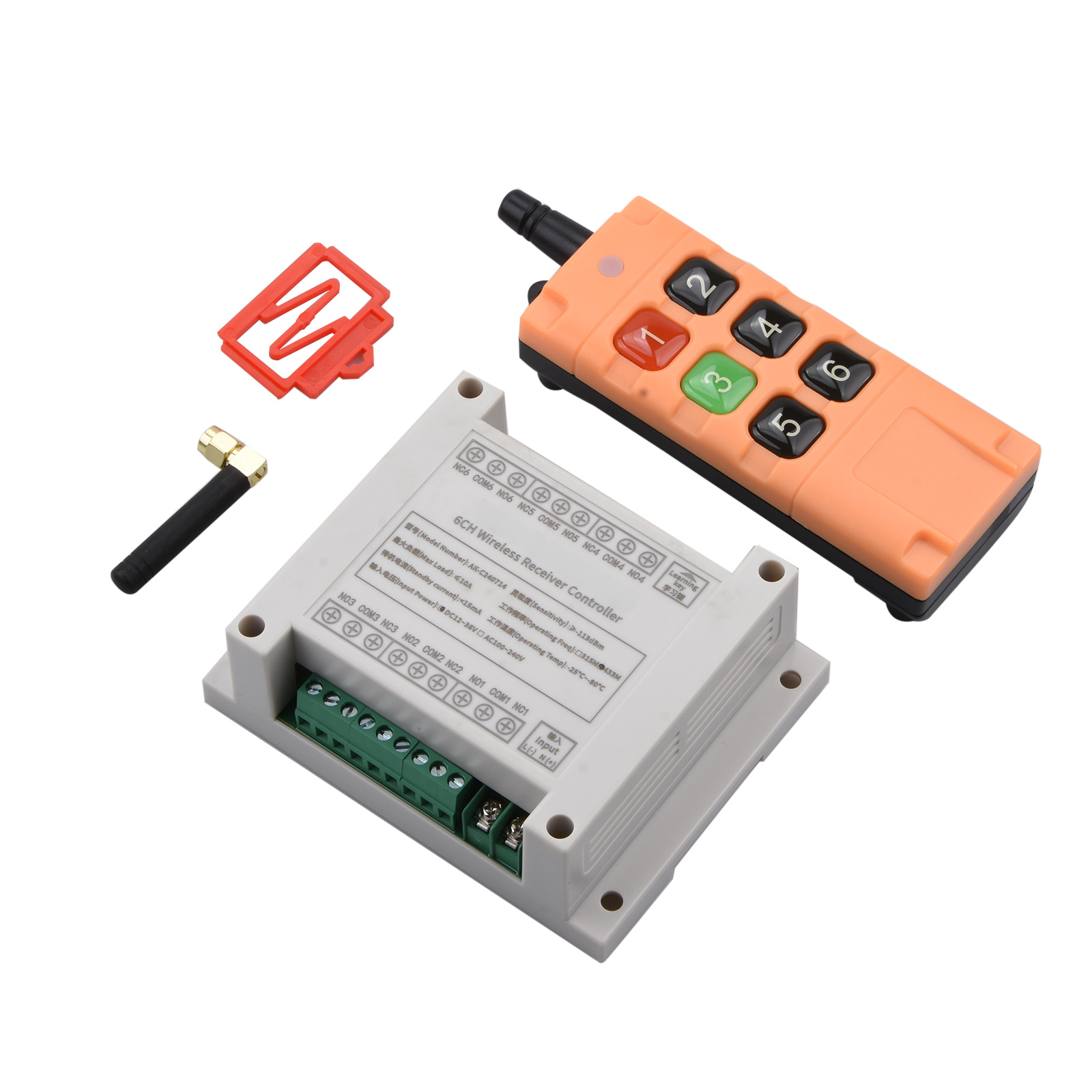

Package Included:

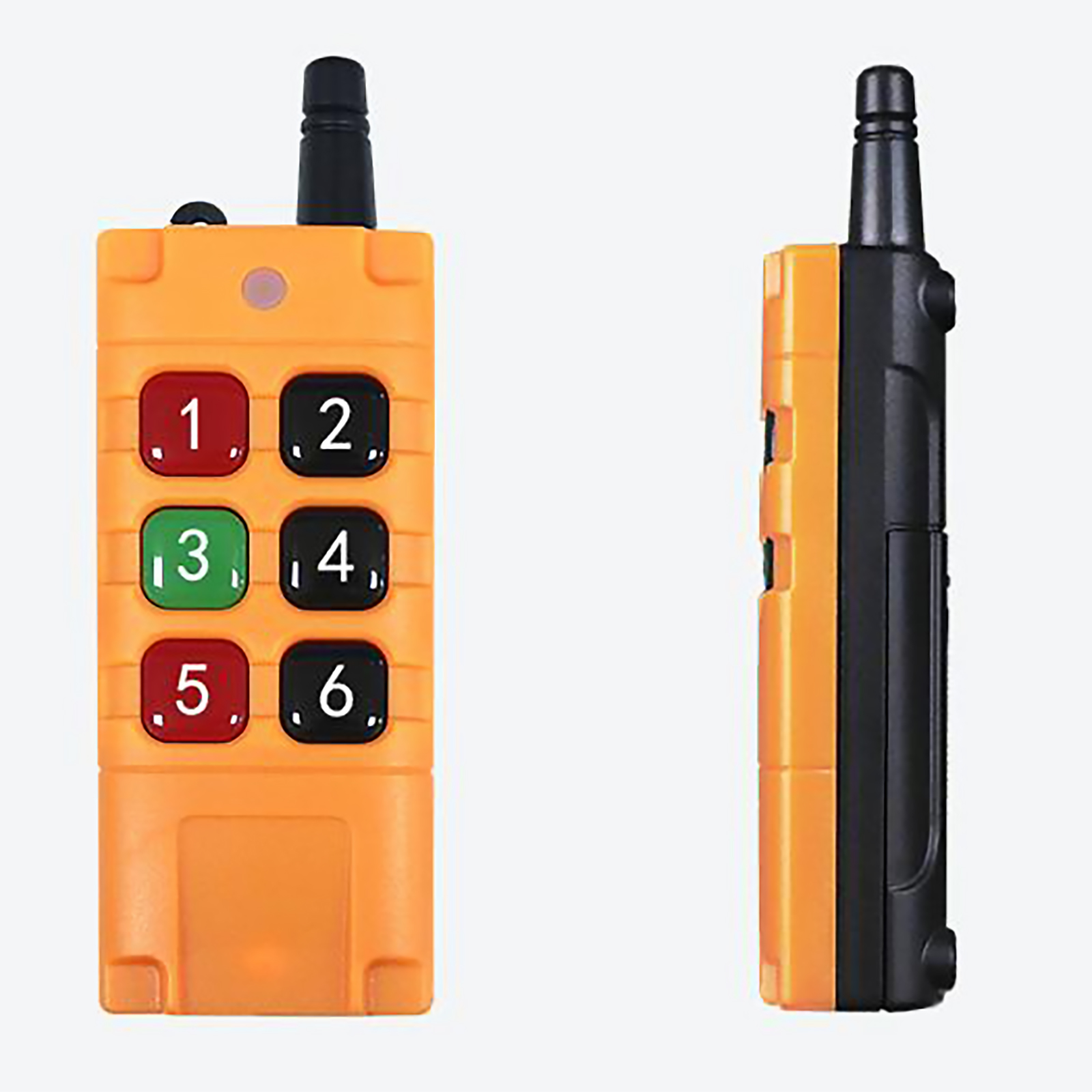

1 X Transmitter

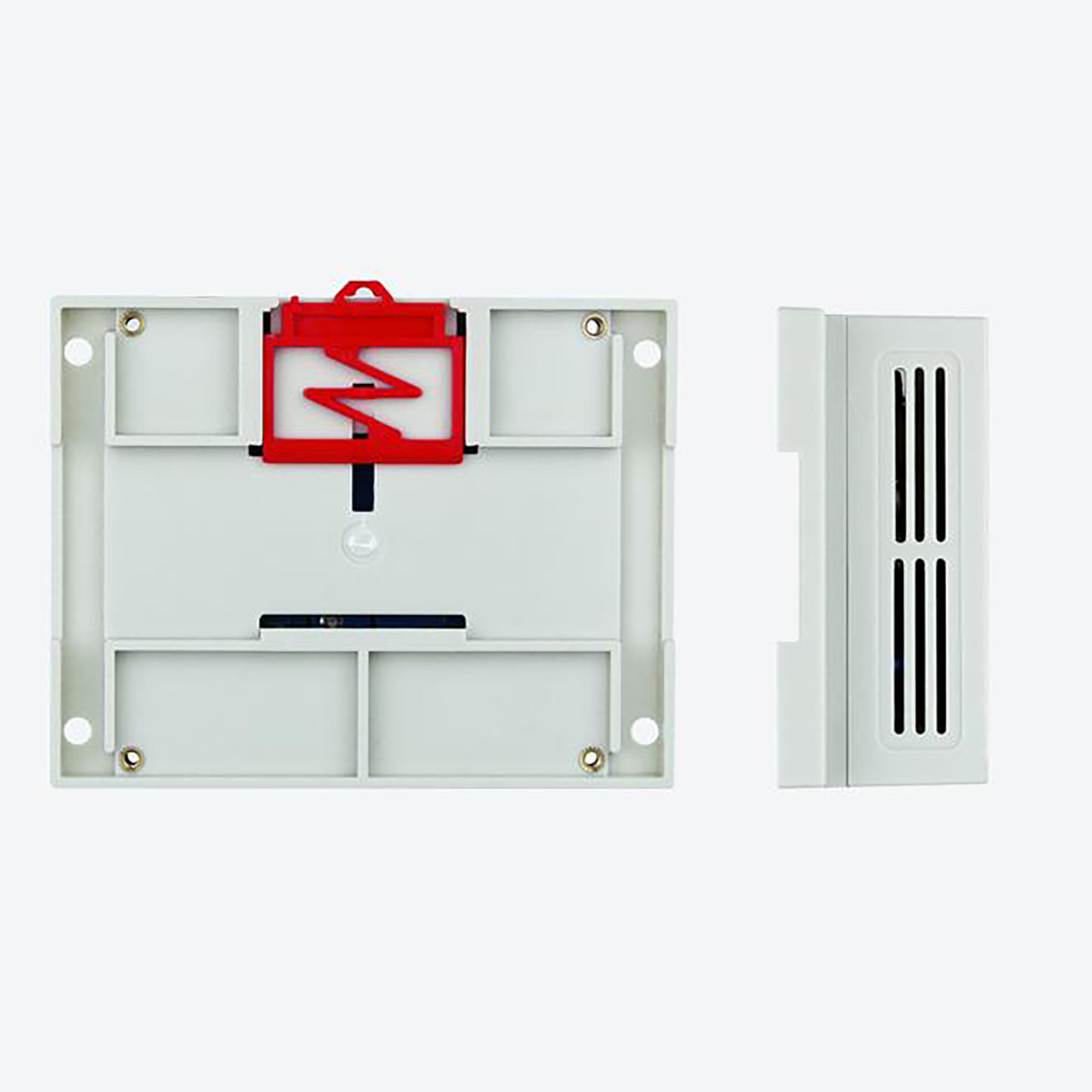

1 X Receiver
 |  |
 |  |
 |  |
 |  |
 |  |
 |  |
 |  |
 |  |
 |  |
 |  |
 |  |
 |
