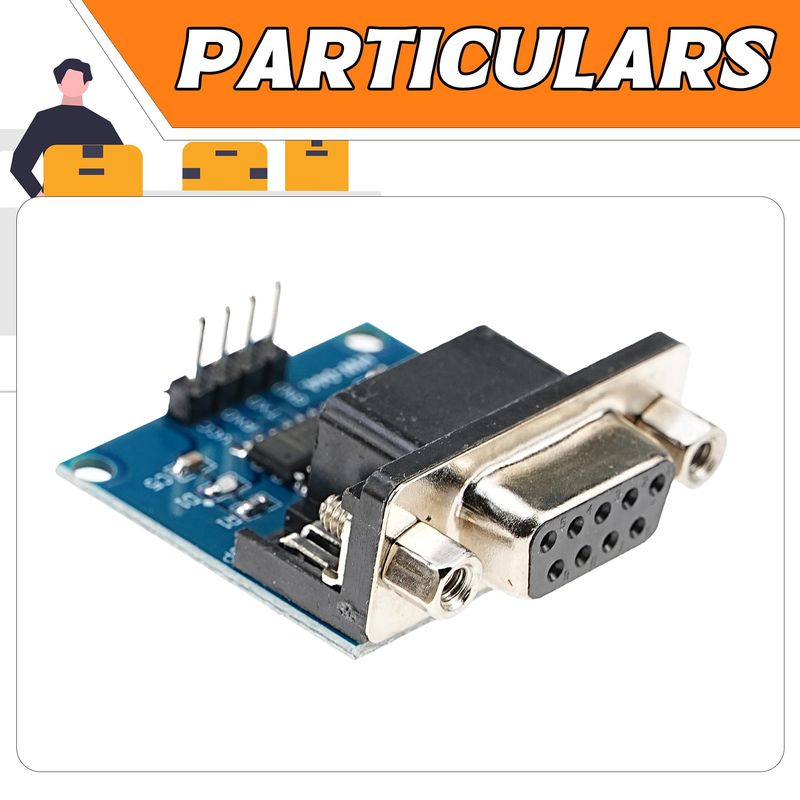

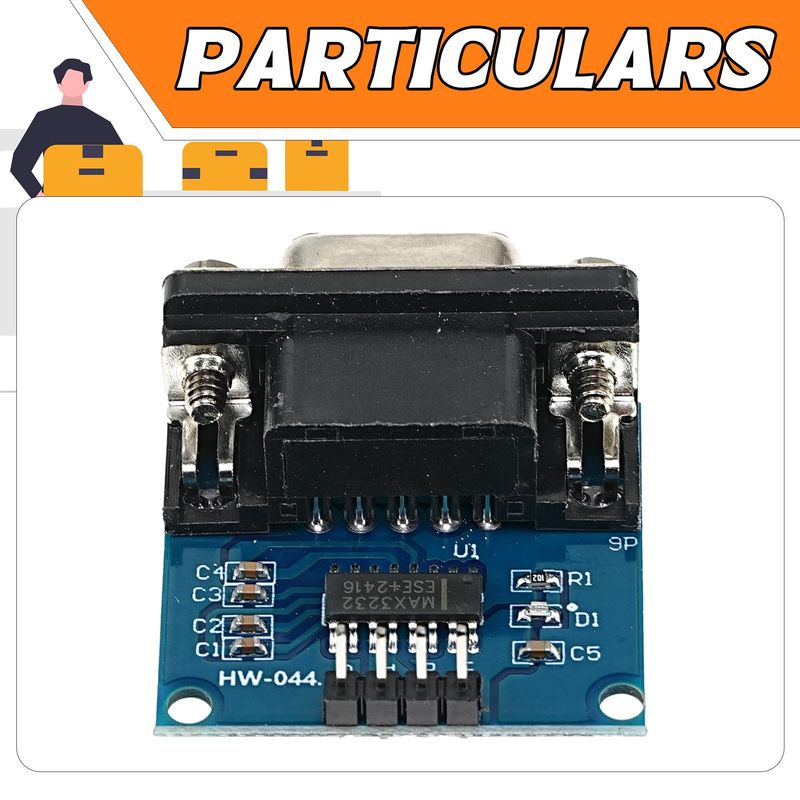

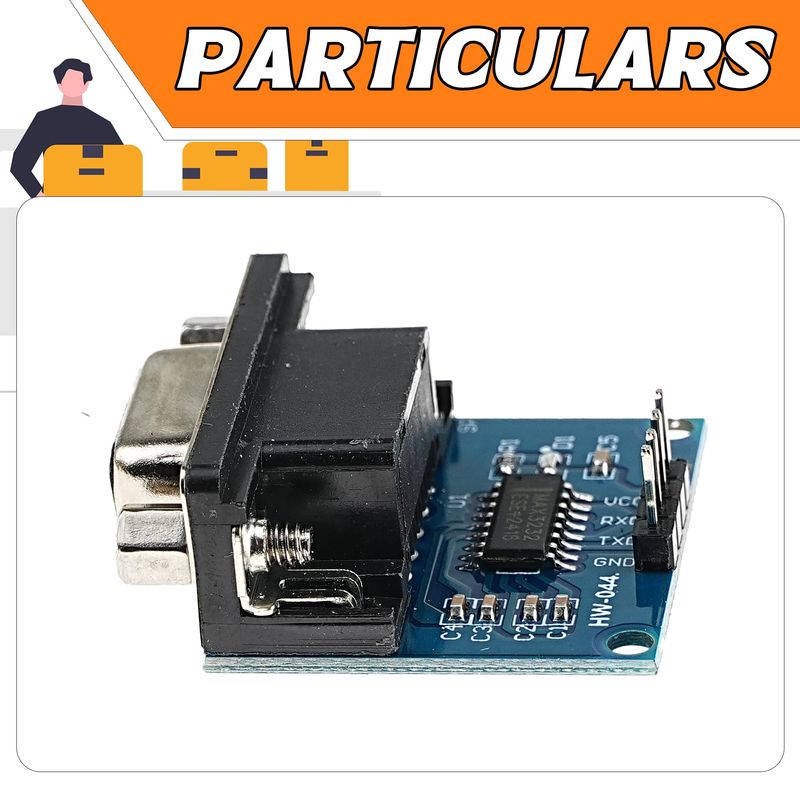

A-DIGISHUO 5pcs RS232 to TTL Converter Module COM Serial Port Board MAX3232 MAX232CSE
- The MAX3232 RS232 to TTL Converter Module is a versatile device that enables the conversion between RS232 and TTL signaling levels. This module is equipped with the MAX3232 chip, which handles the necessary voltage level conversions between the two standards. It allows devices with RS232 interfaces to communicate with those that use TTL signaling, making it an essential tool for connecting a wide range of electronic devices. With its compact design and reliable performance, the MAX3232 RS232 to TTL Converter Module is ideal for use in various applications, including embedded systems, automation projects, and communication interfaces.
- The Operating Voltage range for this device is 3.3V to 5V, providing flexibility in power supply options. This wide voltage range ensures compatibility with a variety of electronic systems and devices. Whether you are working with low-power microcontrollers or more powerful embedded systems, the Operating Voltage of 3.3V to 5V allows for seamless integration and reliable operation. This makes the device suitable for a wide range of applications, from small hobby projects to industrial automation systems.
- The device features four primary interfaces: VCC, GND, RXD, and TXD. VCC stands for Voltage Common Collector and is used to provide power to the module. GND, which stands for Ground, serves as the common reference point for all electrical potentials within the circuit. RXD, or Receive Data, is the pin that receives incoming data signals, while TXD, or Transmit Data, is the pin that sends outgoing data signals. These four interfaces enable seamless communication and data transfer between the module and other electronic devices, making it an integral part of various systems and applications.
- The Communication Chip utilized in this device is the MAX3232 chip, a highly reliable and efficient integrated circuit designed for RS-232 level conversion. The MAX3232 chip is capable of converting TTL/CMOS logic levels to RS-232 levels and vice versa, enabling seamless communication between devices that use these different signaling standards. Its robust design and low power consumption make it an ideal choice for a wide range of applications, including embedded systems, automation projects, and communication interfaces. With the MAX3232 chip, users can ensure reliable and error-free data transmission between their devices.
- Manufacturer: A-DIGISHUO
- Model Number: G031
- Part Number: G031
This product is widely used in radio modifications, mobile phone brushes, XBOX360 brushes, GPS, car testing, DVD brush machines, hard drive repairs, box upgrades. Programmed microcontroller.
Main parameters:
Control Chip: MAX3232
Working Voltage: DC 3.3V-5V
Working Current: 6mA
External Power Supply
Interface: TXD, RXD, GND, VCC
Overall size: 33 x 32 x 16 mm.
Package includes:
5 x RS232 to TTL Converter Module
