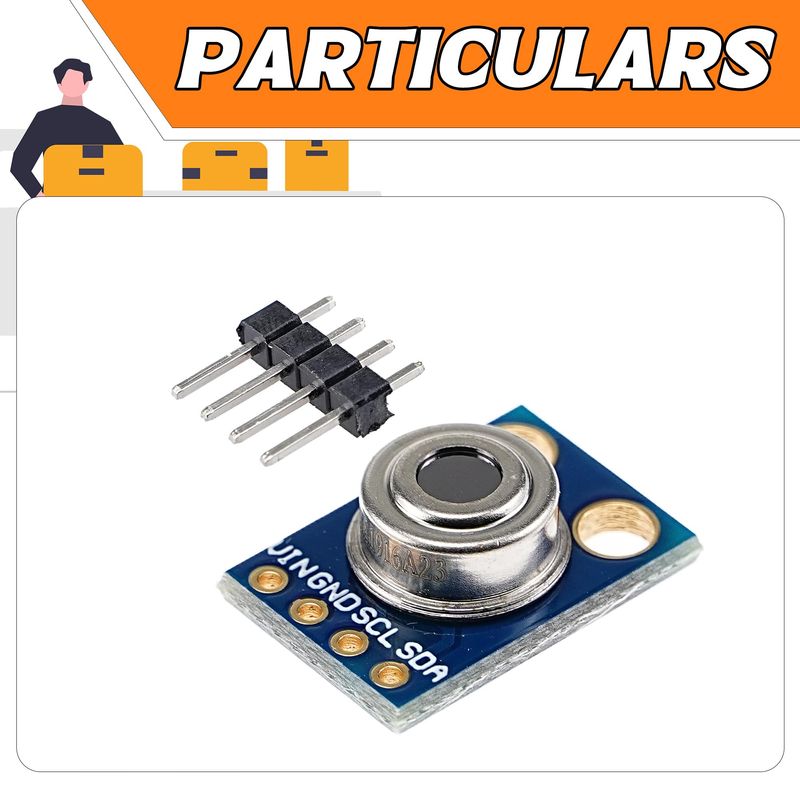

A-DIGISHUO GY-906 MLX90614ESF Infrared Temperature Sensor Module Non-Contact Infrared Temperature Sensor Module IIC I2C 3-5V
- The MLX90614 Non-Contact Infrared Temperature Sensor Module is a cutting-edge device designed to measure temperatures accurately without the need for physical contact. Utilizing advanced infrared sensing technology, this module can detect the infrared radiation emitted by objects and convert it into precise temperature readings. Its compact and robust design makes it suitable for a wide range of applications, including industrial monitoring, healthcare, and consumer electronics, where non-contact temperature measurement is essential for safety and accuracy.
- The MLX90614 Non-Contact Infrared Temperature Sensor Module boasts an innovative design where both the IR (infrared) sensitive thermopile detector chip and the signal conditioning ASIC (application-specific integrated circuit) are seamlessly integrated within the same TO-39 can package. This integration not only enhances the sensor's reliability and durability but also simplifies the installation and maintenance process. The TO-39 can package provides robust protection for the sensitive components, ensuring accurate and consistent temperature measurements even in harsh environmental conditions.
- The MLX90614 Non-Contact Infrared Temperature Sensor Module is equipped with a low noise amplifier, a 17-bit analog-to-digital converter (ADC), and a powerful digital signal processor (DSP) unit, all integrated within the sensor itself. This combination allows for high accuracy and resolution in temperature measurements, ensuring that even the smallest temperature changes can be detected and reported with precision. The low noise amplifier helps to minimize electrical interference, while the high-resolution ADC and DSP unit provide enhanced processing capabilities for accurate and reliable temperature sensing.
- The MLX90614 Non-Contact Infrared Temperature Sensor Module is factory calibrated to ensure accuracy and reliability right from the start. It features a digital SMBus (System Management Bus) output that provides full access to the measured temperature across the entire temperature range, with a high resolution of 0.02°C. This level of precision allows for detailed and accurate temperature monitoring, making it ideal for applications where even small temperature fluctuations can have significant impacts. The SMBus output also simplifies integration with various systems and devices, enabling seamless and efficient temperature sensing and control.
- The MLX90614 sensor offers flexibility in digital output configuration, allowing users to set it to pulse width modulation (PWM). By default, the 10-bit PWM continuously transmits the measured temperature within a range of -20 to 120°C, providing an output resolution of 0.14°C. This feature enhances the sensor's versatility and makes it suitable for a variety of temperature monitoring applications.
- Manufacturer: A-DIGISHUO
- Model Number: G038
- Part Number: G038
Features and Benefits: *Small size, low cost *Mounted on a breakout board with two types of pins *10k Pull up resistors for the I2C interface with optional solder jumpers *Easy to integrate *Factory calibrated in wide temperature range: *-40…+125°C for sensor temperature and *-70…+380°C for object temperature. *High accuracy of 0.5°C over wide temperaturerange (0…+50°C for both Ta and To) High (medical) accuracy calibration *Measurement resolution of 0.02°C *Single and dual zone versions *SMBus compatible digital interface *Customizable PWM output for continuousreading *Simple adaptation for 8…16V applications *Sleep mode for reduced power consumption *Different package options for applications andmeasurements versatility *Automotive grade Applications Examples: *High precision non-contact temperaturemeasurements *Thermal Comfort sensor for Mobile AirConditioning control system *Temperature sensing element for residential,commercial and industrial building airconditioning Windshield defogging *Automotive blind angle detection *Industrial temperature control of moving parts *Temperature control in printers and copiers *Home appliances with temperature control *Healthcare *Livestock monitoring *Movement detection *Multiple zone temperature control – up to 127sensors can be read via common 2 wires *Thermal relay / alert *Body temperature measurement Package included: 1* MLX90614 Infrared Temperature Sensor Module NOTE:Please contact us if you need the Instructions and Datasheet.
