AD831 High Frequency RF Mixer Module 0.1‑500MHz Single Chip Converter, Premium Performance
- Applications: AD831 is a single chip mixer with low distortion, wide dynamic range for HF and VHF receivers, RF IF frequencies, base stations, DC baseband conversion, straight modulation and demodulation, and ultrasonic imaging and other applications
- PREMIUM PERFORMANCE: No corresponding shielding and insulation, improved system performance compared to passive mixers, single power supply with DC isolated capacitors for RF, IF, and LO ports
- Parameters: RF and LO input can operate up to 500 MHz. IF output is a single end voltage output with a 250 MHz output bandwidth and one resistance connected between the pin out and FB is used for gain settings

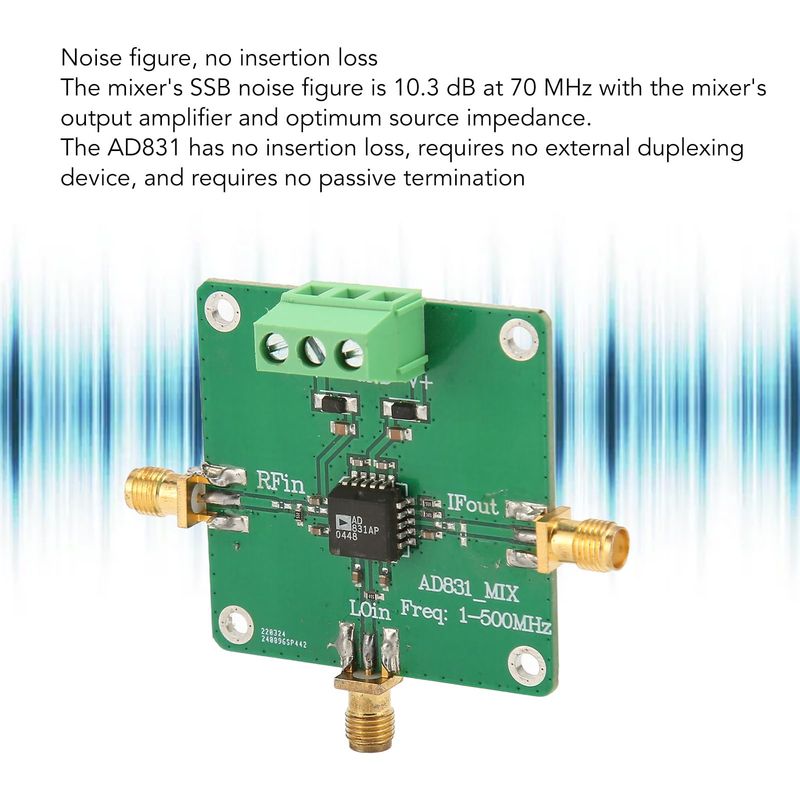

- Noise Index, No Insertion Loss: Mixer SSB noise index is 10.3 dB at 70 MHz when mixer output amplifier and optimal source impedance. AD831 has no insertion loss and no external duplex devices or passive termination
- ‑10 dBm LO Power: AD831 provides 3-dimensional intermodulation points of +24 dBm, achieving -10 dBm LO power, eliminating the need for high power LO drivers
- Manufacturer: Vbestlife
- Model Number: Vbestlife49s0qtne7g
- Part Number: Vbestlife49s0qtne7g
1. Application: AD831 is a single chip mixer with low distortion, wide dynamic range for HF and VHF receivers, RF IF frequencies, base stations, DC baseband conversion, straight modulation and demodulation, and ultrasonic imaging and other applications.
2. Premium Performance: No corresponding shielding and insulation, better system performance compared to passive mixers, single power supply with DC isolated capacitors for RF, IF, LO ports.
3. Parameters: RF and LO input can operate up to 500 MHz. IF output is a single end voltage output with a 250 MHz output bandwidth and sets the gain using one resistor connected between the pin out and FB.
4. Noise Index, No Insertion Loss: If the mixer output amplifier and optimal source impedance exists, the mixer SSB noise index is 10.3 dB at 70 MHz. AD831 has no insertion loss and no external duplex devices or passive termination.
5. ‑10 dBm LO power: AD831 provides a 3-dimensional intermodulation interception point with +24 dBm to achieve -10 dBm LO power, eliminating the need for high power LO drivers.
Specifications:
Item Type: AD831 High Frequency RF Mixer Module
