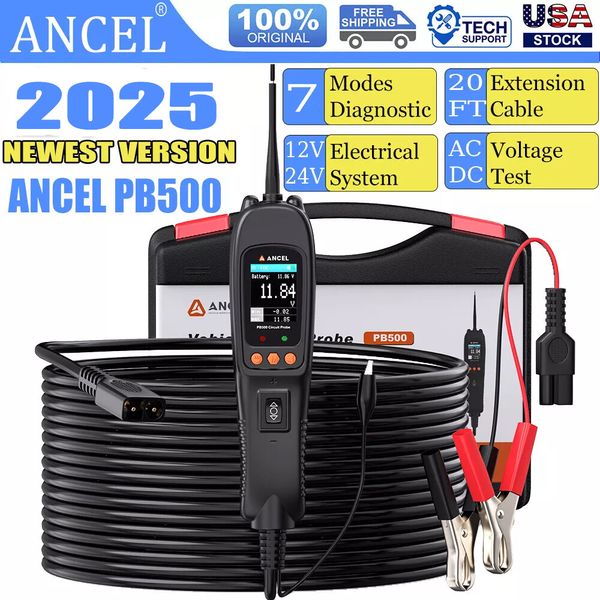

ANCEL PB500 Circuit Power Probe Tester Tool AC/DC Voltage Electrical System Test
ANCEL PB500 Product Description
✅ 【Pro - Level automotive circuit tester-7 Powerful Test Modes】The ANCEL PB500 Power Circuit Probe Kit is an upgraded version of the PB100, offering 7 advanced test modes, including DC Voltage, AC Voltage, Resistance, Diode, Frequency, Duty Cycle, and Fuel Injection tests.
✅ 【ALL-IN-1 Power Circuit Probe Tester-Answers to all your questions】ANCEL PB500 automotive circuit tester covers all circuit tests, t is simple to operate and easy to use, Intuitive interface with ergonomic design makes it be best gif.t for all novice drivers or pro circuit repairers!
✅ 【Built-In Diagnostic Power - Component Activation & Test】 This ANCEL automotive power circuit probe tester can activate components on/off-board electrical systems/ equipment and is designed for car technicians or car enthusiasts.
✅ 【Specialized Fuel Injection Tests】The PB500 Fuel Injection Test Mode is designed for fast, precise diagnostics of the fuel injection circuit. It quickly analyzes the fuel delivery process, ensuring that each injector is firing precisely as it should.
✅ 【Switch Easily Between Test Modes-Clear Waveform & Digital Display for Faster Diagnosis】Featuring a user-friendly interface that seamlessly switches between test modes at the push of a mode button, the PB500 can be quickly adapted to the specific needs of the circuit being analyzed.
✅ 【Intelligent feedback - Identify Faulty Wiring in Seconds 】ANCEL car circuit tester instantly checks component continuity and quickly identifies positive, negative, and open circuits.
✅ 【Signal Circuit Test & Continuity Test】When you extract Diagnostic Trouble Codes (DTCs) from the vehicle's ECU, this Electrical System Probe Tester can test a variety of sensors and circuits to help you find out the root problems of the car's electrical system!
✅ 【 99% Vehicels Supported 】 -----compatible with 12V/24V vehicles, including Car, Bus, Suv, Motorcycle, Heavy Truck, Mountain Buggy, Snowmobiles...
Product Specifications
➤ Electrical Specifications
● Supply Voltage 8V DC ~ 30V DC
● DC/ AC Voltage Test -110V ~ 110V
● Frequency 0Hz ~ 1Mhz
● Duty Cycle 0.0~100.0%
● Fuel Injection Voltage: 0~180V, Time: 0~25ms
● Resistance 0~1MΩ
● Diode Germanium diode, silicon diode
● Rating Current 1A~8 A
➤ Instrument Trip Time:
● 8 Amps: Hold > 1 hour.
● 12 Amps: current: trip in one hour.
● 16 Amps: current: trip in 3-30 seconds.
● 24 Amps: current: trip in 0.5-4.0 seconds
➤ Tool Specifications
● Display TFT color display (160x128 dpi )
● Operating Temperature -10 ~ +60℃ ( 14 ~ 140℉)
● Storage Temperature -20 ~ +70℃ (-4 ~ 158℉ )
● Dimensions (L*W*H) 200mm*52mm*39mm
● Net Weight 1.2Kg
ANCEL PB500 Button Function
Level automotive circuit tester-7 Powerful Test Modes
The ANCEL PB500 Power Circuit Probe Kit is an upgraded version of the PB100, offering 7 advanced test modes, including DC Voltage, AC Voltage,Resistance, Diode, Frequency, Duty Cycle, and Fuel Injection tests. This versatile tool helps you pinpoint problematic circuits while ruling out good ones, significantly speeding up the diagnostic process and revealing the root cause of electrical issues with ease.
ALL-IN-1 Power Circuit Probe Tester-Answers to all your questions
ANCEL PB500 automotive circuit tester covers all circuit tests, including ✅Circuit breaker/open test ✅DC Voltage test (Resolution 0.1V) ✅AC Voltage test ✅Resistance test ✅Doide ✅Polarity test ✅Continuity test ✅Ground test ✅Component activation ✅Signal circuit test ✅Duty Cycle ✅Fuel Injection ✅Relay Test ✅Fuse Test. It is simple to operate and easy to use, Intuitive interface with ergonomic design makes it be best gif.t for all novice drivers or pro circuit repairers!
2 Forms Display Mode
To switch Waveform Display Mode and Digital Display Mode. (In AC Voltage, Frequency, Duty Cycle and Fuel Inject Modes)
Quickly Find Shorts Locate - Short Circuits with Overload Protection
This ANCEL Electrical System Tester is like a detective for your car's wiring. Using its highly sensitive probes, it can quickly and accurately troubleshoot the car wiring circuit, zeroing in on faulty wires and their exact fault points. Say goodbye to hours of head-scratching and hello to efficient repairs. And with its built-in short - circuit protection, if there's an overload, the internal circuit breaker will trip, safeguarding both you and the tester. It's like having a built-in bodyguard for your testing adventures.
Intelligent feedback - Identify Faulty Wiring in Seconds
ANCEL car circuit tester instantly checks component continuity and quickly identifies positive, negative, and open circuits. When the positive terminal is connected, a red LED lights up with beep sounds. When the negative terminal is connected, a green LED lights up with a low tone. If an open circuit, neither of the LED lights will not light. The built-in LED indicator provides clear, real-time feedback, making your diagnostics smooth and efficient.
Built-In Diagnostic Power - Component Activation & Test
This ANCEL automotive power circuit probe tester can activate components on/off-board electrical systems/ equipment and is designed for car technicians or car enthusiasts. By activating the signal generated by the component, you can accurately judge whether the component is intact, such as the blower motor, power window motor, windshield wiper, rear window defroster, lights, radiator fans, fuel injectors, etc. ANCEL circuit tester automotive tool can activate components in your hand/ in the vehicle/ with ground etc.
20 FT TEST CABLE----Long Enough
Package List
1pc Vehicle Super Probe
1pc Probe Tip
1pc Crochet Hook
1pc Crochet Hook Extension Cable
1pc Battery Clamp Cable
1pc User’s Manual
1pc Rugged Blow Molded Case
