- 🌻【32 Bit High Performance Microprocessor】TFT35 E3 V3.0 touch screen uses 32 bit ARM level Cortex-M3 series STM32F207VCT6,120MHz frequency Microprocessor, it is designed for ENDER 3 3D printer especially,which can perfectly replace the original LCD screen of Ender3 Printer.
- 🌻【Two Working Modes】TFT35 E3 V3.0 Touch screen support UART serial port screen mode(touch screen mode) and 12864 screen mode, it can replace original display of Ender 3 3D printer.
- 🌻【More Extension Ports is Reserved】TFT35 E3 V3.0 display reserve the extension port of filament breaking detection,automatic shutdown after printing,also WIFI function can be realized by external WIFI module through WIFI port.
- 🌻【Firmware Update】It is easy and convenient to update firmware by SD card,download from our github: https://github.com/bigtreetech,copy and save it to SD card.firmware must bed reserved ,then re-plug the SD card and wait to 10s.The firmware has been successfully updated.
- 🌻【Quality Warranty 】This touch screen is designed and produced by BIGTREETECH team,any questions and feedback about that please free to tell us, we have professional technical team to support you.
- Color: White
- Manufacturer: BIQU DIRECT
- Part Number: E5ZZB00037820191118
- Style: TFT35 E3 V3.0
Firmware Introduction
1. Ways to obtain the firmware of motherboard
2,Get it from customer service or technical staff;
Log in the open source website of our company to download : https://github.com/bigtreetech
Firmware update
Firmware file name:
BIGTREE_TFT35_V3.0. ( version number).bin
First copy the above firmware to SD root directory, and then insert the card into the SD card slot of the board. Next please re-power the board or press the reset key, and wait for about 10 seconds before the update is completed.
3. For DIY board firmware, please refer to the file TFT35-E3 V3.0PIN.
Something Important

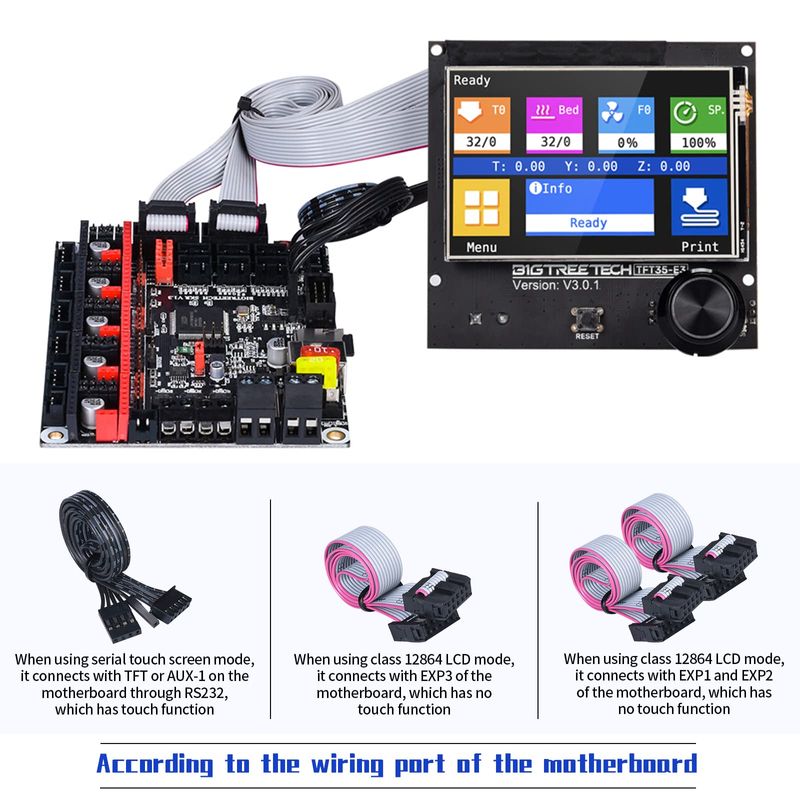

1. When using 12864 screen mode, connect the port EXP1 and EXP2 to the motherboard. There is no touch function in this mode.
2. When using serial port screen mode, connect with TFT or AUX-1 on the motherboard via RS232. This mode has touch function.
3. Two work modes can be changed by one key. Press the encoder about 3 seconds until the mode selection page appears, then press the encoder after selecting the mode.
Product Specification
Appearance size:93*87mm
Installation size:Perfectly replace the original LCD screen of Ender3 printer, detail information please check TFT35-E3 V3.0 SIZE

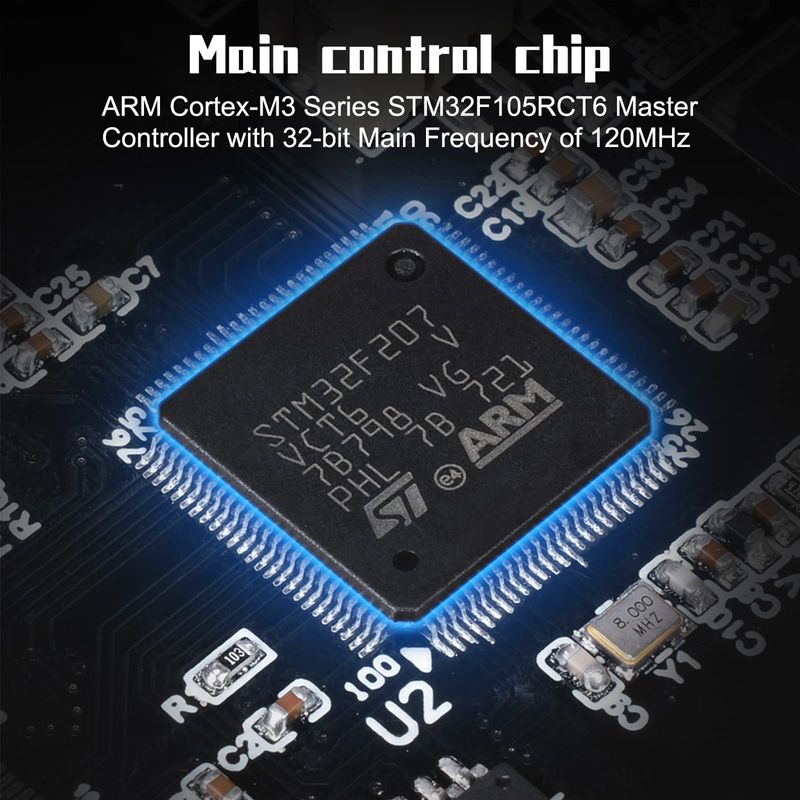

Microprocessor:STM32F207VCT6
Power Input:DC 5V
SD card logic voltage:3.3V and 5V(Such as: support MEGA2560 main control chip motherboard, higher compatibility)
Package Included
TFT35 E3 V3.0*1
