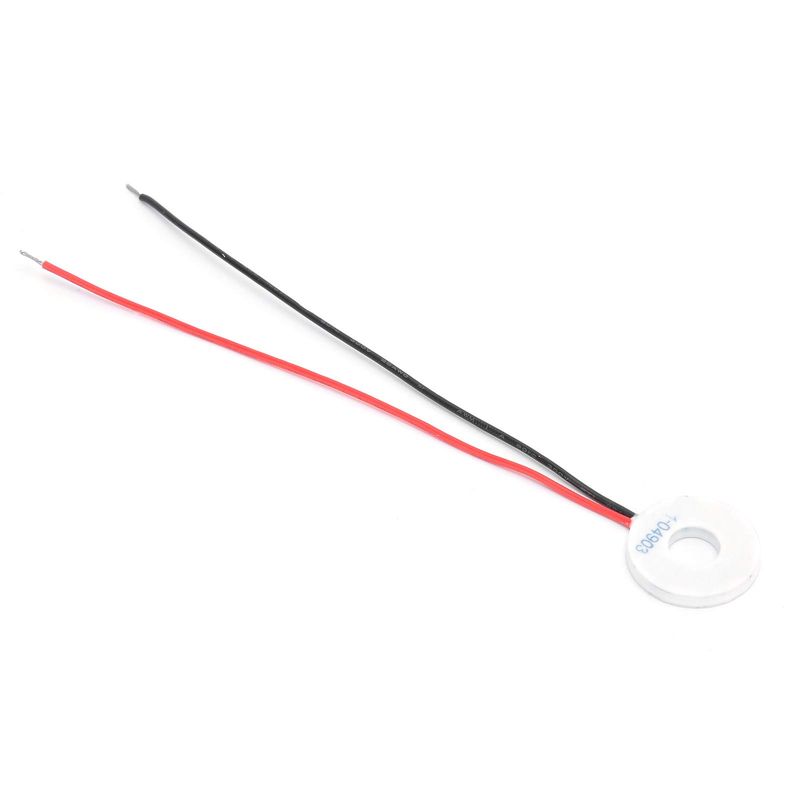

Bindpo Thermoelectric Cooler Module, TES1-04903 Circular Thermoelectric Cooler 5V3A Temperature Difference Semiconductor Refrigeration Tablets

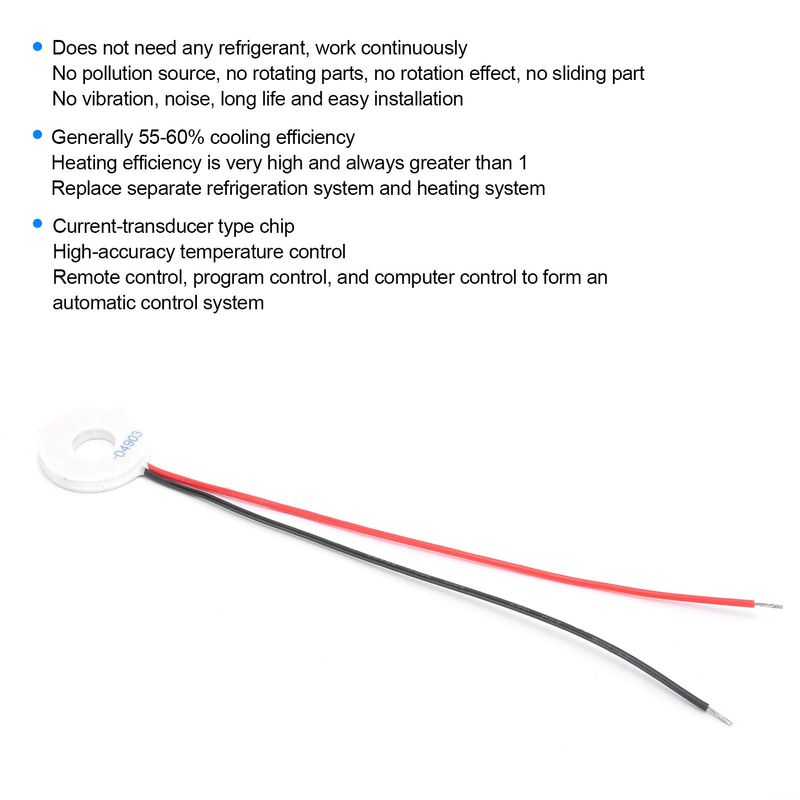

- 【Long service time+Simple 】Does not need any refrigerant, can work continuously, there is no pollution source, no rotating parts, no rotation effect, no sliding part. A solid piece without vibration, noise, possess long life and easy installation
- 【Cooling+Heating function】Semiconductor refrigeration fins have two functions, both cooling and heating. The cooling efficiency is generally 55-60%, but the heating efficiency is very high and always greater than 1. Therefore, one piece can replace separate refrigeration system and heating system
- 【Current-transducer type chip】The semiconductor refrigeration chip is a current-transducer type chip. Through the control of the input current, high-accuracy temperature control can be realized. Coupled with temperature detection and control means, it is easy to realize remote control, program control, and computer control to form an automatic control system
- 【Fast cooling/heating time】The thermal inertia of the semiconductor cooling fin is very small, and the cooling and heating time is very fast. When the hot end has good heat dissipation and the cold end is empty, the cooling fin can reach the maximum temperature difference in less than one minute
- 【Applicable modules】The reverse use of semiconductor refrigeration fins is thermoelectric power generation. Semiconductor refrigeration fins are generally suitable for power generation in the middle and low temperature areas
- Color: default
- Manufacturer: Bindpo
- Package Quantity: 1
- Part Number: Bindpo1583w9behd3010
Specification:
Item Type: Thermoelectric Cooler Module
Model: TES1-04903
Material: Ceramic
Rated Voltage: DC5V
Maximum Voltage: DC5.78V (Th=30)
Maximum Current: 3A (U=5.78V, Th=30)
Maximum Temperature Difference: 66 (Qc=0,Th=30)
Maximum Cooling Capacity: 9.5W (T=0,Th=30)
Internal Resistance: 1.27-1.43?
Specification: 22AWG, L: Approx. 150mm / 5.9in
Packaging Process: 704 silicone rubber
Assembly Pressure: 4kg
Working Temperature: -50~+80
Storage Temperature: -40~+60
Application Range:
1. Applications in High-Tech Fields: Satellites, semiconductor lasers, infrared thermal imaging, infrared detectors, optoelectronic devices, etc.
2. Home Appliance Applications: Dehumidifiers, portable heating and cooling boxes, hot and cold water dispensers, cool helmets, cold drink cups, beverage wine coolers, etc.
3. Application in Electronic Technology: Cooling of electronic equipment, electronic components, computers, etc.
4. Industrial Applications: Automobile refrigerators, small air conditioners, dehumidifiers, thermostats, testing instruments, etc.
5. Agricultural and Biological Applications: Physical cooling pads, semiconductor physiological , vaccine preservation, etc.
Outer Diameter: Approx. 26mm / 1in
Inner Diameter: Approx. 10mm / 0.4in
Package List:
1 x Thermoelectric Cooler Module
