Charvel Custom Solderless HH Wiring Upgrade +Coil Split MV/MT/+3way TOGGLE Mod

Charvel Custom Solderless HH Wiring Upgrade +Co...

$393.02

Product Details
CUSTOM MOD
Charvel Custom HH Wiring upgrade
Master volume / Master tone with push/pull to coil split  / 3-way TOGGLE switch
No soldering required!
Completely wired (not a kit) and made for a drop-in fit
Made in USA
Special features:
Solderless installation & solderless future pickup swaps
All components USA specs
Completely wired & ready to install
For models with 2 (4 or 5 wire) humbucker pickups (HH)
MOD - 3-way toggle switch centered at usual blade switch location
Bourns pro-audio m17 potentiometers - High quality/small package
Push/pull tone coil splits pickups (pull up knob for single coil)
Oil filled tone capacitor - Handmade to vintage spec's
50's tone circuit

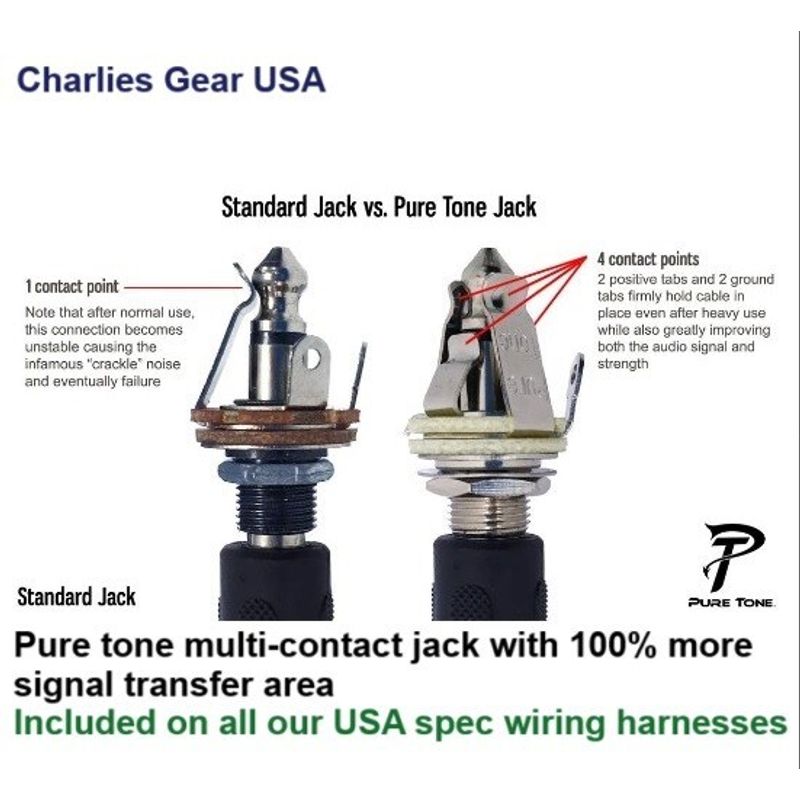

Multi-contact jack with 100% more signal transfer area
Shielded jack cable to protect your signal from RF interference noise
2 grounding options for strings & hardware included
Scroll to listing description for important details & component specs
The easiest installation & future pickup swap system available
Made to fit without a bunch of dangling wires for a nice tight package

Please note - These upgraded potentiometers & jack require a 3/8" mounting hole. If your mounting hole is too small and you need an affordable hand reamer, they're in this store on the "helpful tools" page.

Installation:
This system is designed to make upgrading your electronics with premium components easy, quick and frustration free.
1- Slip your stripped wires into the solderless terminal ports and secure with the included 2mm screwdriver.
2- mount your new harness in the control cavity
3- plug the solderless terminal into the harness.
BING - BANG - BOOM - DONE!
 Plus, no burned fingers!
***Makes future pickup upgrades a snap***
Specifications:
  • Master volume / master tone / 3-way toggle switch

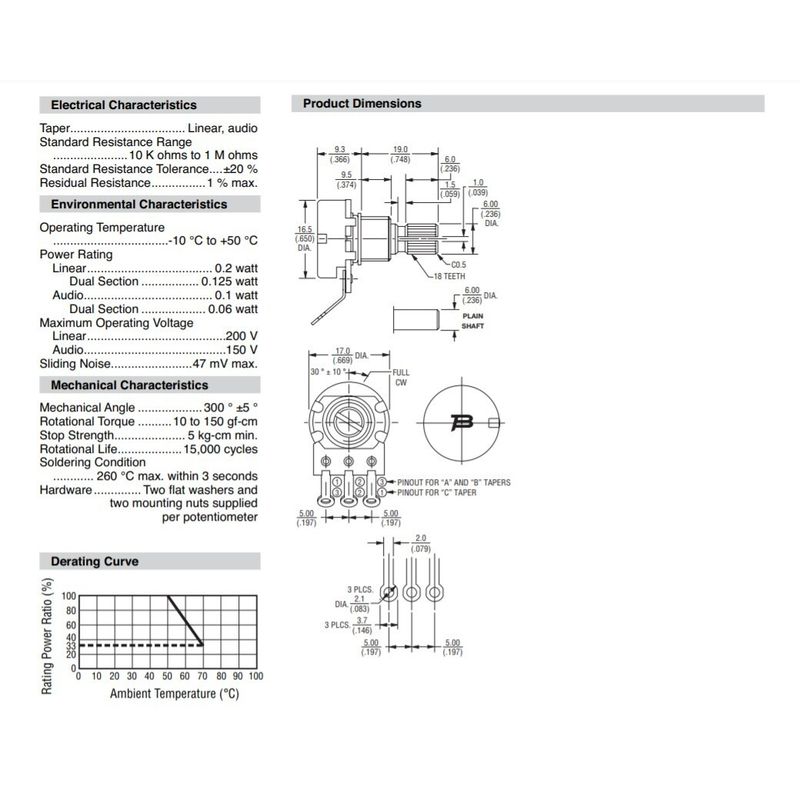

  • Bourns 500k pro-audio 17mm potentiometers
  • Push/pull tone wired to coil split both pickups

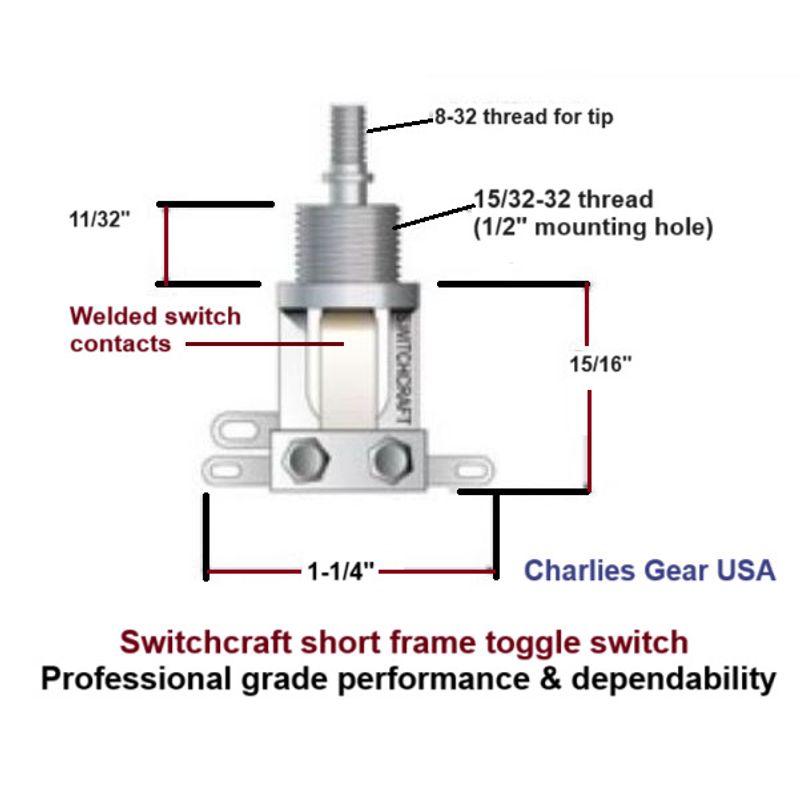

  • Switchcraft 3-way toggle switch
  • MOD .022µF handmade oil filled tone capacitor
  • 50's tone circuit
  • Pure tone multi-contact mono jack
  • Shielded jack cable
  • 2 grounding options included for strings
  • Premium quality solderless terminal for your wire connections
  • 2mm screwdriver for terminal
  • Installation wiring guide
  • Fast shipping with USPS Ground Advantage delivery
