DC 5-36V Replace Relay Digital LED Board Switch Circuit Dual MOS Trigger Cycle Circuit Timer Delay Module
- DC 5-36V wide voltage input, suitable for controlling DC motors, lights, LED strips, micro pumps and solenoid valves
- Dual MOS in parallel active output, lower inner resistance and stronger power, can be used for most devices, professional and practical
- Emergency stop function ("STOP" button) and reverse input protection, safe for use
- After five minutes without operation, the digital display will automatically turn off and you can press any button to wake it up
- No noise, no spark, no electromagnetic interference, easy to use
- Manufacturer: Walfront
- Package Quantity: 1
- Part Number: Walfrontd2k0g5qfg4

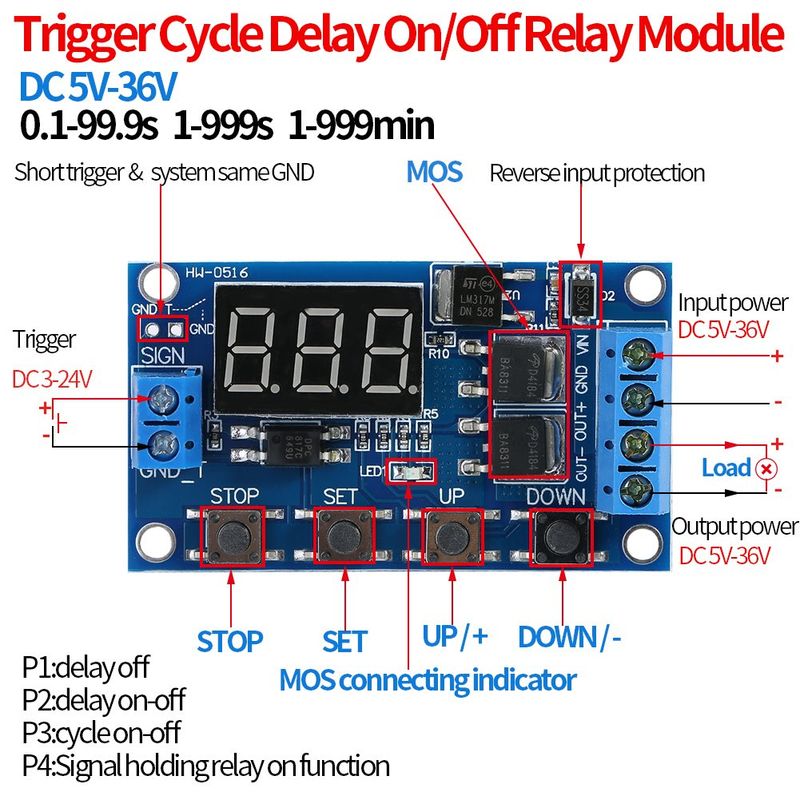

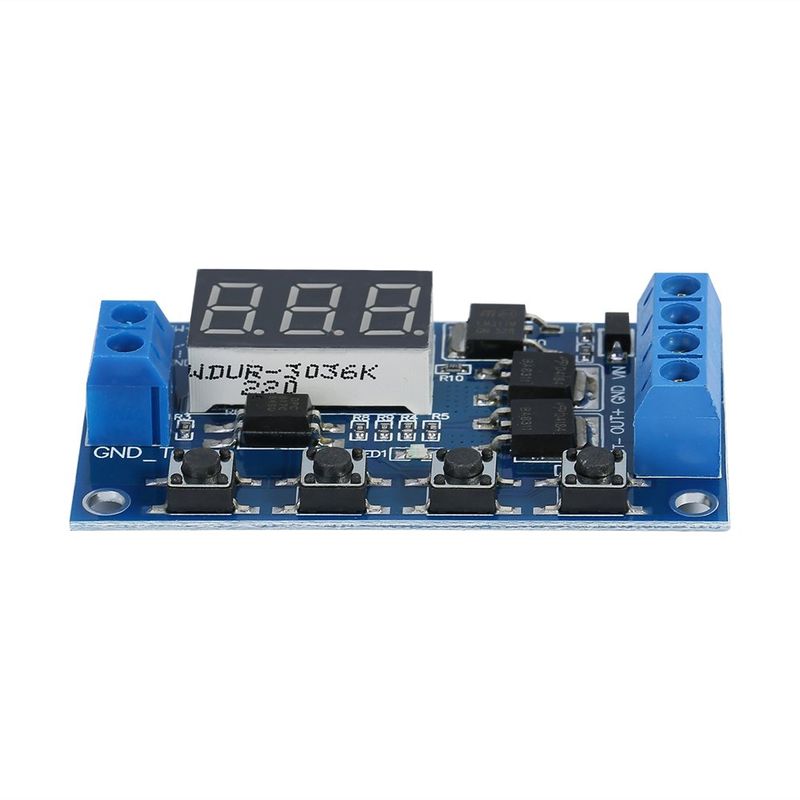

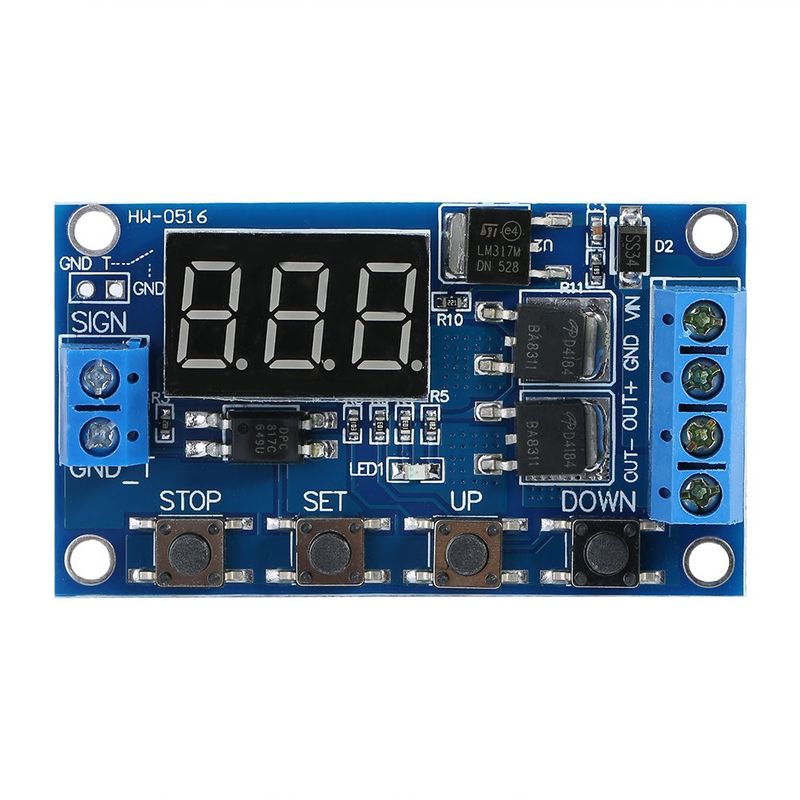

This is a timer delay trigger module with LED indicator. The module has 5-36V wide voltage. At room temperature, its operating current is up to 15A, power up to 400W, so it can be used for most devices. You can also set different OP, CL, LOP parameters and these parameters were independent and were saved. Even in the event of a power failure, all set parameters can be automatically saved.
Technical data:
Voltage: DC 5V ~ 36V.
Trigger Signal Source: high voltage level trigger(3.0V~24V), signal ground and system ground are not on common ground to improve the anti-jamming capability of the system (you can also connect them on common ground).
Output capacity: DC 5V ~ 36V, at room temperature, continuous current is 15A, power 400W. With increased heat dissipation, the current can be up to 30A.
Standby current: 20 mA.
Operating current: 50 mA.
Working temperature: -40 ℃ ~ 85 ℃.
Clock (time delay) range: 0.1 seconds to 999 minutes.
Size: 60 x 34 x 12 mm / 2.36 x 1.33 x 0.47 inches.
Package includes:
1 x timer module.
Note:
1. The module is an active output, the output voltage corresponds to the input voltage.
2. 'DC + 'and' load + 'are internally short-circuited (connected), but 'DC ' and 'load - ' cannot be short-circuited, otherwise the load cannot be switched on and off, which always corresponds to the load.
