DC Motor Reverse Polarity Module 5/6/9/12V Time Adjustable DPDT Delay Relay 2A Drive Current
- The maximum Time: FORWARD: 5000s (up to 40,000s through the short pad), stepping 0.1s, REVERSE: 5000s (up to 40,000s by shorting the pad), stepping 0.1s.
- Working current: 5V---forward 4ma, reverse: 36ma; 12V---forward 6ma, reverse: 44ma.

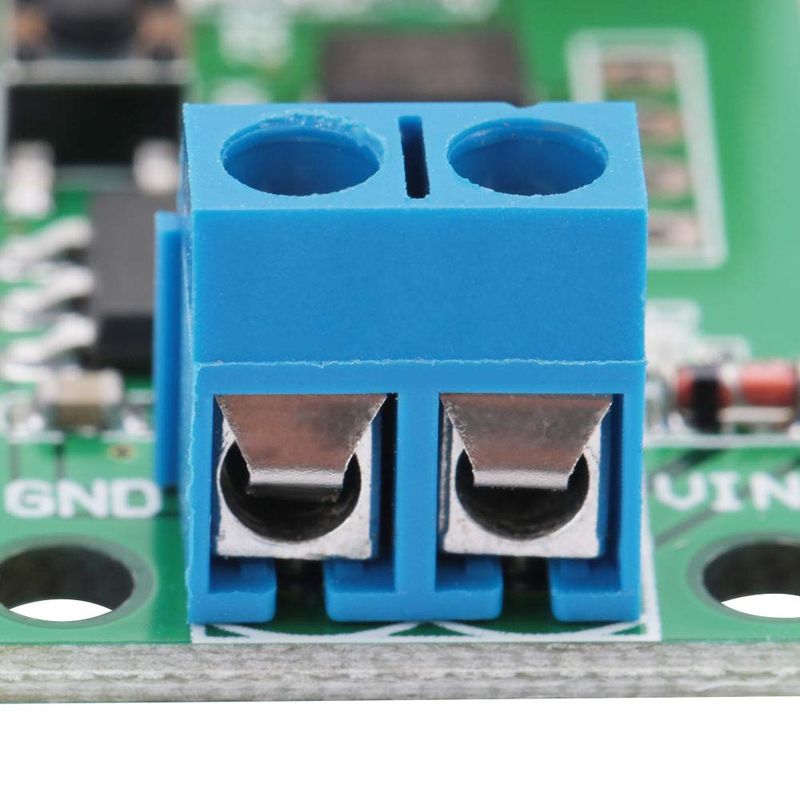

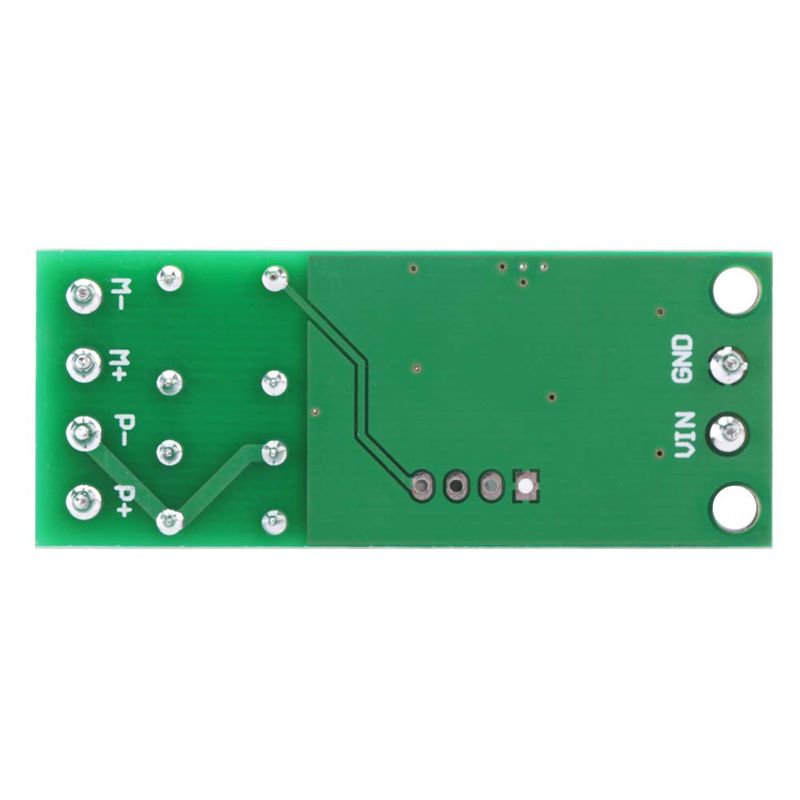

- Instructions1: VIN is connected to the positive power supply, GND is connected to the negative pole of the working power supply; P+ is connected to the positive pole of the motor power supply, and P- is connected to the negative pole of the motor power supply. M+ is connected to the motor input terminal 1 (the motor does not distinguish between positive and negative poles), and M- is connected to the motor input terminal 2.
- Instructions2, After power-on, D1 flashes 3 times and then goes off, D2 goes out, M+ output is positive, M-output is negative, motor rotates forward; after delay T1 time, D2 lights up M+ output negative, M-output is positive, motor reverses; delay After T2 time, D2 is off, M+ output is positive, M-output is negative, motor is rotating forward, and so on.
- After-sale guarantee, We care for every customer's feeling. If this product does not meet or exceed your expectations, please contact us at first, we will solve the problem immediately.
- Manufacturer: Hilitand
- Package Quantity: 1
- Part Number: Hilitandwrogc90ku5
Description:
Operating voltage: DC 5-12V(5V 6V 9V 12V)
Operating current: 5V, forward 4mA, reverse: 36mA;
12V, forward 6mA, reverse: 44mA
Load voltage: DC 1-48V or AC 85-265V
Load current: Max 2A
Forward max time: 5000 seconds, 0.1 seconds step
Reverse max time: 5000 seconds, 0.1 seconds step
Size: 54*22*15mm / 2.12*0.87*0.59in
Weight: Approx. 15g
T1: motor forward delay time, default 0.1-5000 seconds adjustable (step 0.1 seconds)
T2: motor reverse delay time, default 0.1-5000 seconds adjustable (step 0.1 seconds)

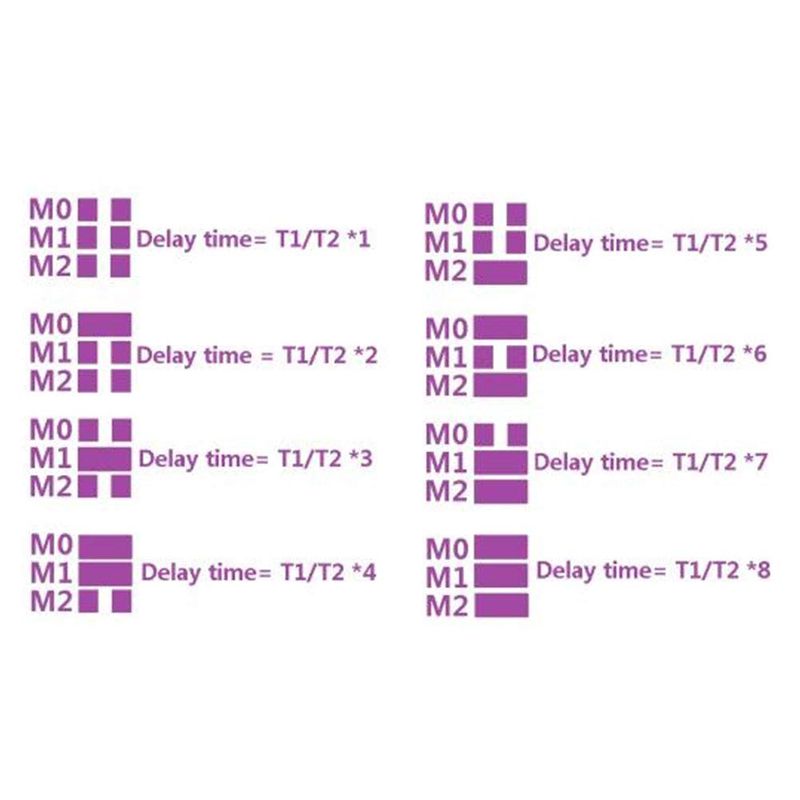

By "Time multiple selection" setting, the maximum delay is up to 40,000 seconds
How to Set Up:
After power on, D1 3 blinks, enter the "work mode"
D2 on Reversal, D2 off Forward
Press and hold the key for 2 seconds, D1 on, enter the "setup mode"
D2 off, It's forward "setup mode"
In forward "setup mode", continuously trigger KEY twice, D1 off, enter "Standby timer mode"
In the "Standby timer mode" , trigger KEY to start timing(enter "Timing Mode")
D1 flashing means it is timing("Timing Mode")
Trigger KEY again to stop the clock(exit "Timing Mode")
D1 flashing time is forward time(T1)
Press and hold the Key for 2 seconds, D2 on, enter the Reverse "setup mode"
In Reverse "setup mode", continuously trigger key twice, D1 off, enter "Standby timer mode"
In the "Standby timer mode", trigger KEY start timing(enter "Timing Mode")
D1 flashing means it is timing("Timing Mode")
Trigger KEY again to stop the clock(exit "Timing Mode")
D1 flashing time is Reverse time(T2)
So far, forward time(T1) and reverse time(T2) is set up
Re-power in "work mode"
