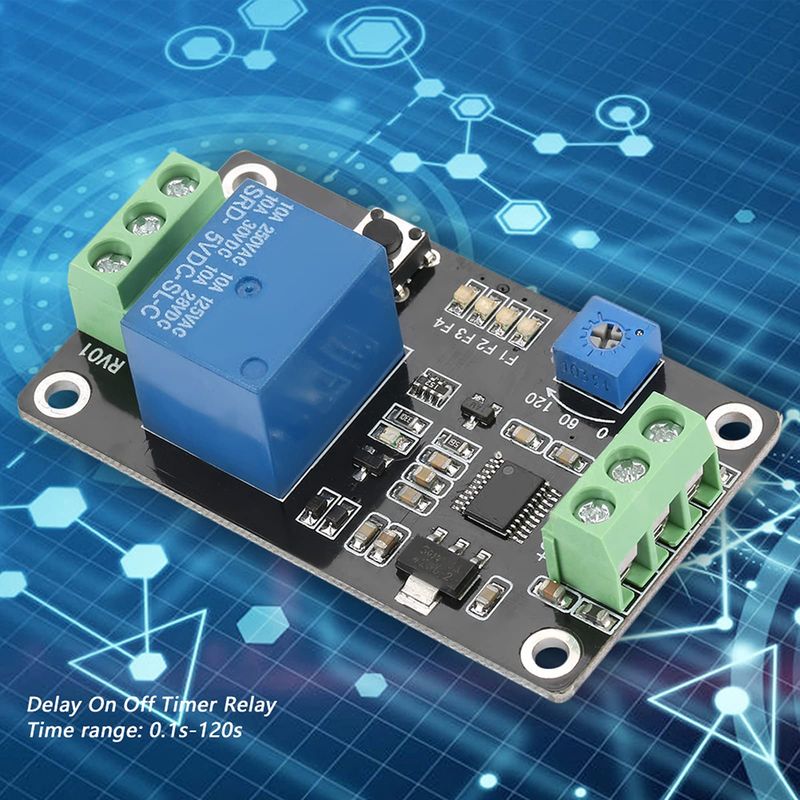

Delay Timer Relay, Delay Timer TRM01 Relay, Self-locking Delay On/Off Timer Switch, Delay Relay Module (DC12V)
- Impeccable practicability-- There are three working voltage versions of 5V/12V/24V for users to choose from
- Feature-- Can be arbitrarily set between 0.1 seconds and 120 seconds, parameters can be saved, and the setting contents are not lost when power off
- Invincible configuration-- Delay ON/OFF, self-locking and trigger delay function,power supply anti-reverse function(prevent damaging the module)
- Versatile and multipurpose-- Suiable for timer operating equipment, household electrical appliances, lighting delay modification, factory equipment, time delay control, etc
- Manufacturer: YWBL-WH
- Model Number: FTVOGUEs41ndt8aqo-02
- Package Quantity: 1
- Part Number: YWBL-WH0cu9koiaqf-02
- Size: DC 12V

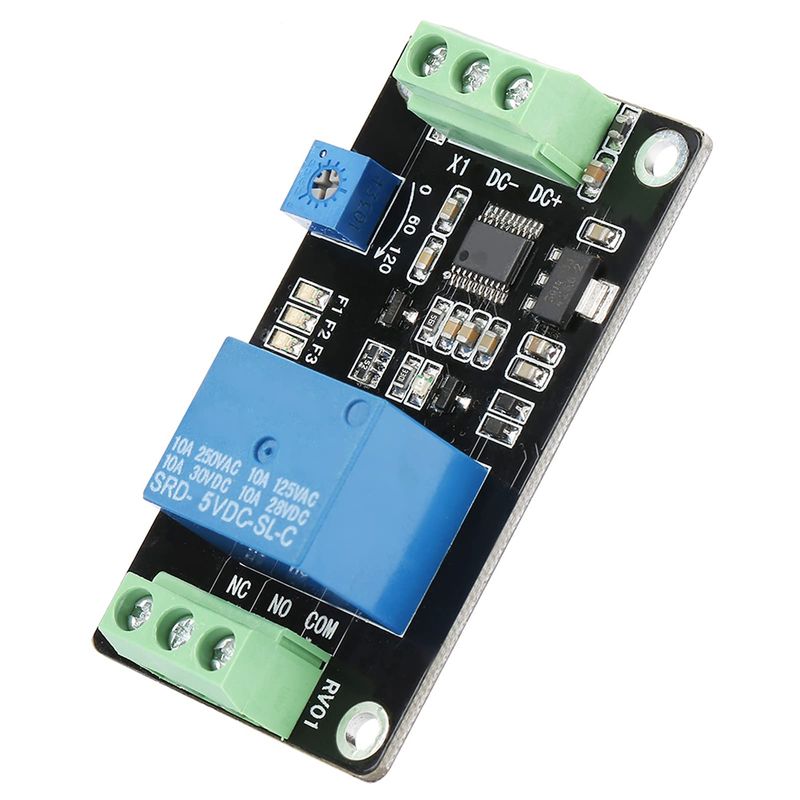

TRM01 Delay Relay Module could be widely used in a variety of control situations that require delay self-locking
Specification:
Working voltage: DC 5V, 12V, 24V (Optional)
Working current:(<1mA when the relay is not operating)
<80mA at 5V ;<35mA at 12V ;<18mA at 24V
Load capacity:
-normally open port: DC 0-30V/10A, AC 0-250V/10A
-normally closed port: DC 0-28V/10A, AC 0-125V/10A
Working temperature: -20~60℃ (limit range -30~70℃)
Size: 60×35×20mm/2.36×1.38×0.79in
Package weight: Approx. 23g
Module function:
The delay time T1 can be adjusted between 0.1 second and 120 seconds
Function F1:
Power-on delay pull-in: After the delay of T1 from the start of power-on, the relay pulls in and sends a high-level pulse signal to the X1 interface at any time
Function F2:
The power-on delay is disconnected: the relay is closed when the power is turned on. After the T1 time is closed, the relay is disconnected, and a high-level pulse signal is given to the X1 interface at any time
Function F3:
Self-locking relay mode: a high-level pulse signal is sent to the relay X1 interface, the relay is closed, and a high-level pulse signal relay is turned off
Function F4:
Level trigger mode: When the power is turned on, the relay is disconnected, and a high level signal is sent to the X1 interface. The relay immediately picks up. After the X1 port signal disappears, the relay still pulls in. When the pull-in time T1 arrives, the relay turns off
Package list:
1×Delay Timer Relay
