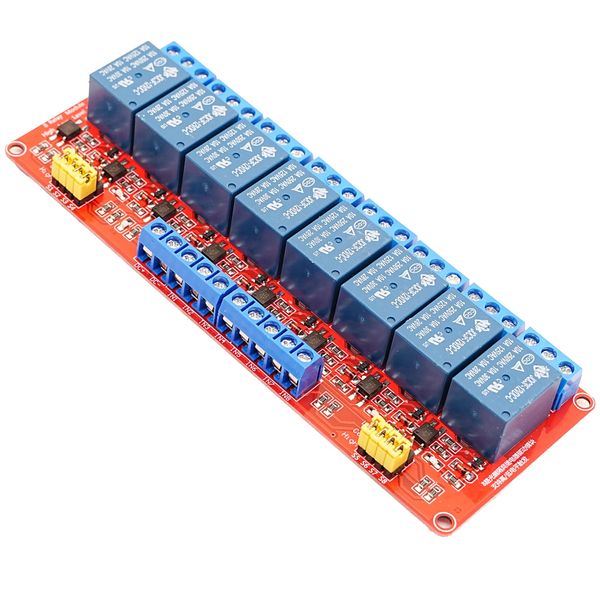

DIGISHUO 12V 8 Channel Relay module with light coupling isolation supports high and low level trigger expansion board
- 【Module Description】Normally open interface limited to large loads. AC 250 volts 10 amps, DC 30 volts 10 amps.
- 【Module interface】1、DC+：Connect to the positive pole of the power supply。（There are 5 volts, 12 volts, and 24 volts according to the requirements of relay requirements.） 2、DC-：Connect to the negative side of the power supply. 3、IN1-IN8：According to the settings of each road, the corresponding relay suction can be controlled high or low level.
- 【Relay Output】There are 24 -line interfaces, all interfaces can be directly led to the edge, which is convenient for users to use. 1、NO1-NO8：The relay often turns on the interface, the relay is inhaled before the suction, and the COM is short after the combination. 2、COM1-COM4 Relay Common Interface. 3、NC1-NC8：The relay is constantly closed, and the relay is short -connected before the combination of the relay.
- 【High and low level trigger selection side】1、S1-S8 is the choice of trigger selection of the high and low level of relay 1 -8 roads in order. 2、When COM and LOW are short, the corresponding succession is triggered at a low level, and the COM and HIGH terminal are triggered at high level.
- 【Application】Relay is an automatic switch component with isolation function. Widely used in remote control, remote testing, communication, automatic control, integration of electromechanical and electrical electronic equipment, is one of the important control elements.
- Manufacturer: DIGISHUO
- Model Number: G015
- Part Number: G015
Description :
1. The module uses genuine quality relay , normally open interfaces Maximum load : AC 250V/10A, DC 30V/10A;
2. Using SMD OPTOCOUPLER isolation , driving ability , stable performance ; trigger current 5mA;
3 . The module voltage is 5V, 9,12 V, 24V are available ;
4 . Each way module can be set high or low triggered by jumper ;
5 . Fault-tolerant design , even if the control line is broken , the relay will not operate ;
6 . The power indicator ( green ) , 8 relay status indicator ( red )
7 . Interface design humane, all interfaces can be connected directly via terminal wiring leads , very convenient

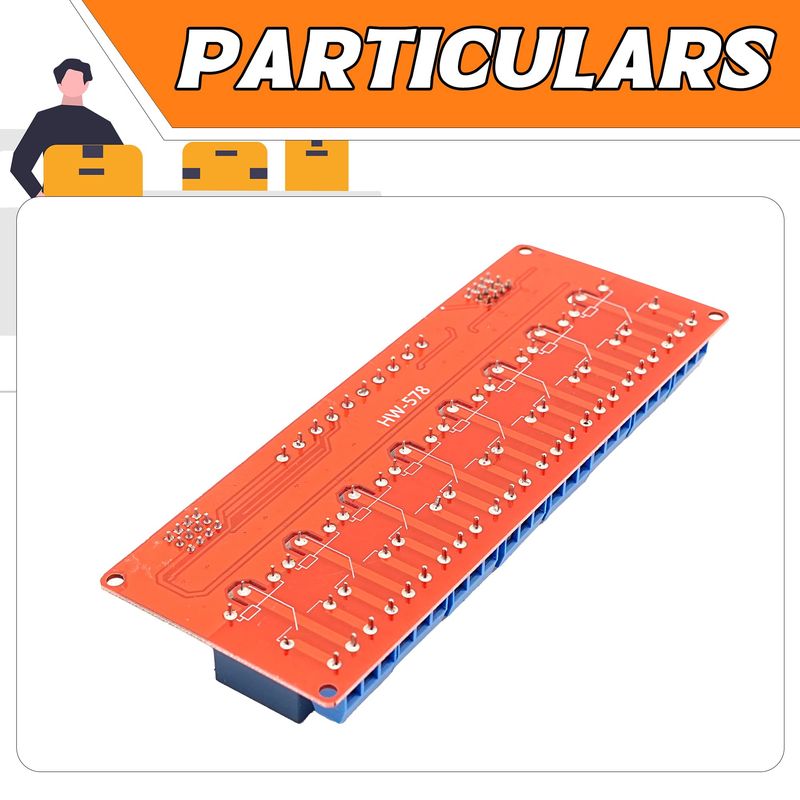

8 . Module size : 141.5mm * 50mm * 18.5mm ( L * W * H )
9 . Has four mounting bolts holes , hole 3.1mm, pitch 136mm * 44.5mm

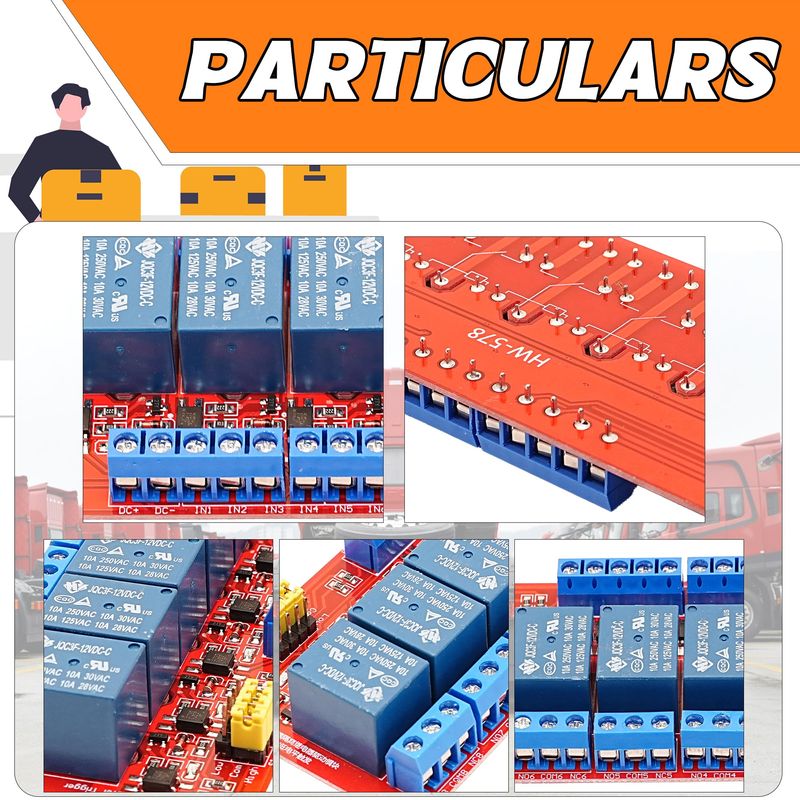

Module Interface :
1. DC +: 12V positive power supply
2. DC-: negative power connection
3. IN1-IN8: each way based on the settings , can be high or low to control the corresponding relay
Relay outputs :24 line interface, the interface can be directly connected to all leads , user-friendly
1. NO1 - NO8: normally open relay interfaces , relay before the vacant after the pull shorted with COM
2. COM1 - COM8: Relay Common Interface
3. NC1 - NC8: normally closed relay interface relay shorted with COM ago , after the pull- vacant
High and low trigger selection :
1.S1-S8 in order to relay a road -8 way high and low trigger selection ;
2.Com with low short circuit , triggering the corresponding relay is low , while the high end of the short com high trigger
Package Included:
1* 12V 8 Channel Relay Module With Optocoupler
