Digital Audio Extender Over CAT5/CAT6 Cable Kit With Optical + Coax SPDIF Inputs
Digital Optical Coaxial SPDIF Audio Extender Over CAT5e CAT6 Cable Kit
This digital optical/coaxial audio extender kit allows users to transmit digital audio sound
for long distance up to 990 feet or 300 meters using a low-cost Cat5e or Cat6 twisted pair Ethernet cable.
This digital audio extender supports transmitting digital PCM stereo and multi-channel digital audio such as LPCM 5.1, LPCM 7.1, DTS 5.1, Dolby Digital, Dolby Digital Plus.
These units can switch between coaxial and optical digital signals and can be powered by either USB wall charger or DC power adapter allowing users flexibility of choice between power sources.
Cost-effective solution for extending digital S/PDIF audio signal for longer range with neat setup for all professional installers.
This digital audio extender kit fits with various A/V applications such as:
- Public audio/audio broadcasting such as airports, train stations, retail stores
- Information kiosks or administrative consoles for control rooms and multimedia centers
- Tradeshows, hospitals, auditorium and command rooms
- Classrooms, training center and conference room
- Live stage events
 |
Long Range Audio Transmission
This digital audio extender can transmit digital S/PDIF audio signal for 990ft
or 300 cable run while maintaining superior audio integrity with the same clear and sharp sonic quality outputs all the way as the original input.
No audio signal loss, no noise and no degrading quality after the long cable run.
Comprehensive Digital Audio Format
Support
Support all digital PCM and multi-channel S/PDIF
surround audio formats such as PCM 2-CH LPCM 5.1 or 7.1, DTS 5.1, Dolby Digital, Dolby Digital Plus.
 |

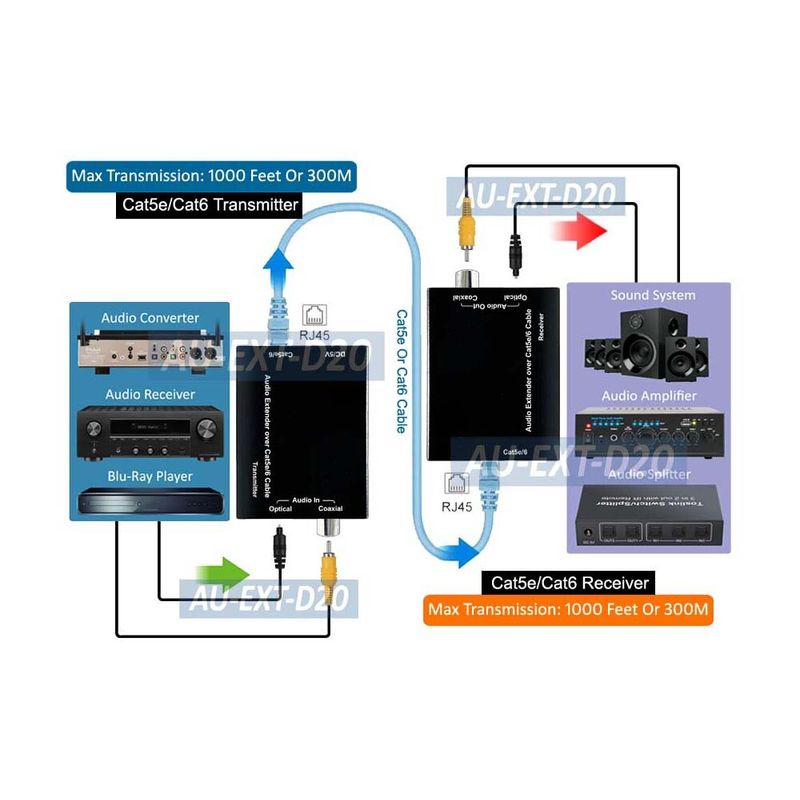

Easy Setup
The installation is very easy. No configuration needed at all.
The local transmitter should be connected to digital audio source such as CD/DVD player, computer, HD cable box, Blue-ray player, etc.
The receiver module should be placed at the remote location for connection with A/V receiver, stereo amplifier, speakers and so on.
Finally the transmitter and receiver can then be linked using standard Cat5e or Cat6 cable. Only the transmitter or receiver unit needs to be powered for minimizing the load on your HD or computer audio sources.
 |
Dual Digital Audio Transmission
This digital audio extender kit supports 1 optical audio input and 1 coax
S/PDIF input.
Optical audio input to the transmitter will be sent through the optical signal output from the receiver located on the far end.
Coaxial input will be sent to the coaxial signal output of the receiver unit.
Both type of digital audio can be transmitted at the same time.
 |
Using Low-Cost Cat5e Cat6 Cable For Maximum Flexibility
CAT-5e and CAT-6 twisted pair cables are widely popular and
easier to be hidden away in
hallways, buildings and behind walls.
They are also easy to be customized in cable length as needed. No
need to have digital audio cables prefabricated.
 |
- Cost-effective solution for extending the digital S/PDIF audio through using single low-cost Cat5e or Cat6 cable for up to 990 feet or 300 meters.
- Supports all digital PCM and multi-channel S/PDIF surround audio formats such as PCM 2-CH LPCM 5.1 or 7.1, DTS 5.1, Dolby Digital, Dolby Digital Plus.
- Audio transmitted digitally with no signal loss.
- Supports single optical input to optical signal output.
- Supports single coaxial input to coaxial signal output.
- Dual digital audio inputs: 1 optical Toslink input with 1 coax SPDIF input.
- Easy to customize the cable length as needed. No need to have digital audio cables prefabricated.
- Maintaining superior audio integrity and sharp sonic quality all the way as the original input.
- Clear digital audio sent over long distance with no loss on the sonic quality.
- Make out-of-the-way connections for further distribution and integration.
- Digital Audio Format Support: digital PCM stereo and multi-channel LPCM 5.1, LPCM 7.1, DTS 5.1, Dolby Digital, Dolby Digital Plus.
- Max Transmission Range: 300m or 990ft over Cat5e or Cat6 cable
- Data Transmission Rate: 12.8 Mb/s
- Max Sampling Rate: 96 kHz performance
- Digital Audio Input Connectors:
- Toslink x 1 for optical audio input
- Phono RCA x 1 for coaxial S/PDIF type audio input
- Digital Audio Output Connectors:
- Toslink x 1 for optical audio output
- Phono RCA x 1 for coaxial S/PDIF type audio output
- Cable Link Connectors: RJ-45 Shielded x 1 on both TX and RX unit.
- Power Supply: AC 110-240V input with DC 5V, 1A output
- Dimension: 60mm [W] x 47mm [D] x 20mm [H]
- Digital audio over cat5/6 TX module x 1
- Digital audio over cat5/6 RX module x 1
- DC 5V power adapter x 1
- User manual
