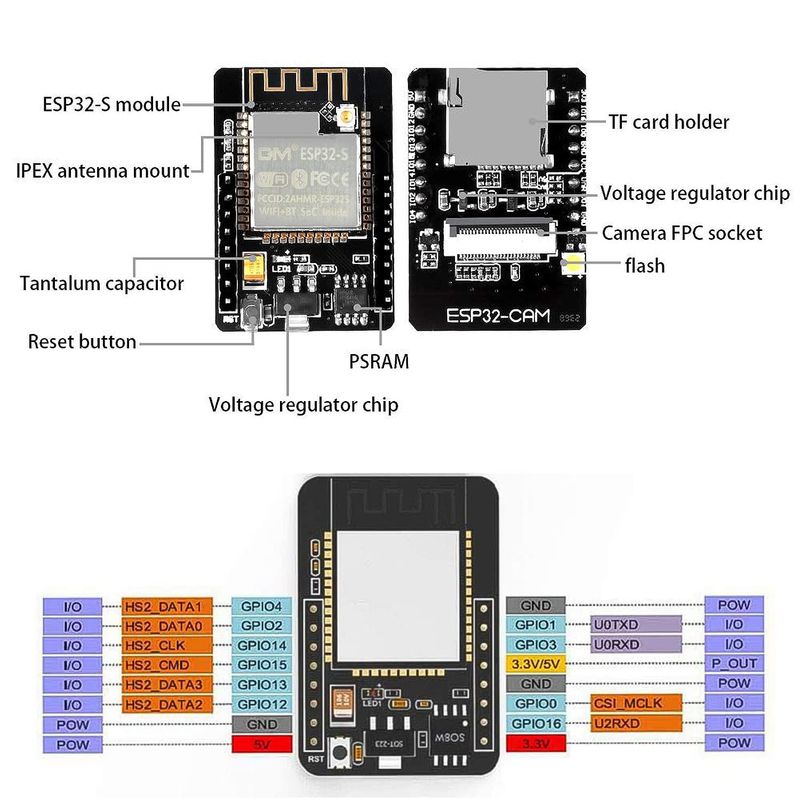

Diymore 2pcs for ESP32-CAM-MB WiFi Bluetooth Development Board, for ESP32 Dual-core Wireless Development Board with 2640 Camera TF Card Module

Brand: diymore Sold By: TopSelected
Out of Stock
Ships from United Kingdom Arrives in 10-15 business days

Free Standard Shipping on orders over 89

30-day returns in original condition. Food, medicine & supplements are non-returnable.
Delivery:
14
September2026
-
21
September2026
Diymore 2pcs for ESP32-CAM-MB WiFi Bluetooth Development Board, for ESP32 Dual-core Wireless Development Board with 2640 Camera TF Card Module

Diymore 2pcs for ESP32-CAM-MB WiFi Bluetooth De...

$57.54

Description
  • The main frequency is up to 240MHz, and the computing power is up to 600 DMIPS
  • Built-in 520 KB SRAM, external 8MB PSRAM
  • Support UART/SPI/I2C/PWM/ADC/DAC and other interfaces
  • Support 2640 camera and OV7670 cameras, built-in flash
  • Support STA/AP/STA+AP working mode.

  • Color: 2PCS Micro USB
  • Manufacturer: diymore
  • Part Number: XF01022

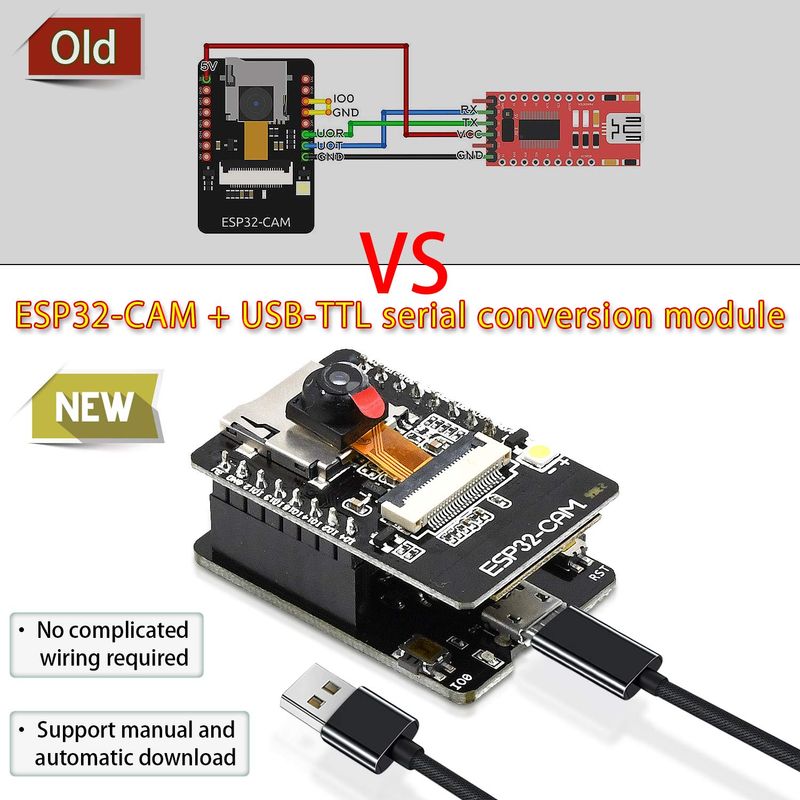

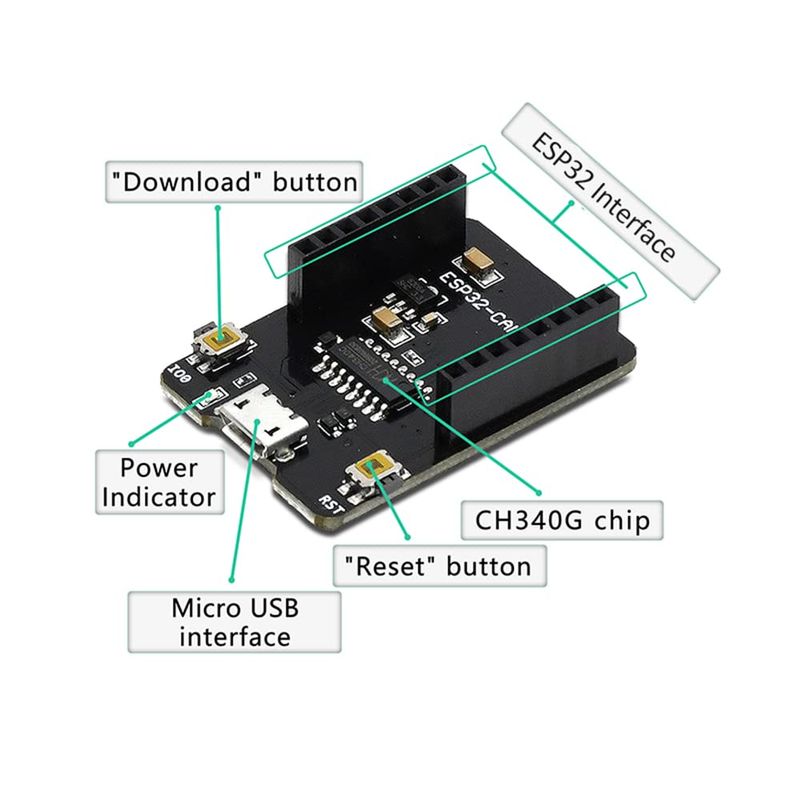

Adopting Micro USB interface, convenient and reliable connection method, applied to various IoT hardware terminal occasions. Parameter: Using low-power dual-core 32-bit CPU, it can be used as an application processor. Support picture WiFI upload Support TF card Support multiple sleep modes. Embedded Lwip and FreeRTOS Support Smart Config/AirKiss one-click network configuration Support secondary development Working voltage: 4.75-5.25V SPIFlash: default 32Mbit RAM: internal 520KB + external 8MB PSRAM Wi-Fi: 802.11b/g/n/e/i Bluetooth: Bluetooth 4.2BR/EDR and BLE standard Support interface (2Mbps): UART, SPI, I2C, PWM Support TF card: maximum support 4G IO port: 9 Serial port rate: default 115200bps Spectrum range: 2400 ~ 2483.5MHz Antenna form: onboard PCB antenna, gain 2dBi Image output format: PEG (only 2640 support), BMP, GRAYSCALE Transmit power: 802.11b: 17±2dBm (@11Mbps) 802.11g: 14±2dBm (@54Mbps) 802.11n: 13±2dBm (@MCS7) Receiving sensitivity: CCK, 1Mbps: -90dBm CCK, 11Mbps: -85dBm 6Mbps(1/2BPSK): -88dBm 54Mbps (3/464-QAM): -70dBm MCS7 (65Mbps, 72.2Mbps): -67dBm Power consumption: Turn off the flash: 180mA@5V Turn on the flash and adjust the brightness to maximum: 310mA@5V Deep-sleep: The lowest power consumption can reach 6mA@5V Moderm-sleep: the lowest can reach 20mA@5V Light-sleep: the lowest can reach 6.7mA@5V Security: WPA/WPA2/WPA2-Enterprise/WPS Working temperature: -20 ℃~ 70 ℃ Storage environment: -40 ℃~ 125 ℃, <90%RH Weight: 10g Application scenarios: Home smart device image transmission Wireless monitoring Smart agriculture QR wireless recognition Wireless positioning system signal
