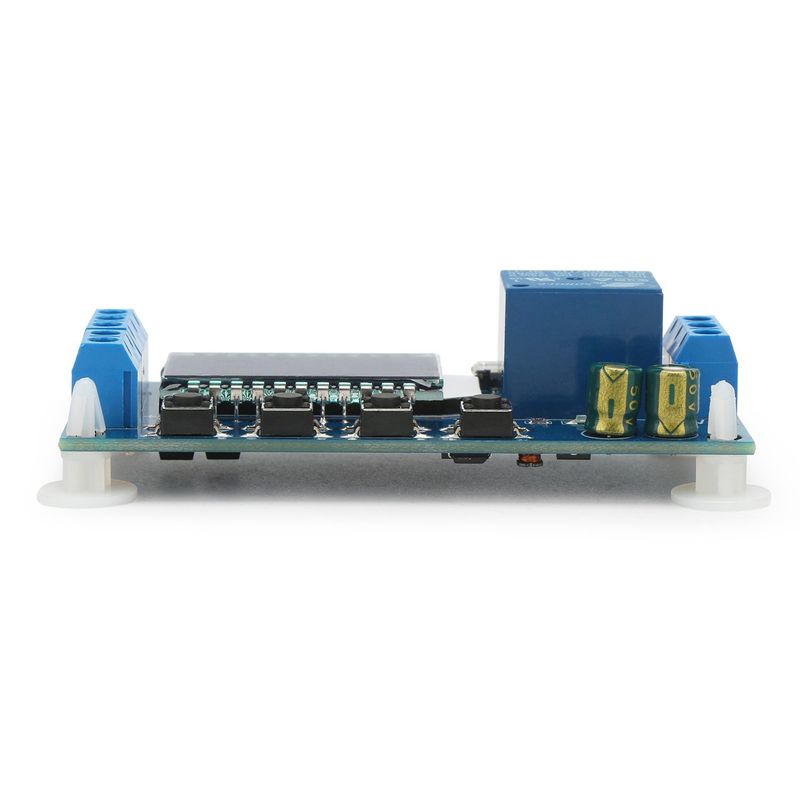

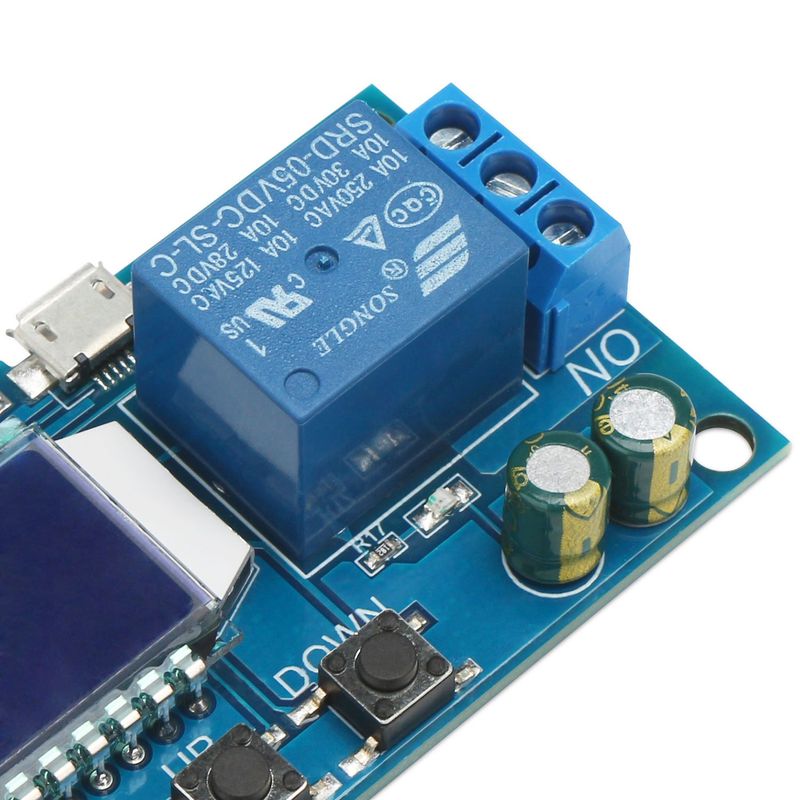

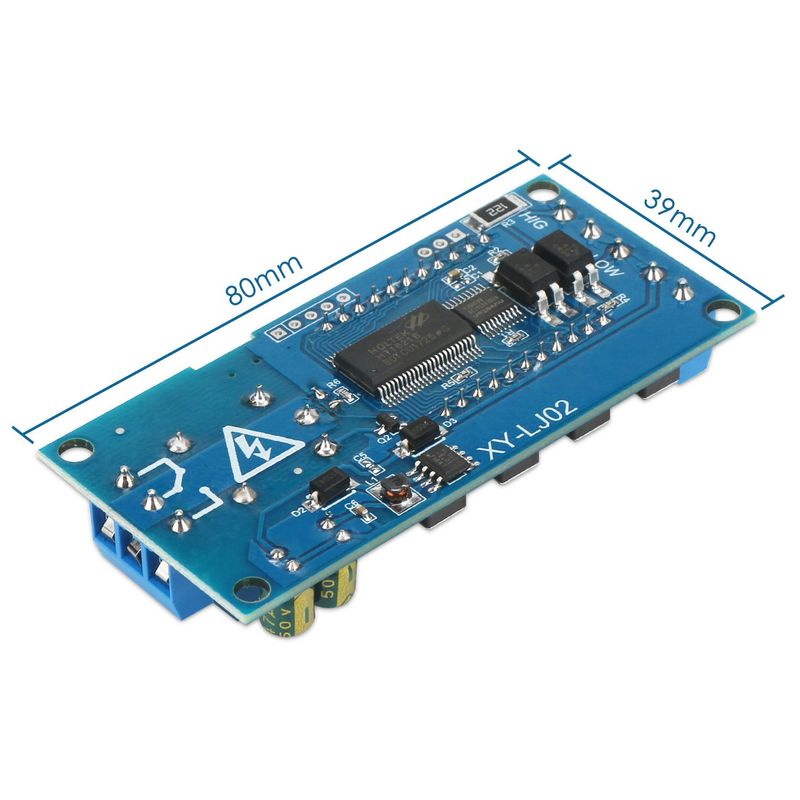

DROK Time Delay Relay Timer Delay Controller Module DC 5V 12V24V Delay Off Cycle Timer 0.01s-9999mins Adjustable Trigger Delay Switch Control Relay Board with LCD Screen Support Micro USB 5V Input
- The working voltage range of DROK timer delay relay module supports DC 6-30V, Micro USB 5.0V power supply. Supports high level triggers 3.0v-34v and low level triggers 0v-0.2v Timing range is 0.01? It is 9999 mins and is continuously adjustable
- LCD Display: The relay board is designed with LCD display and displays the current mode and parameters clearly and directly
- Sleep Mode: LCD backlight will automatically close if no operation within 5 minutes. You can wake up any button
- Independent parameters: OP/CL/LOP parameters can be changed and stored and they are individual
- AUTOMATIC STORE: All parameters are automatically saved by a power outage
- Color: Blue
- Manufacturer: DROKING
- Package Quantity: 1
- Part Number: 200350_JPN
Product parameters:
Operating Voltage: 6V - 30V, Support Micro USB 5.0V Power Supply
Working current: 50mA
Static current: 15mA
Max output load: DC 30V 5A and AC 220V 5A
Trigger signal source: High level trigger (3.0 V - 24.0 V), Low lever trigger (0.0 V - 0.2 V), Switching value control (potential-free contact)
Service life: more than 100,000 times
Operating Temperature: -40 - 85 °C
Additional Features:
a)Automatic sleep function/low power function: When the running interface, long press will automatically open or close the sleep function. (L-P choose on to start the high spring function and off to turn off the high spring function).
b) Selection of Relay function: In the operation interface, short press the STOP, the relay function starts or ends the relay function, "ON" is in conductive state, the relay is normally on, "OFF" is conductive state, when the relay is not turned on; the system will flash "OUT"
c) Parameter view: In the operation interface, short press the SET will show the current parameter settings on the system without affecting the normal operation of the system.
d) Switch Display: In P-5 P-6 mode, press DOWN to switch the display content (running time / cycle time).
Package Includes:
1 x Time Delay Relay Module
