DSD TECH SH-U09C3 Isolated USB to TTL Adapter Featuring FTDI FT232RL IC

Brand: DSD TECH Sold By: TopSelected
$56.64 In Stock
Ships from United Kingdom Arrives in 10-15 business days

Free Standard Shipping on orders over 89

30-day returns in original condition. Food, medicine & supplements are non-returnable.
Delivery:
19
August2026
-
26
August2026
delivery Delivery Guarantee arrow
check$5 Credit If Delayed
checkFull Refund If Item Is Damaged
check15-Day Full Refund If No Updates
check30-Day Full Refund If Not Delivered
DSD TECH SH-U09C3 Isolated USB to TTL Adapter Featuring FTDI FT232RL IC

DSD TECH SH-U09C3 Isolated USB to TTL Adapter F...

$56.64

Product Details
  • Industrial-grade USB isolation module: ADI's iCoupler signal isolation technology is used to fully protect the computer's USB port from external short-circuit, shock and other damage.
  • The main chip is FT232RL from FTDI ,High stability. LED indicator for TX,RX,Power,It is very useful when you are debugging or downloading.
  • Protective case: We have installed a protective case for this isolated USB to TTL Converter, which prevents your hands from directly touching the PCB and IC.
  • Both 3.3V and 5V Logic TTL are supported. You can switch by jumper.
  • DSD TECH offers a 1-year warranty and lifetime technical support for this isolated USB-to-TTL adapter.If you meet any question, Please contact us, We will fix your issue within 24 hours.

  • Color: Multicoloured
  • Manufacturer: DSD TECH
  • Model Number: SH-U09C3
  • Package Quantity: 1
  • Part Number: SH-U09C3
  • Size: Small

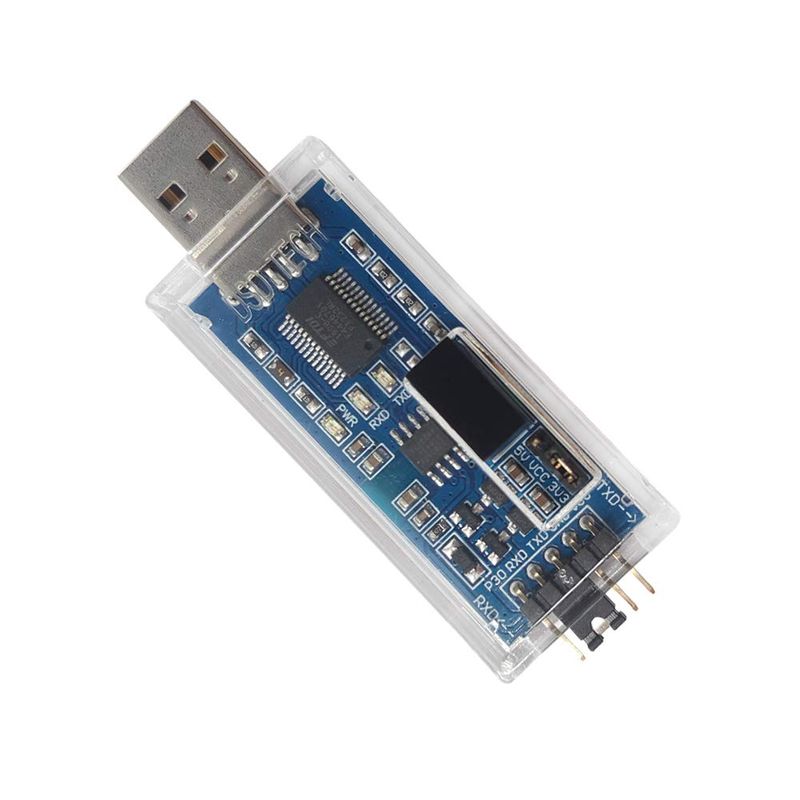

This FT232 USB to TTL adapter can isolate the signal and power, it comes with two isolation chips, even if your external circuit is short-circuited or high voltage is applied, it will not damage your USB port, thus protecting your computer, this USB to TTL UART isolation module can handle all kinds of complex and harsh conditions.

Important Note:
This isolated USB to TTL adapter does not have 2 pins for RTS and CTS. If you need to use these 2 pins, don't buy this adapter.

Specification:
Model: SH-U09C3
Main chip: FTDI FT232RL
Isolation voltage: 1500VDC voltage isolation, with continuous short circuit protection
Pin Definitions: RXD, TXD, GND, VCC, P30 (P30 for STC MCUs only)
TTL level: 3.3V or 5V
USB interface: 2.0
Maximum speed: 3Mbps

About Indicator LEDs:
PWM LED: Power indicator
RXD LED: The data transfer indicator flashes when there is data in the USB port.
TXD LED: The data reception indicator flashes when the USB port receives data.

List of supported systems
1,Windows XP,7,8,10
2. Ubuntu 11.10, kernel 3.0.0-19 or above
3, Mac OS X 10.3 to 10.8 (32-bit and 64-bit)
4. Mac OS X 10.9 and above (64-bit)
5. Windows CE 4.2-5.2, 6.0/7.0 and Windows CE 2013
You can download the driver directly from FTDI's website

Works with software
HyperTerminal, TeraTerm, WinDBG, all open source serial software on Linux, etc.

Packing List:
1 x Isolated USB to TTL Adapter
1 x User Manual
1 x 4 PIN DuPont cable

Guarantee:
DSD TECH offers a 1-year warranty and lifetime technical support for this isolated USB to TTL adapter. If you encounter any problems, please contact us and we will solve your problem within 24 hours.

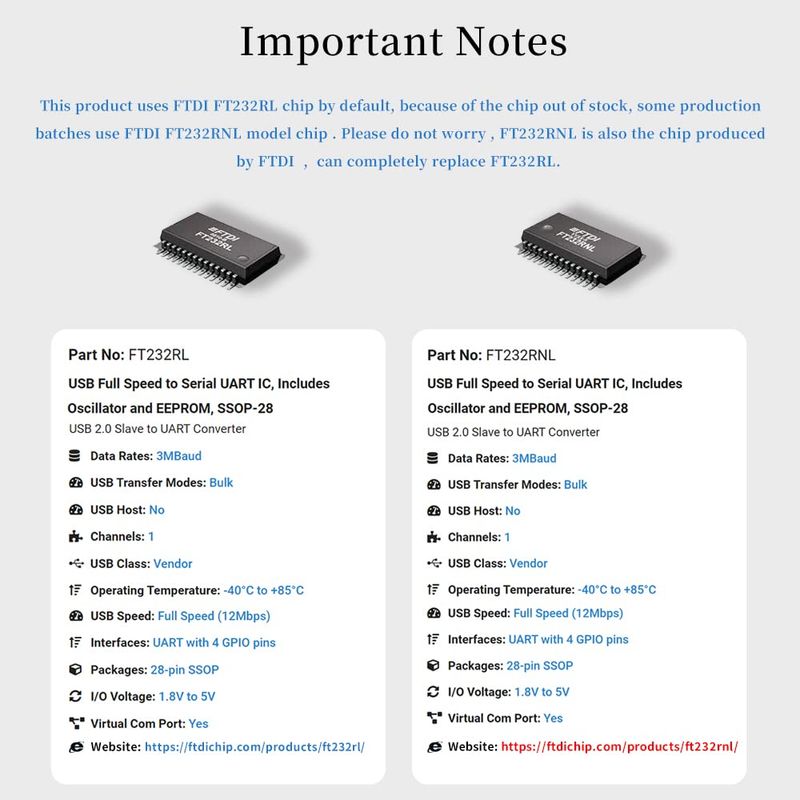

Important
This product uses FTDI FT232RL chips by default, and due to the shortage of chips, some production batches use FTDI FT232RNL model chips. Please
