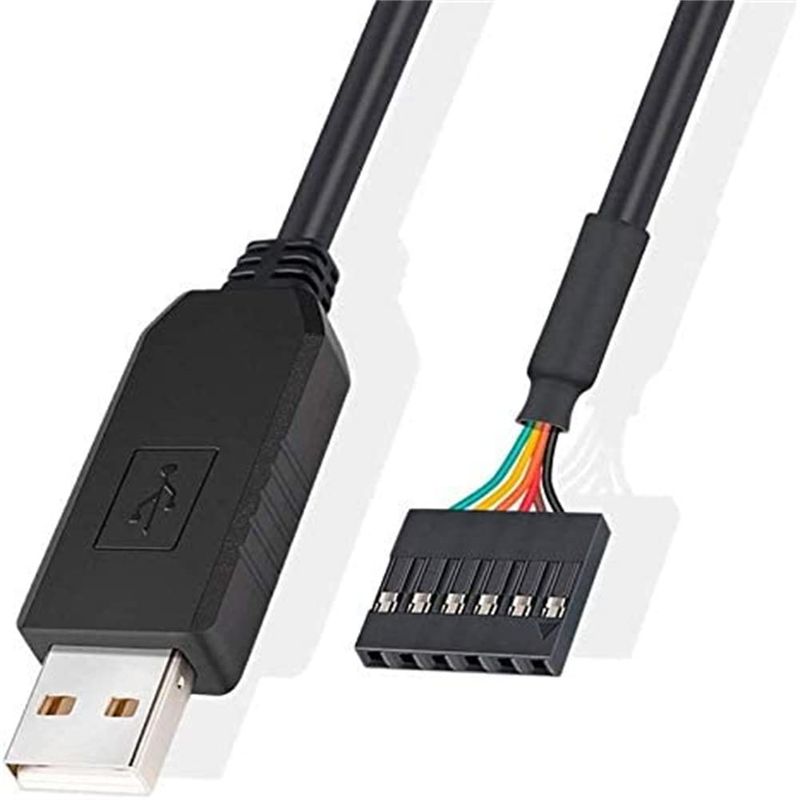

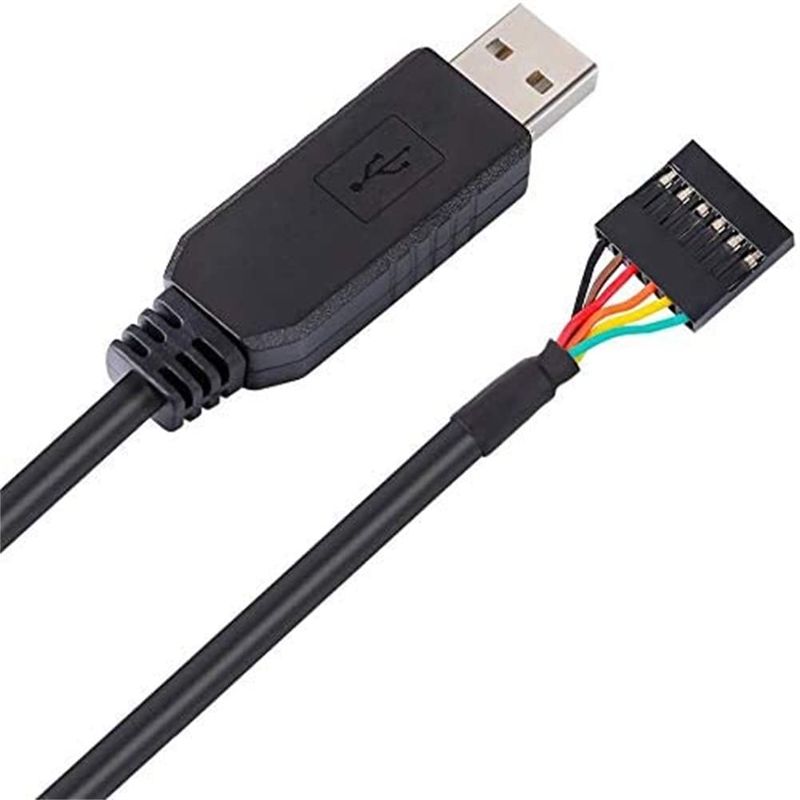

DTECH FTDI USB to TTL 3.3V Serial Adapter Debug Cable 0.1 inch Pitch Female Socket Header UART IC FT232RL Chip Windows 10 8 7 Linux Mac (1.8m)

Brand: DTECH Sold By: TopSelected
$50.43 In Stock
Ships from United Kingdom Arrives in 10-15 business days

Free Standard Shipping on orders over 89

30-day returns in original condition. Food, medicine & supplements are non-returnable.
Delivery:
26
August2026
-
02
September2026
delivery Delivery Guarantee arrow
check$5 Credit If Delayed
checkFull Refund If Item Is Damaged
check15-Day Full Refund If No Updates
check30-Day Full Refund If Not Delivered
DTECH FTDI USB to TTL 3.3V Serial Adapter Debug Cable 0.1 inch Pitch Female Socket Header UART IC FT232RL Chip Windows 10 8 7 Linux Mac (1.8m)

DTECH FTDI USB to TTL 3.3V Serial Adapter Debug...

$50.43

Description
  • 6 ft FT232 USB to TTL serial adapter 3.3V (with 6 pin 0.1” pitch female socket header) connects devices with 3.3 V logic level UART signals interface to a laptop via USB port
  • A genuine FT232RL chip module is housed in USB 2.0 type A male terminal for wider compatibility and supports reliable data transfer rates
  • 6 feet FTDI USB to TTL serial cable 3V3 (6 way outputs) provides access to Tx, Rx, RTS#, CTS#, VCC (5v) and GND (power line provides 5V and data signal is at 3.3V)
  • FTDI chipset on the PCB board has configurable internal EEPROM and UART signals can be individually inverted by configuring the EEPROM
  • 6 pin header USB TTL UART converter cord is compatible with Windows 10, 8, 8.1, 7 (32, 64-bit), 2008/XP/Vista/CE, MacOS, Linux 2.4 and greater; ideal USB 2.0 debug cord for Vendor ID re-write, router, GPS, set top box, transmitter, flash firmware on hard drive, etc.

  • Color: Black
  • Manufacturer: guangzhouditedianzikejiyouxiangongsi
  • Model Number: DTech-FT232RL
  • Package Quantity: 1
  • Part Number: DT-6554
  • Size: 1.8m

6-Foot FT232RL FTDI USB to TTL serial adapter cable for 3.3V logic level serial communication
It is built with FTDI FT232 chip, FTDI’s royalty-free VCP allow for communication as a standard COM port and D2XX ‘direct’ drivers provide DLL application programming interface; a great conversion data cord to meet with your needs of debugging, boot-loading, programming, etc.

NOTE: If any installation or usage issues, please email us or you may download a driver and usage guide on FTDI official website

The original FTDI chip is embedded in the USB-A end; 6 way 0.1” header connector with VCC (5V power) and GND (ground), as well as RXD, TXD, RTS and CTS at 3V logic level.

Applications:
Upgrading Legacy Peripherals to USB
Interface Microcontroller UART or I/O, FPGA / PLD to USB
Replace MAX232 type level shifters allowing for direct connection of products to PC
Industrial Control / USB Software / Hardware Encryption Dongles

Features
- The I/O pins of the FTDI wire are configured to operate at 3V3 logic level - Entire USB protocol handled by the electronics in the cable;
- UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity;
- Data transfer rates from 300 to 3M baud rate at TTL levels;
- Fully assisted hardware (RTS#/CTS#) or X-On / X-Off software handshaking;
- Internal EEPROM with users writable area; - Supply voltage comes from USB bus, no external supply required;
- UHCI / OHCI / EHCI host controller compatible

Specific
Interfaces: USB 2.0 type A Male Port ; 6 pin Female Socket Header
Supports Windows 2008, XP and XP 64-bit, Vista and XP 64-bit, CE 4.2, 5.0 and 6.0; Windows 7, 8, 8.1, 10 (32 and 64-bit); Mac OS 8/9 , OS-X; Linux 2.4 and greater

What’s Included
1 x USB to Serial TTL Level Converter Cable
1 X User Manual
