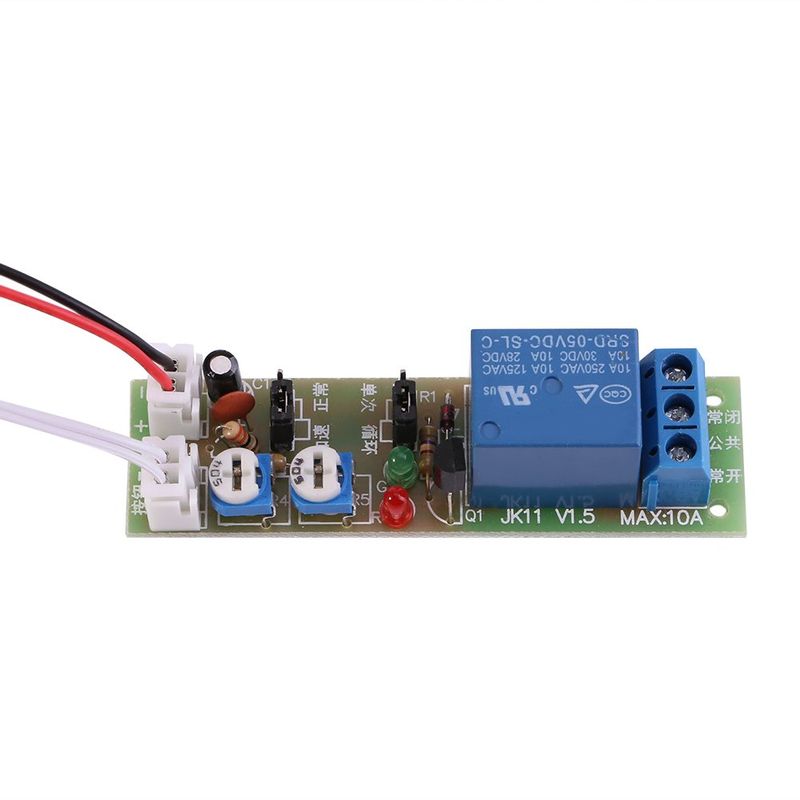

EBTOOLS 1pc Delay Timer Module Adjustable Cycle Timer Delay On/Off Switch Relay Module DC 12V 0-15min
- Timer Relay Module: This timer relay module has high precision and stability and reliable performance
- 【2 Modes】There are 2 modes, supporting monmode (1 time) and cycle mode, so you can simply switch between modes by adjusting the jumper
- Wide Setting Time Range: There is a wide range of time that can be set up, but you can adjust both on and off time
- 【ON AND OFF CONTROL】It is a great relay module to control the repeat power on and off for both traffic strokes or burn test of equipment and products
- Wide range of uses: It can be widely used in timer activator, machine repetitive test circuit, aquarium intermittent pump, etc
- Color: Multicolored
- Package Quantity: 1
Specifications:
Type: 0 - 15 mins / DC 12 V
Maximum load capacity: 10 A 250 VAC, 10 A 30 VDC
Size: 2.75 x 0.78 inches (70 x 20 mm).
Time error: <2%
T1 (relay turnon delay time), T2 (relay turnoff delay time)
1 Time Mode (Jumper OP3):
1. When the module is powered, the relay is turned on, T1 delay will occur and the relay will be disconnected.
2. When triggered by the delay process, it will immediately stop delay when it is triggered again.
Cycle Mode (Jumper OP4):
1. When the module is powered, the relay is turned on, the delay T1, when the relay is disconnected, the delay T2 will occur, and the relay is turned on again. That cycle. T1 and T2 are set by two adjustable resistors.
2. When triggered by the delay process, it will immediately stop delay when it is triggered again.
How to set the time quickly
You can quickly set the time by measuring the voltage of the resistor (Uc). For example, take 5V 15 minutes module. Uc = 2V, Time = 2V/5V/15min = 6min
Package Includes:
1 x Timer Relay Module
