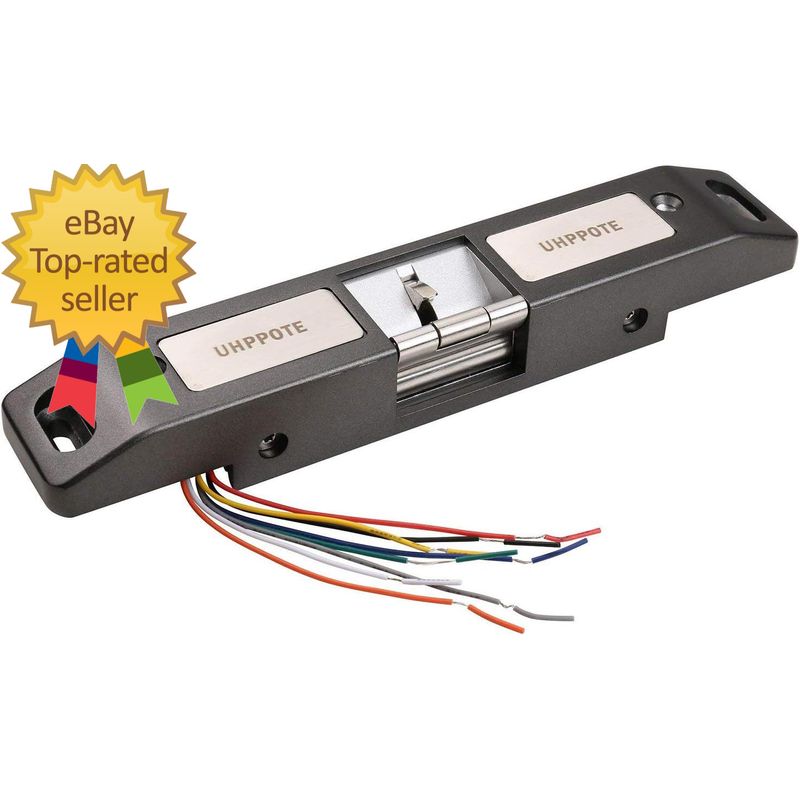

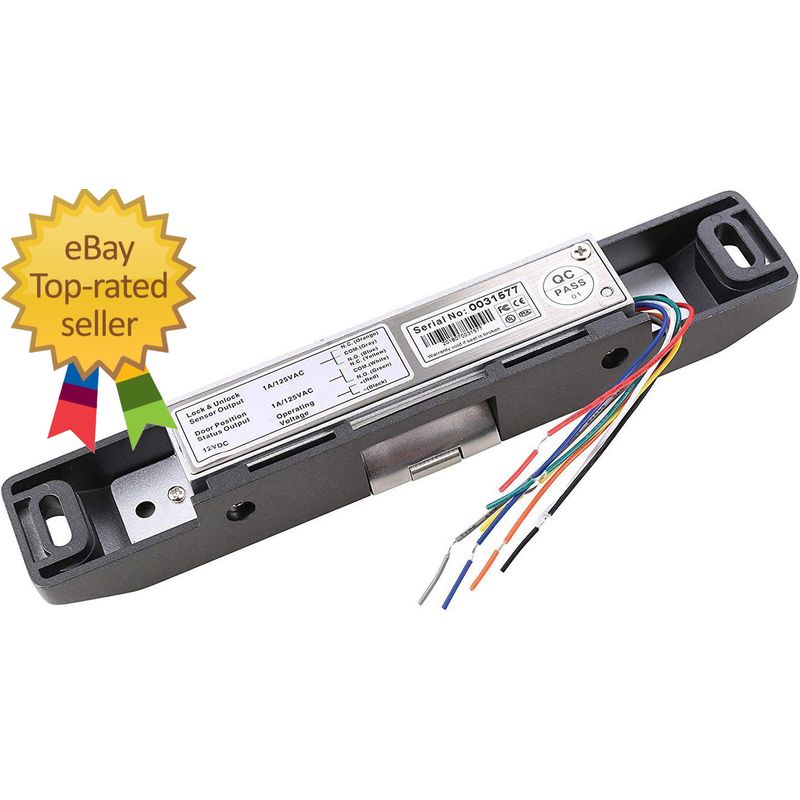

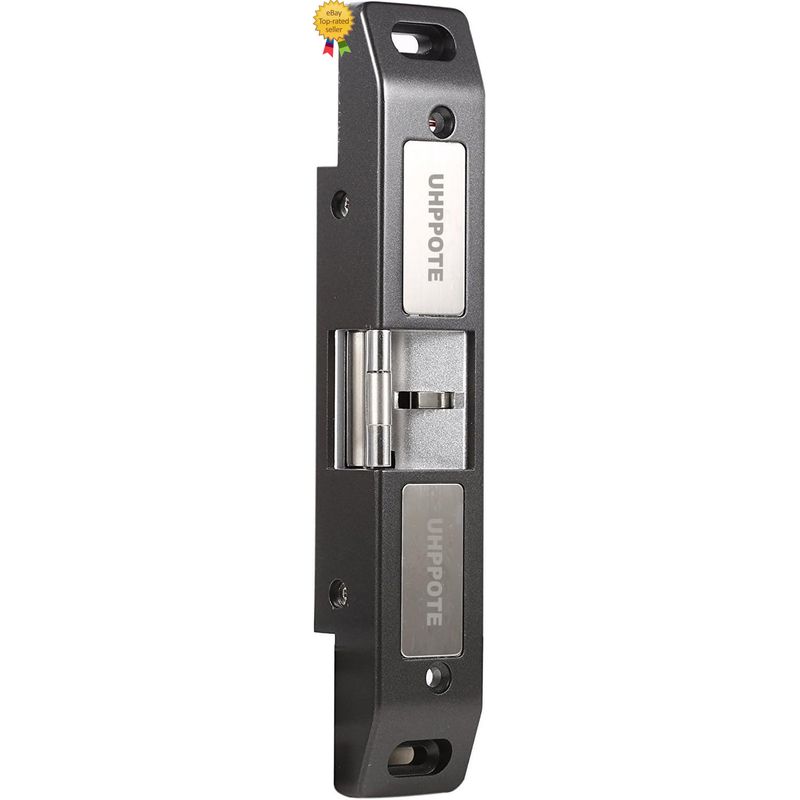

Electric Strike Lock 12VDC for Access Control Fire Exit Door Rim Exit Devices for Push Bar
Description
- ✅Field-selectable for fail-safe or fail-secure operation
- ✅This strikes feature an ultra-compact design and adjustable stainless steel keepers with over 2,200lbs [1000kg] of holding force in fail secure mode. The strikes release electrically with up to 25 lbs of door preload. Single solenoid operates on 12VDC power. Provides electrical remote control, allowing door to open without actuation of the exit device.
- ✅Suitable for fire exit door with Push-rod lock.The operating principle of electric strike is that electromagnetism produces the force to pull or push the release lever so that to lock or open the door
- ✅This electric Strike is designed for rim exit devices with 3/4" [19.1 mm] Pullman latchbolts. For Indoor Use Only.
- ✅Push panic bar need buy seperately, please refer to ASIN: B06XWY91HQ
Product Description
Advantage:
- Field-selectable for fail-safe or fail-secure operation
- Suitable for fire exit door with Push-rod lock.The operating principle of electric strike is that electromagnetism produces the force to pull or push the release lever so that to lock or open the door
- Enhanced stress structure design
- 1000000 solenoid valve special design
- Power to open the door or door adjustable power supply
Specifications:
- Faceplate Dimensions (LxW): 9-1/16"x1-19/32" (230x40.5mm)
- Strike Opening: 1-37/64"x1-5/32"x15/16" deep (39.9x29.5x24mm deep)
- lock tongue structure: 304 Stainless Steel
- Holding Force: 2200lbs (1000kg)
- Voltage: DC12V
- Current: 12V/220mA
- Signal Output: Lock Status Output NO/NC/COM
- Special design: applies to all brands of fire push rod lock
- Suitable For: Supporting rod lock fire door
- Surface Temperature: Within 68℉ (20℃)
- Suitable Temperature: 14℉-131℉ (-10℃~55℃)
- Operating Humidity: 0~90%(non-condensing)
- Face plate Housing: High temperature paint
- Lock tongue: Surface by coating nickel
- The door open: 90 degrees
- Weight: 1.65lbs (0.75kg)
Package:
- 1 x Electric strike lock designed for rim exit devices
- 1 x Install kit
- 1 x User manual

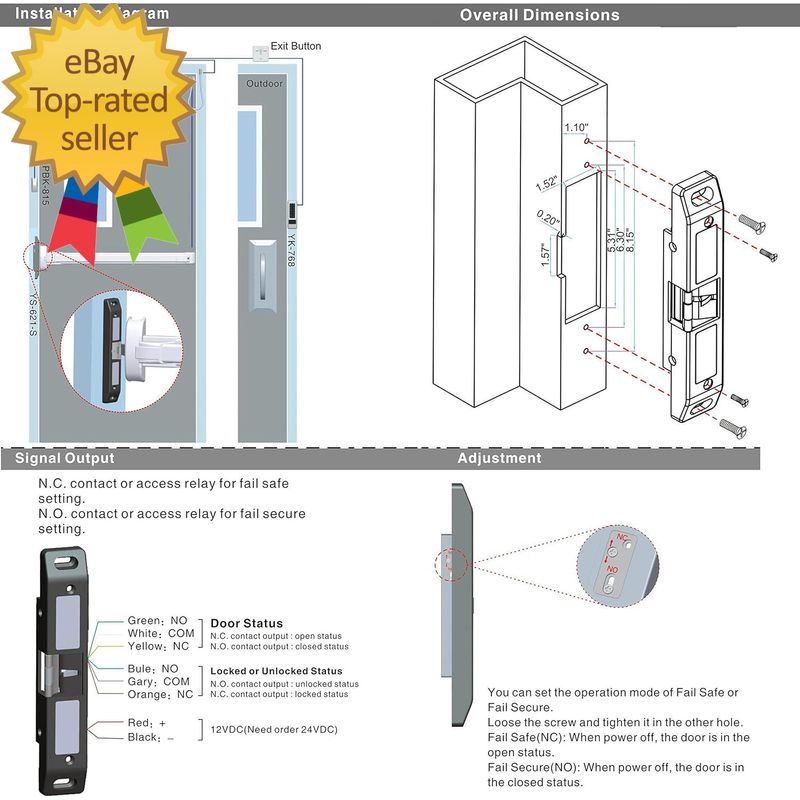

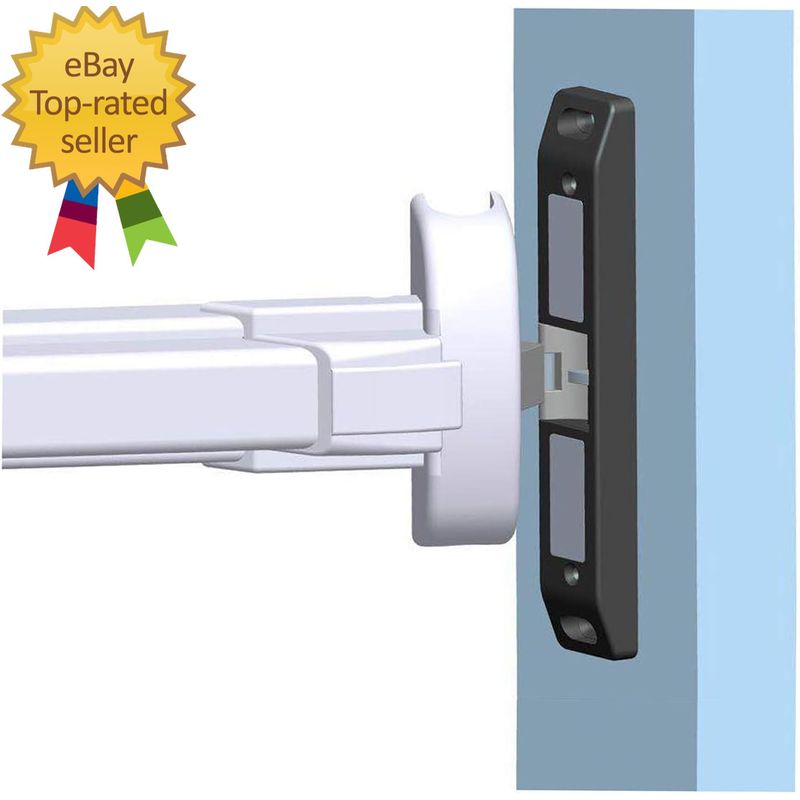

Installation Diagram:
- Special design: Applies to all brands of fire push rod lock
- Push panic bar need buy seperately
Singal Output:
Door Status:
- NC contact output: open status
- NO contact output: closed status
- NO contact output: unlocked status
- NC contact output: locked status
Operation Mode Adjustable:
- You can set the operation mode Fail Safe or Fail Secure.
- Please check the working mode before install.
Attention:
- For Indoor use Only
- Faceplate Dimensions (LxW): 9-1/16"x1-19/32" (230x40.5mm)
- Before placing order, please check the size of your door’s frame to avoid wrong purchase.
| Item model number | UT0511-621 |
| Style | Emergency Gate |
| Power Source | DC |
| Country of Origin | China |
| Batteries Included? | No |
| Number of Pieces | 10 |
| Batteries Required? | No |
| Finish | Painted" or "Coated |
| Material | Aluminum, Stainless Steel |
| Model Name | UT0511-621 |
| Controller Type | Push Button |
| Finish Type | Painted" or "Coated |
| Item Package Quantity | 1 |
| Item dimensions L x W x H | 9.1 x 1.6 x 1.2 inches |
| Control Method | Remote |
| Item Weight | 1.65 pounds |
| Lock Type | Electric Strike Lock |
| Special Features | Push Button |
| Special Feature | Push Button |
| Part Number | UT0511-621 |
| Color | Silver, Black |
| Is Discontinued By Manufacturer | No |
| Shape | Rectangular |
| Voltage | 12 Volts |
| Recommended Uses For Product | For fire exit door |
| Included Components | Electric Strike Lock |
| Product Dimensions | 9.1 x 1.6 x 1.2 inches |
