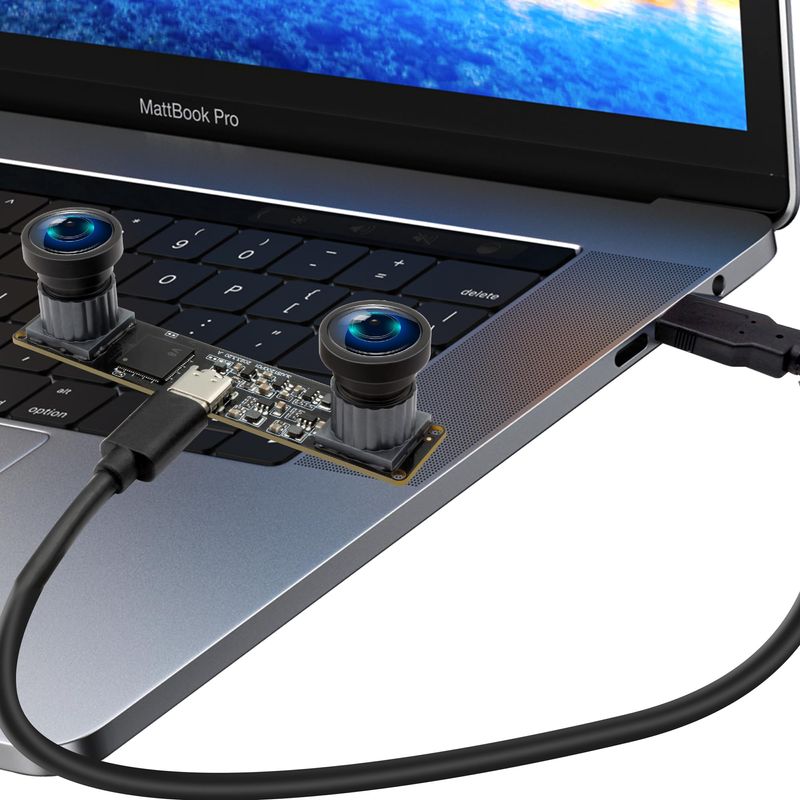

ELP 1200P 60fps Binocular Global Shutter USB Camera Module for Computer - Wide Angle 120 4MP Dual Lens Synchronization PC Camera
- 3D Stereo USB camera module 4.0 megapixel HD 3200X 1200P webcam board.
- High frame rate 3200X1200 MJPEG@60fps.
- Low distortion camera M9 Mount dual lens synchronous, HFOV 120greee, interchangeable.
- Global Shutter: exposing entire sensor at one time, shooting high-speed moving objects in crisp sharp images.
- High Quality image sensor 1/2.9 inch OG02B10, high speed USB 2.0 interface to Type C in camera.
- Camera with USB, Plug and play, no need any driver to run.
- Support UVC compliance for use in OS Windows, Linux, Android, Mac
- Support OTG function, can connect Android mobile, pad.
- Small outline, light weight, mini size 80*13.3mm for embedded application.
- Application: robot and machine vision, monitoring 3D printer, lightburn camera, virtual reality, augmented reality, biometric retina analyze, 3D measurement, Intelligent transportation system, people counting&tracking, astrophotography etc.
- Manufacturer: Shenzhen Ailipu Technology co.ltd
- Model Number: 1200p 60fps dual lens usb camera module
- Package Quantity: 1
- Part Number: dual lens usb camera module for pc
Model ELP-USB3DGS1200P01-H120
Sensor: OG02B10
Sensor Size: 1/2.9 inch
Pixel Size: 4857µm x 3955 µm
Max. Resolution: 3200(H)X1200(V)
Default Resolution: 3200(H)X1200(V)
Compression Format: MJPEG
Resolution & Frame rate MJPEG:
3200X1200@60fps / 2560X720@60fps / 1600X600@120fps
1280X480@120fps / 640X240@120fps
Sensitivity: 3.7V/lux-sec@550nm
Min illumination: 0. 1 Lux
Shutter Type: Global Shutter
Connecting Port Type: USB2.0 High Speed
Free Drive Protocol: USB Video Class(UVC)
Support OTG Protocol: USB2.0 OTG
AEC Support
AWB Support
Adjustable Parameters Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain,
White balance, Backlight Contrast, Exposure
Lens Parameter: M9 Lens
Power Supply: USB BUS POWER Type-C
Operating Voltage: DC 5V
Working Current: 180mA~230mA
Storage Temperature: -20~85℃
Working Temperature: -10~60℃
Board Size /Weight: 80X16.5mm / About 45g
Cable Standard: 1.2m
Operating System:
Request Win XP/Vista/Win7/Win8/Win9/Win10/Win11 etc.
Linux with UVC(above linux-2.6.26)
MAC- OS X 10.4.8 or later
Android 4.0 or above with UVC
