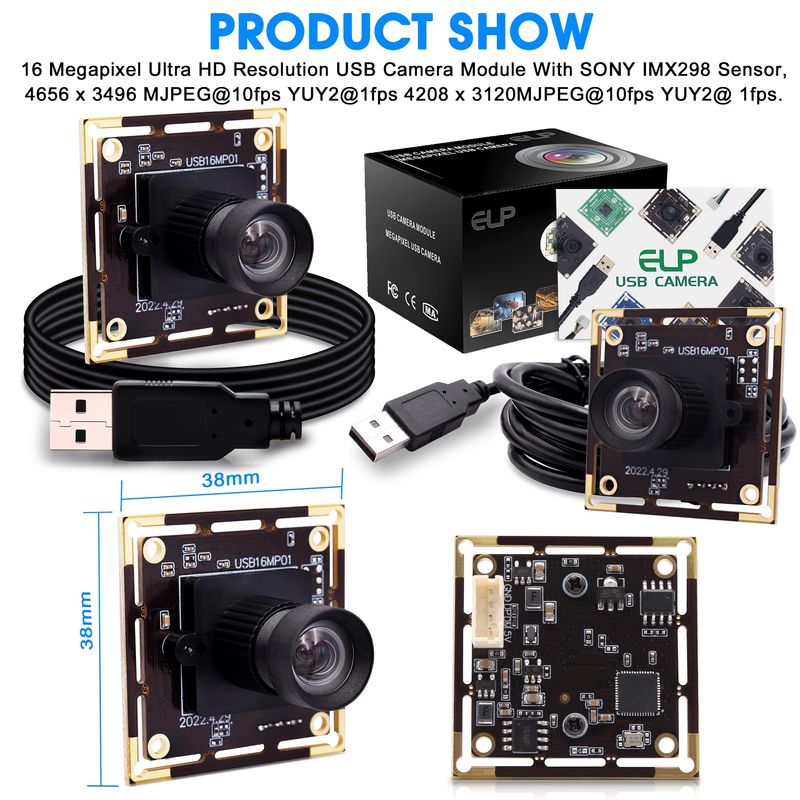

ELP 16MP USB Camera 4656x3496 Sony IMX298 Sensor, USB2.0 Camera Module UVC OTG Plug Playback USB Webcam Support OPENCV Devices for Windows Android Linux Mac(L75)
- HD or above: 16 megapixel USB camera module adopts 1/2.8 inch Sony IMX298 image sensor for sharp images and accurate color reproduction. Size 38*38mm/32*32mm Extreme small profile and thin profile for applications embedded in the USB camera plate
- 75 Degree Fixed Focus Lens: This camera module has a 95 degree FOV M12 lens to transmit the most realistic image effect. The case has a removable 4-pin connector, 8 mounting holes, and 1 meter USB cable. M12 Mount Lens Changeable Fixed Focus Camera Lens
- 1/2.8" CMOS Sony IMX298 Image Sensor: The deviation of quality and low color reproduction produces sharp images and more detail. Image format MJPEG or YUY2 option, high resolution camera can be used with any video system for personal or industrial use. There are two hole patterns on the PCB design which allows the camera to be more physically compatible than other cameras
- USB2.0 Plug and Play: 3496P USB Camera Module UVC Compliant, just connect the camera to your PC with your laptop, an OPENCV device with humanized features, or a USB cable included without the extra driver to install on the Raspberry Pi Plug and play compatible with Windows and Linux, including Raspberry Pi
- Wide Application robtic,3D printer,this 16 megapixels decision,USB camera module is suitable for you and search for camera to record time-lapse video or USB Highly recommended for video monitoring systems, live spills, video conferences, dash cams, and other field of view
- Color: 75° Lens
- Manufacturer: Ailipu Technology Co., Ltd
- Model Number: ELP-USB16MP01-L75
- Package Quantity: 1
- Style: ELP-USB16MP01-L75 ELP 16mp USB Camera Module 3496P Webcam Board Module
Specifications:
Model ELP-USB16MP01-L75
Sony IMX298 Sensor
Sensor Size: 1/2.8inch
Pixel Size: 1.12um
Image Area 6.4mm x 5.3mm
Maximum Resolution 4656(H) X 3496(V) 16Megapixel
Compression method: MJPG / YUY2 (YUYV) format.
Resolution and Frame
4656x3496MJPEG@10fps YUY2 1fps4208x3120MJPEG@10fps YUY2 1fps
4160 x 3120 MJPEG@10fps YUY2 1fps4000 x 3000MJPEG@10fps YUY2 1fps
3840 x 2160 MJPEG@10fps YUY2 1fps3264 x 2448MJPEG@10fps YUY2 1fps
2592x1944 MJPEG@10fps YUY2 1fps2320x1744MJPEG@30fps YUY2 1fps
2048 x 1536 MJPEG@30fps YUY2 1fps1920 x 1080MJPEG@30fps YUY2 5fps
1600 x 1200 MJPEG@30fps YUY2 5fps1280 x 960MJPEG@10fps YUY2 10fps
1280 x 720 MJPEG@30fps YUY2 10fps1024 x 768MJPEG@10fps YUY2 10fps
800 x 600 MJPEG@30fps YUY2 15fps640 x 480MJPEG@30fps YUY2 30fps
Minimum illumination of subject 0.5 lux
Shutter System, Electronic Rolling Shutter/Frame Exposure
Connection Port Type: USB 2.0 High Speed
Free Drive Protocol USB Video Class (UVC)
AEC: Supported, AWB: Yes AGC: Yes
Button Camera Support
Adjustableparameters:
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Backlight Contrast,
Exposure Gain, White Balance, Backlight Contrast, Exposure
Lens Parameters Standard 1.95mm lens, any other M12 mount lens
Power USB Bus POWER 4P-2.0mm Socket
Operating Voltage DC5V
Working flow: 150mA-240mA
Working temperature: -10 to 70
Storage Temperature: -20 to 85
Board size/weight: 1.5 x 1.5 inches (38 x 38 mm) (compatible with 1.2 x 1.3 inches (32 x 32 mm) / approx. 1.
Cable Standard 1M / Option 2M, 3M, 5M
Operating System Requirements
WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc.
Linux with UVC (linux-2.6.26 and above)
MAC-OS X 10.4.8 or later
Android 4.0 or above, equipped with UVC
