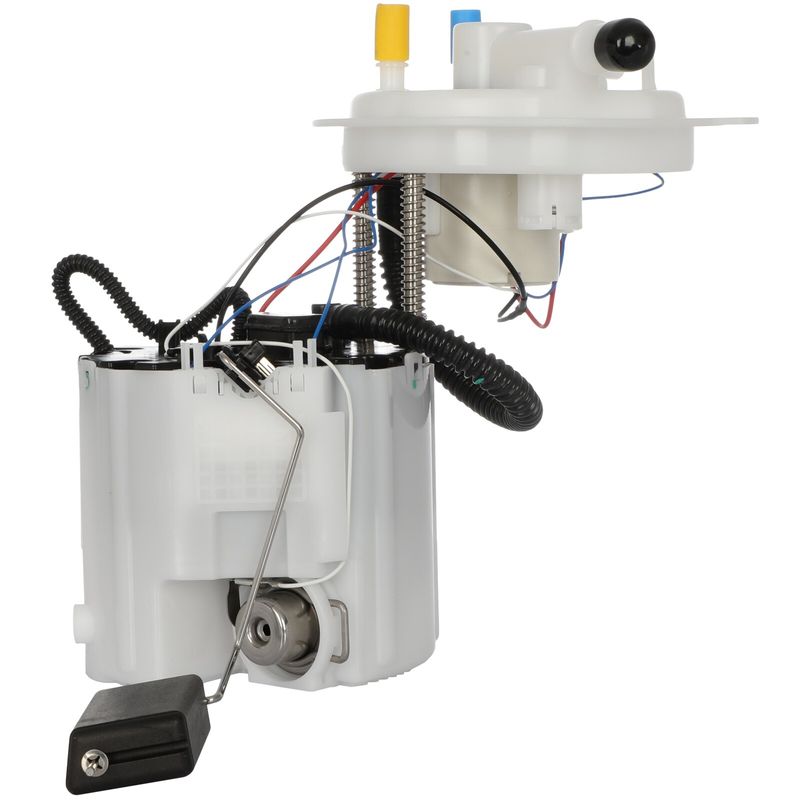

Fuel Pump Assembly For 2011 2012 Chevrolet Malibu L4 2.4L E4050M
|
|
|
|
|
|
|
|
|
|
|
The Function of the fuel pump is to supply fuel at a certain pressure to the engine fuel injection system.
However,the fuel pump have a limited life.If you notice any of the following signs with your car:
(1).Engine Sputtering at High Speeds
(2).Decreased Fuel Pressure
(3).Losing Power when the Vehicle is under Stress
(4).Inability to accelerate
(5).Decreasing Gas Mileage
(6).Engine Not Starting
This may indicate that you need to replace the fuel pump
Fuel Pump Replacement Guideline:
Please Note the following before replacing the fuel pump:
1.Ensure that you are in a well ventilated and level work area.
2.Use approved safety glasses or goggles when working on any motor vehicle.
3.The gasoline is sucked out of the tank and stored in a container dedicated to gasoline.
Picture(A)
Disconnect the ground (negative) cable of the battery and ensure that it does not accidentally spark while working.
Picture(B)
Locate and remove gas tank filler neck mounting bolts or remove the filler tube from the tank. This will aid the fuel removal especially if you had problems accessing through the filler neck.
Picture(C)
Located the electrical connector for the fuel pump and fuel level sender which will be in the same wiring harness. If access if difficult or you can't see them wait until the tank is lowered slightly to undo the connector. Inspect electrical connector for burns or heated spots and replace if damaged. A burned connector can cause a pump to fail intermittently.
Picture(D)
There will be fuel vapor lines as part of the EVAP system these will need to be removed or disconnected.
Picture(E)
Locate and release tank holder supports, there are two in most cases. Remove the mounting bolts at this point the tank will become loose but may not come out.
Picture(F)
Lower the tank and release top mounted fuel lines or electrical connectors if any. Continue to remove the tank.
Picture(G)
Remove the tank, this will expose the fuel pump retainer ring. Use an aerosol cleaner to remove dirt and debris from the area. This will keep the inside of the fuel tank clean when performing the repair.
Picture(H)
Remove fuel pump mounting bolts or retainer ring to access the fuel pump module and remove the unit. Use a hammer and punch to remove the ring counterclockwise.
Picture(I)
Remove the fuel pump which will be attached to the mounting plate or positioned down inside the tank held by plastic retainer clips.
Picture(J)
Remove the fuel pump from the tank.
table#Attrid1298715 {border-collapse:separate}
table#Attrid1298715 tr:last-child td:last-child{border-bottom-right-radius: 10px;}
table#Attrid1298715 tr:last-child td:first-child{border-bottom-left-radius: 10px;}
table#Attrid1298715 tr:nth-of-type(1n){}
table#Attrid1298715 tr:nth-of-type(2n){}
table#Attrid1298715 td{padding: 3px;}
table#Attrid1298715{font-size:12px !important;font-family:Arial !important;color:#4c4c4c !important;text-align:left !important;}
table#Attrid1298715 td:first-child{font-weight: 900; !important;;padding:3px;border:1px none ;}
#m_pre1298715{border:1px none ;overflow: hidden;border-radius: 10px;}
Please make sure your adress is corect before shipment. All domestic orders will be shipped via USPS, UPS or Fedex from our US warehouse and usually arrives to your door in about 2-7 business days. All of our brand new items come with a 30-Days money-back guarantee. Any question, please contact us by email on working days. WARNING: Please confirm compatibility again.
Item Specifics
Type
Fuel Pump
Drive Type
Electrical
Gasket or Seal Included
Yes
Placement on Vehicle
Fuel Tank
Outlet Type
Quick Connect
Outlet Size
3/8
Inlet Type
Strainer
Inlet Count
2
Outlet Count
2
Terminal Type
Blade
Pin Count
4
Terminal Gender
Male
Connector Gender
Female
Internal Or External Strainer
Internal
Wiring Harness Included
No
Voltage
12.0 2H
Condition
New
Fuel Type
Gasoline
Float Included
Yes
Package Contents
Fuel Pump Module Assembly w/Float Arm,Seal
Interchange Part Number
E4050M
OE/OEM Part Number
SP4082M
Cross Part Number
M100077,P76790M
Feature
ESCP
Flow Rate
60-70 gph
Color
White
Manufacturer Part Number
KING11693605FB
Custom Bundle
No
Manufacturer Warranty
3 Years
Black Pressure Sensor Included
No
Pressure
50-60 psi
Brand
Fuel_Kingparts
Mounting Hardware Included
No
Fitment Type
Direct Replacement
Modified Item
No
Superseded Part Number
13585456,13577824
|
