GEYA GRL8-02 Water Level Controller Liquid Control Relay Switch 10A ACDC24V-240V

Brand: GEYA Sold By: TopSelected
Out of Stock
Ships from United States Arrives in 7-14 business days

Free Standard Shipping on orders over 89

Item can be returned in its original condition for a full refund or replacement within 30 days of receipt.
Delivery:
04
August2026
-
13
August2026
GEYA GRL8-02 Water Level Controller Liquid Control Relay Switch 10A ACDC24V-240V

GEYA GRL8-02 Water Level Controller Liquid Cont...

$66.26

Product Details

Store Categories

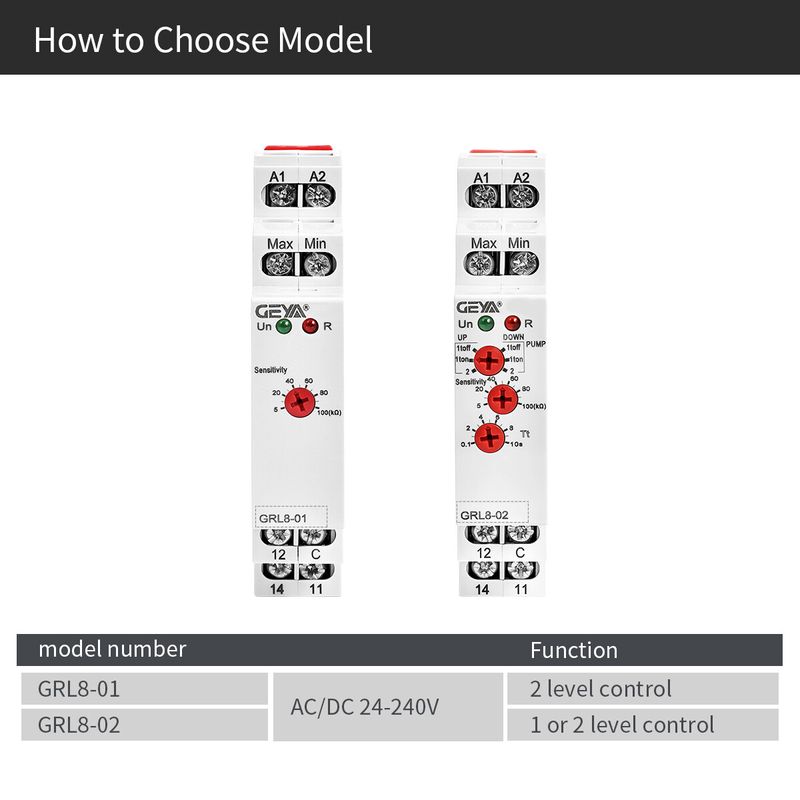

GEYA GRL8 Series Level Control Relay

Product Description

This item is GRL8-02 with sensor,If you need other type.

Applications

Designed for monitoring level in wells, basins, reservoirs, tanks.....

Function Features

-In one device you can choose the following configurations:
- 2 level control mode
- 1 level control mode
-Choice of function PUMP UP, PUMP DOWN.
-Adjustable time delay on the output (0.1 - 10s).
-Sensitivity adjustable by a potentiometer (5-100kΩ).
-Galvanically separated supply voltage AC/DC 24-240V.
- Relay status is indicated by LED.
- 1-MODULE,DIN rail mounting.



Packing List
1PCS GRL8-02 Level control relay with sensor

If you buy more than 2 PCS,We will send you 1 PCS of rail and 1 PCS of screwdriver as gift!


Technical Data
Technical parameters GRL8-02
Function 2 or 1 level contorl mode
Supply terminals A1-A2
Voltage range AC/DC 24-240V(50-60Hz)
Input max.2VA
Supply voltage tolerance -15%;+10%
Sensitivity ( input resistance)  adjustable in range 5 kΩ -100 kΩ
Voltage in electrodes max. AC 5 V
Current in probe AC <0.1 mA
Time response max. 400 ms
Max. capacity length 800 m (sensitivity 25kΩ), 200 m (sensitivity 100 kΩ)
Max. capacity of probe cable 400 nF (sensitivity 25kΩ), 100 nF (sensitivity 100 kΩ)
Time delay (t) adjustable, 0.1 -10 s
Accuracy in setting (mechanical) ±10 %
Temperature coecient 0.05%/℃,at=20℃(0.05%℉，at=68℉)
Output 1×SPDT
Current rating 10A/AC1
Switching voltage 250VAC/24VDC
Min.breaking capacity DC 500mW
Output indication red LED
Mechanical life 10000000
Electrical life(AC1) 100000
Reset time max.200ms
Operating temperature -20℃ to +55℃（-4℉ to 131℉）
Storage temperature -35℃ to +75℃（-22℉ to 158℉）
Mounting/DIN rail Din rail EN/IEC 60715
Protection degree IP40 for front panel/IP20 terminals
Operating position any
Overvoltage cathegory Ⅲ
Pollution degree 2
Tightening torque 0.8Nm
Weight 72g
Standards EN 62055-1
