Launch X431 i-TPMS Tire Pressure Detector Handheld Terminator Upgraded of TSGUN Sensor Activator Progarmming Tool
Launch i-TPMS provides professional and comprehensive TPMS services for repair shops to develop their TPMS business. It can progarm LAUNCH LTR RF sensors for unlimited times to replace OE sensors. The sensor data can be read instantly and accurately, including sensor ID, tire pressure, tire temperature, battery status, etc
Product Features:
Compatible with X431 V+, Launch PAD V, X431 Pro3S+, X431 Pro3 V4.0, X431 PRO5 (NOTE: Not supported for CRP919E)
The i-TPMS serves over 98% of mainstream vehicles with a TPMS-equipped system available on the market.
Experience TPMS service by binding it with an X-431 scanner or using it standalone with the i-TPMS APP.
Supports all 315/433MHz sensors.
Binding it with an X-431 scanner: Activation, Progarmming, Relearn and Diagnosing for sensors.
The standalone mode working with the i-TPMS app: Activation and Progarmming for sensors.
Supports unlimited progarmming for LAUNCH sensors to replace OE sensors.
LAUNCH i-TPMS has the same function as TSGUN. Still, with the additional function of connecting to the cell phone, it can complete tire pressure activation, progarmming and ID copying on the cell phone anytime and anywhere.
Launch i-TPMS vs TSGUN:
They share the same function. TSGUN must combine with X-431 scanners. It is not standalone. i-TPMS works standalone via phone App, it also combines with X431 scanners.
Launch i-TPMS mobile APP Function:
1. Support vehicle selection or OE part number tpms sensor activation
2. Support vehicle selection or OE part number tpms sensor progarmming
(1) Manually create ID progarmming
(2) Automatically create ID progarmming
(3) Copy and create ID progarmming. For this functional device, you must first activate the original tpms sensor, obtain the sensor ID, and then copy
3. Support unit switching, sensor ID: decimal/hexadecimal, temperature: degrees Celsius / degrees Fahrenheit, pressure: kPa /Psi /Bar
4. Can generate tire pressure check report
5. Currently supports Android system.
6. The device does not need to be registered or activated. After installing the app software, open it and search for Bluetooth connections to use it.
7. Support Launch tpms sensor progarmming and activation

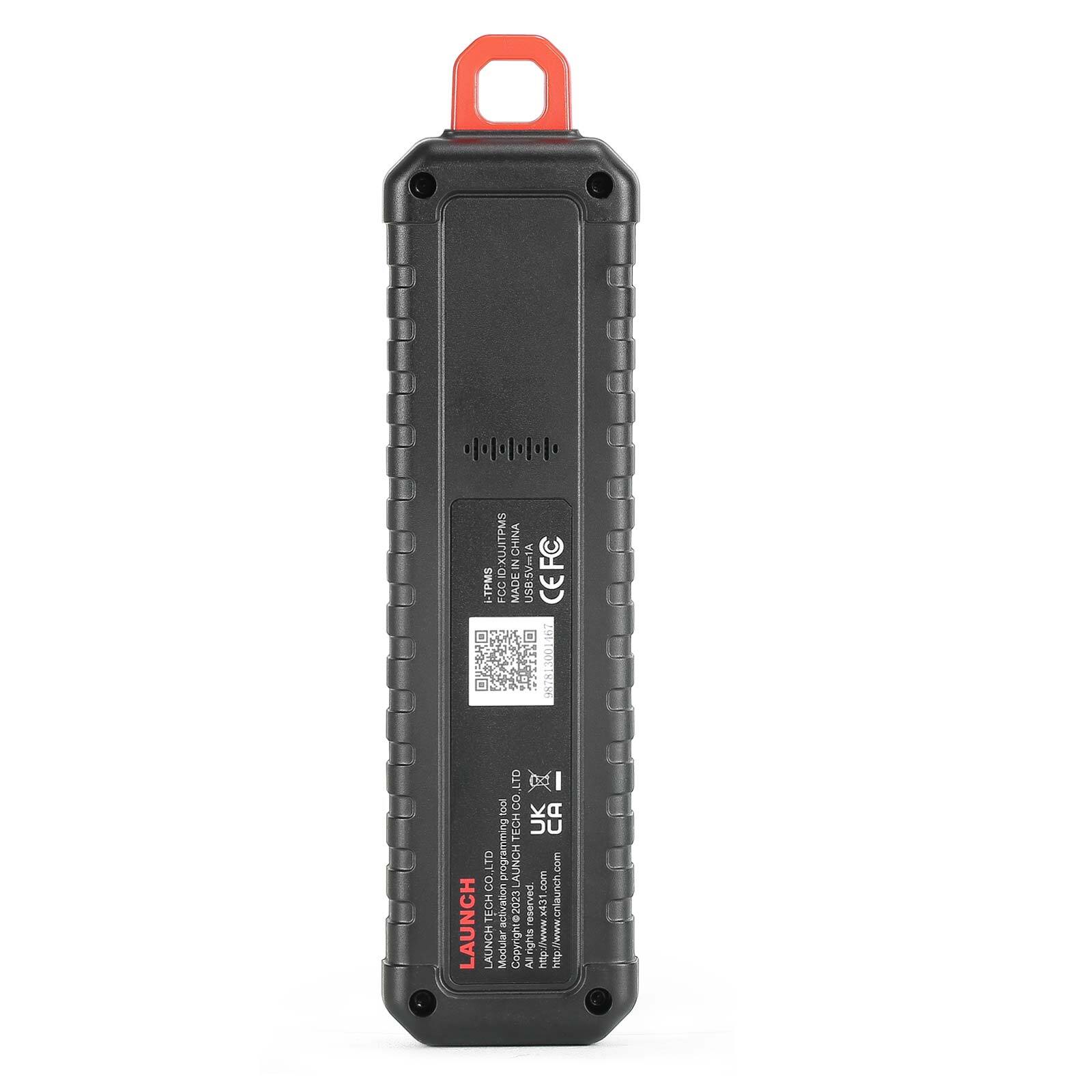

8. The Android mobile app software can be downloaded by scanning the QR code on the back of the host or in the instruction manual.
When we can use the LAUNCH i-TPMS?
1. The i-TPMS Tire Pressure Detection Handheld Terminal needs to be used together with the LAUNCH diagnostic equipment.
X-431TSGUN can activate, progarm, diagnose, and learn tire pressure after connecting to the diagnostic equipment via Bluetooth.
2. i-TPMS tire pressure detection handheld terminal can be used with LAUNCH's own tire pressure app i-TPMS.
i-TPMS can be connected to i-TPMS mobile phone app via Bluetooth to activate tire pressure, progarm and copy ID. i-TPMS can be connected to i-TPMS cell phone APP through Bluetooth to activate, progarm and copy the ID of tire pressure.
Product Specifications:
| Display | 1.77’’, 168*128 |
| Battery | 2000mAh |
| OBDII Input Voltage | 9V ~ 18V |
| DC Input Voltage | DC 5V |
| Working Current | ≤1A |
| Working Temperature | -10℃~50℃ |
| Storage Temperature | -20℃~60℃ |
| Dimension | 252*54*30 (mm) |

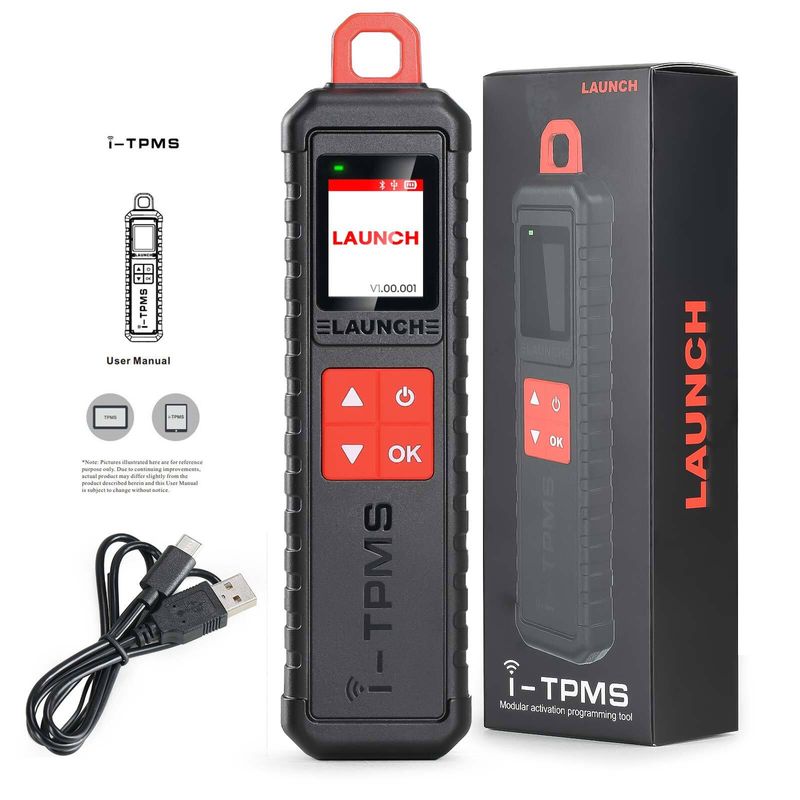

Package includes:
1pc x i-TPMS device
1pc x charging cable
1pc x manual
