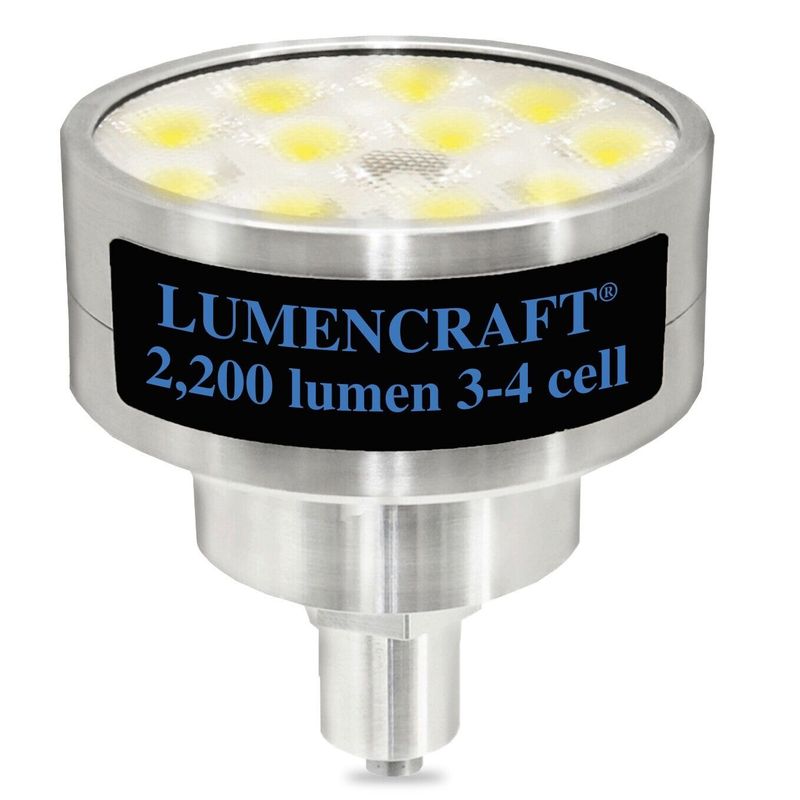

LED Conversion for Maglite Flashlight 2,200 Fits 3-4 D cell, 12 LED
Unlike these other lights Lumencraft® Flashlights Maglite upgrades come with the Actual Lumen Guarantee. Because of the superior driver performance and use of only premium grade components our products deliver on output. So, if your tired of being underwhelmed by competitors products, why not step into something great today.
In addition to the astounding output the new version of Lumencraft bulb comes with the most flexible user interface to date. Created by BLF member DrJones this UI has something to offer for everyone.

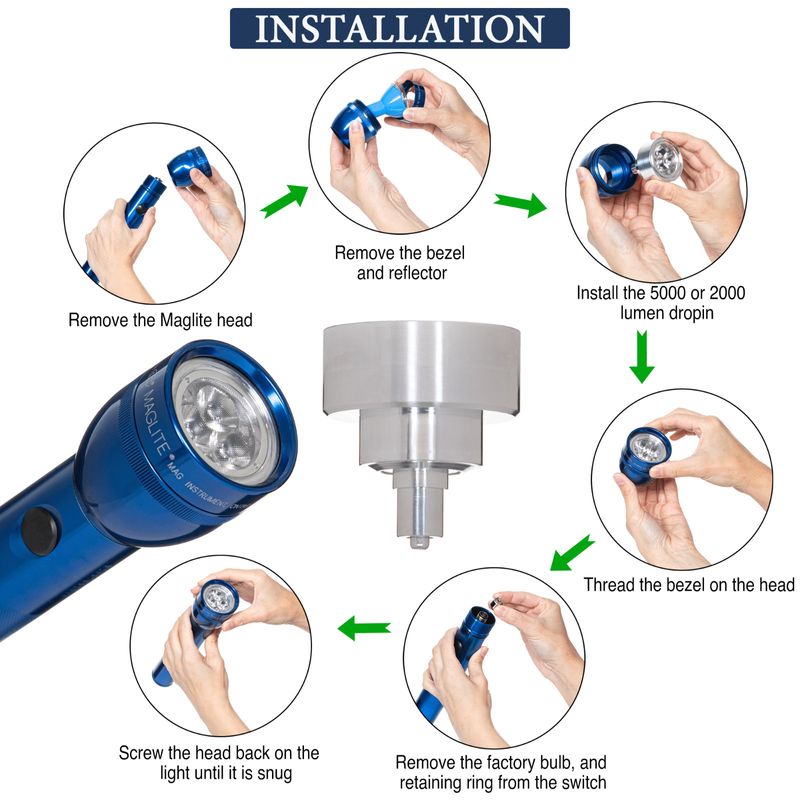

To install the 2000 lumen dopin, start by unscrewing and removing the head of your Maglite flashlight. Next remove the factory reflector, bulb retaining ring and bulb from the switch tower (if you have the bi-pin bulb you can press down on the tower to eject the plastic bulb holder). Next remove the bezel and lens from the top of the Maglite head. Insert the 2000 lumen bulb into the head. Place the lens over the dropin and thread the bezel back down until snug. Screw the head back on to the maglite until it is just "snug" onto the body.
User interface:
This firmware allows the ultimate in user customizability, with 22 built-in mode groups, that the user can select via a series of button presses and the option of user programmable turbo timer that will automatically step the power down to 50% after the set time is hit (see below for instructions).
For a video on how the user interface works you can search Youtube for "Lumencraft Flashlights User Interface".
User Selectable Groups:
- 2% - 25% - 100% | Memory
- 100% - 25% - 2% | No Memory
- 2% - 25% - 100% - Strobe - Beacon | Memory
- 2% - 25% - 100% - Strobe - Beacon | No Memory
- 15% - 100% | Memory
- 100% - 15% | No Memory
- 100% Only
- 100% - Strobe | No Memory
- Strobe - 100% | No Memory
- ML - 5% - 33% - 100% | Memory
- 100% - 33% - 5% - ML | No Memory
- ML - 5% - 33% - 100% - Strobe - Beacon | Memory
- ML - 5% - 33% - 100% - Strobe - Beacon | No Memory
- ML - 100% | No Memory
- 100% - ML | No Memory
- ML - 100% | Memory
- ML - 5% - 15% - 50% - 100% | Memory
- ML - 5% - 15% - 50% - 100% | No Memory
- 100% - 50% - 15% - 5% - ML | Memory
- 100% - 50% - 15% - 5% - ML | No Memory
- 2% - 15% - 50% - 100% | Memory
- 2% - 15% - 50% - 100% | No Memory
Guppydrv Instructions
To switch mode groups:
rapidly tap the switch 8 times, the light will then enter the
programming mode and begin to flash. With the light in programming mode,
tap the switch the same number of times as your desired mode group. The
light will blink and your mode group will be memorized.
Example:
To select mode group 3, tap the switch 8 times quickly to enter
programming mode. As soon as the light enters programming mode and
beings flashing, tap the switch three times. The light will blink to
recognize the mode group change.
To set the turbo timer:
rapidly tap the switch 8 times, the light will then enter the
programming mode and begin to flash. With the light in programming mode,
tap the switch 30 times to enter the turbo timer set mode. The light
will then switch to 100% power. When the light is at the desired
temperature for the turbo step down, turn the light off. The turbo timer
will then be set. The turbo timer steps the light down to 50%
regardless of the mode group set.
To disable the turbo timer simply go into program and cut it off in >3 seconds
Optional high temperature lens upgrade
If you would like to use this bulb in a large Maglite such as 4 or 5 D cell dummy battery/spacers are available
Expansion ring for use with C cell lights
4200 lumen 6 D bulb available
Please see my
Disclaimer:
Lumencraft is not affiliated with Mag instrument inc. which
owns the MAG family of trade marks including Mag-Lite and Mini-Maglite.
My custom shorty flashlights are not made, endorsed, recommended,
licensed or approved by Mag instruments inc.
