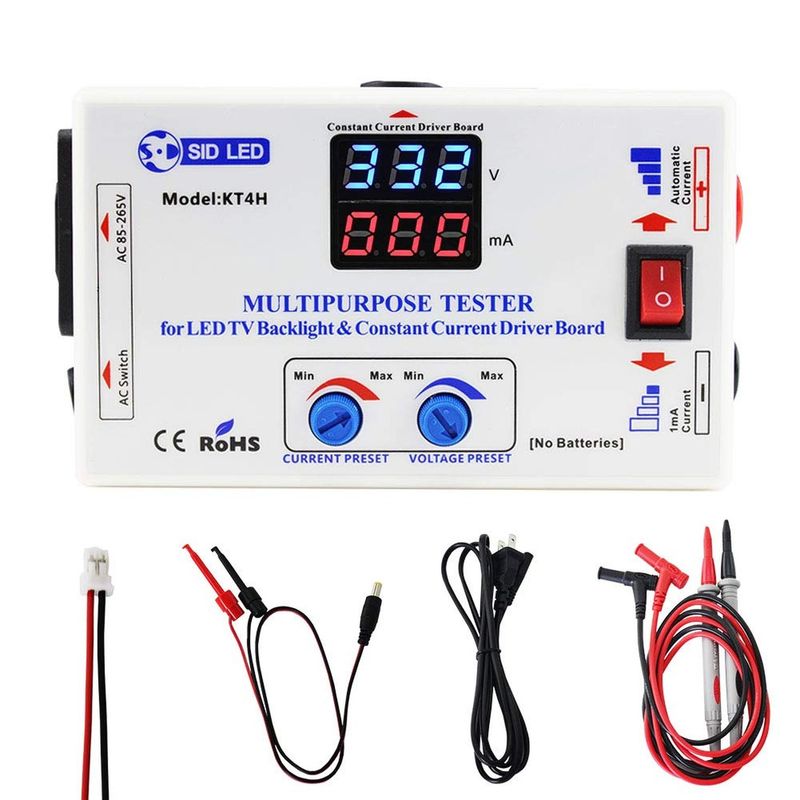

Multipurpose Tester for LED TV Backlight and Constant Current Driver Board Us...

Brand: SID LED Sold By: TopSelected
$123.42 In Stock
Ships from United States Arrives in 7-14 business days
Item can be returned in its original condition for a full refund or replacement within 30 days of receipt.
Delivery:
15
July2026
-
24
July2026
delivery Delivery Guarantee arrow
check$5 Credit If Delayed
checkFull Refund If Item Is Damaged
check15-Day Full Refund If No Updates
check30-Day Full Refund If Not Delivered
Multipurpose Tester for LED TV Backlight and Constant Current Driver Board Us...

Multipurpose Tester for LED TV Backlight and Co...

$123.42

Product Details

Multipurpose Tester for LED TV Backlight and Constant Current Driver Board Used in All LED Lights Repair Output 0-330V





   ✓ Free 60 Day Returns

   ✓ Free Express Shipping





Description:

Product model: KT4H Vin: AC 85-265V Vout: DC 0-330V (Automatic + Adjustable) Voltmeter Accuracy: <(± 0.5 ± 1%Vout) V Iout: 0-150mA (Automatic + Adjustable) Constant Current Board Testing Current: 0-999mA Ammeter Accuracy: <(±2 ±1%Iout) mA Pinput: 50VA (MAX) Temperature: -20℃~+40℃ TESTING METHODS Default factory setting: Output Voltage 330V, Output Current 50mA. You can testing the backlight of TV with any size at this default settings. 1. Self-testing: Plug in, turn the power switch on. The voltage is around 330V, current is 0; Contact the probes together, voltage changes to 0 and current changes to around 50mA, then testing can be started. 2. In testing: Voltage = ‘0’, SHORT CIRCUIT. Voltage = ‘330V’, OPEN CIRCUIT. 3. Testing single LED bead (Set voltage around to 20V and the current switch to 1mA): A. With right polarity: the voltage shows on the tester of a normal LED bead is about 80% of the rated voltage, for example, the operating voltage of the LED bead is 2.4V if its rated voltage is 3V; B. With wrong polarity: Voltage display the open circuit voltage. 4. Testing LED strips: Set the voltage to around 200V, change the current if need adjust brightness. Test method of Constant Current Driver Board Testing situation: the LED strip of backlight is on with the tester, but it does not work with the constant current board; A. Cut off the power of TV, unplug the interface sockets of the constant current plate and light bar; B. Connect the constant current board with the tester using the cables in the kits on right polarity. C. Insert the Red and Black pens of the tester into the anode and cathode of the interface of the LED light bar D. Turn the power of TV on. E. Testing voltage >30V, Current >30mA and keep stable, and the LED strip working normal, then the Constant current board is normal.

Features:

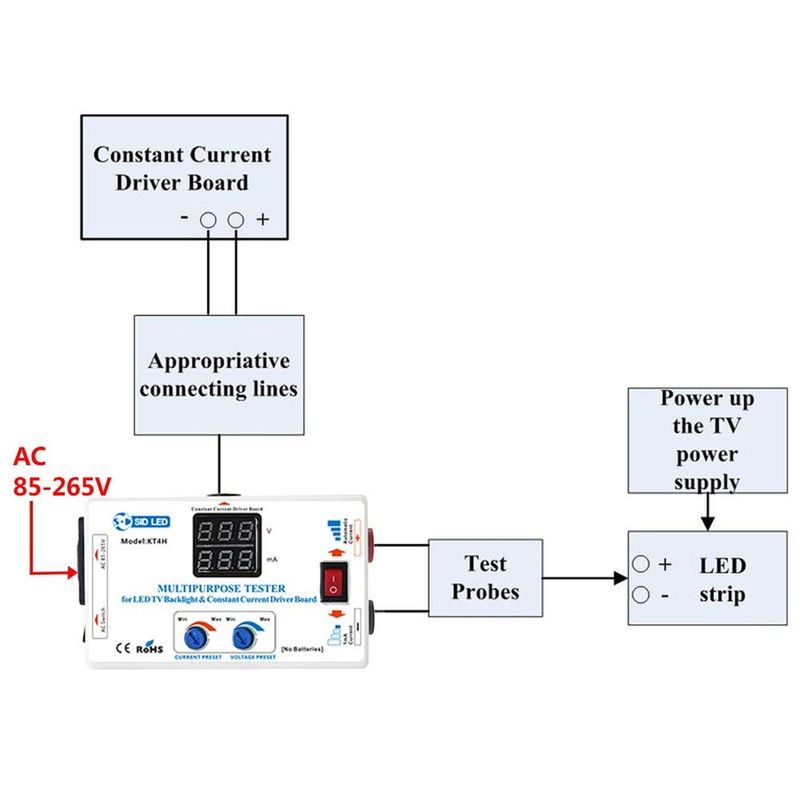

  • Real-time testing voltage and current of constant current drive board.
  • Testing LED strips, LED panels, single LED bead, COB lighting sources, backlight of LED TV, displays, computers and so on.
  • Testing voltage parameter of various of electronic components;Testing LED light on vehicle.
  • No burn out when testing single LED bead with wrong polarity. (Set voltage around to 20V and the current switch to 1mA)
  • Compatible with all the LED strips (high voltage or low voltage). Manual adjusting the range of testing voltage (20-330V/DC) and current (20-150mA).

Product Details:

  • Brand: SID LED
  • Power Source: Corded Electric
  • Style: Electronic
  • Color: Red, Black
  • Upper Temperature Rating: 4E+1 Degrees Celsius
  • Is Discontinued By Manufacturer ‏ : ‎ No
  • Package Dimensions ‏ : ‎ 9.17 x 6.38 x 1.93 inches; 14.89 ounces
  • Item model number ‏ : ‎ KT4H
  • Date First Available ‏ : ‎ January 14, 2019
  • Manufacturer ‏ : ‎ SID LED
  • Country of Origin ‏ : ‎ China
  • Best Sellers Rank: #198,569 in Tools & Home Improvement (See Top 100 in Tools & Home Improvement) #339 in Multi Testers
  • #339 in Multi Testers
  • Customer Reviews: 4.7 4.7 out of 5 stars 269 ratings
