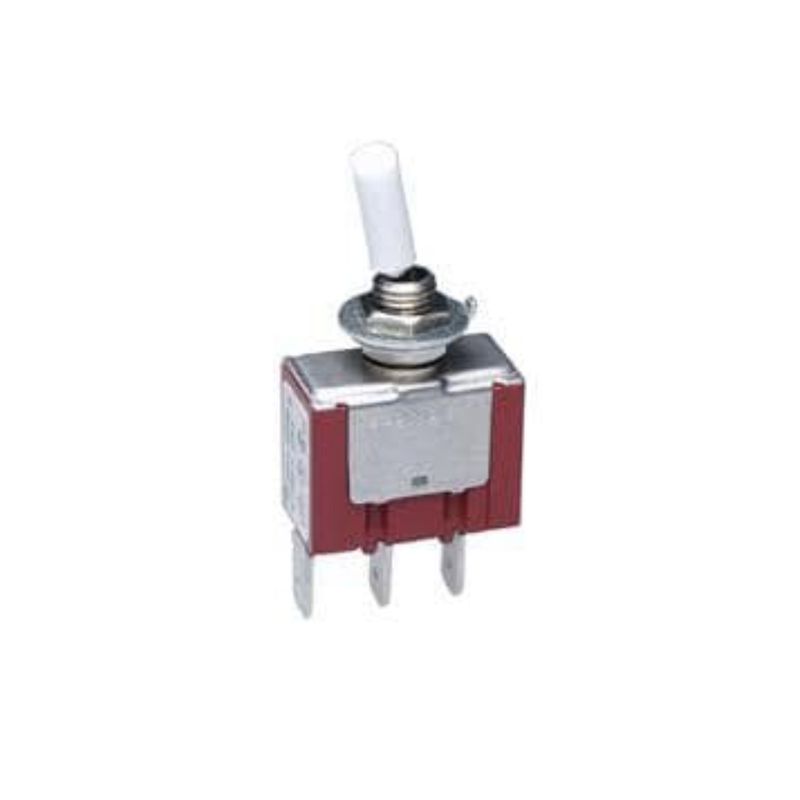

NEW NKK P2012Z Toggle Switch SPDT 10A 125V Quick Connector Panel Mount w/Threads

Brand: NKK Switches Sold By: TopSelected
$25.68 In Stock
Ships from United States Arrives in 7-14 business days

Free Standard Shipping on orders over 89

Item can be returned in its original condition for a full refund or replacement within 30 days of receipt.
Delivery:
23
July2026
-
03
August2026
delivery Delivery Guarantee arrow
check$5 Credit If Delayed
checkFull Refund If Item Is Damaged
check15-Day Full Refund If No Updates
check30-Day Full Refund If Not Delivered
NEW NKK P2012Z Toggle Switch SPDT 10A 125V Quick Connector Panel Mount w/Threads

NEW NKK P2012Z Toggle Switch SPDT 10A 125V Quic...

$25.68

Product Details
NKK P2012Z
Toggle Switch SPDT 10A 125V
Round Lever Quick Connector Panel Mount with Threads

Item Description: Toggle Switch SPDT 10A 125V Panel Mount w/ Threads
Manufacturer: NKK - Nihon Kaiheiki Ind. Co., Ltd.
Model Number: P2012Z
Part Number:  P-2021
Specifications:
   Electrical Capacity
      Resistive Load:
10A @ 125V AC or 6A @ 250V AC
      Motor Load: 400W @ 125V AC
      Lamp Load: 2A @ 125V AC for On-Off-On circuit & 3A @ 125V AC for other circuits
   Other Ratings
      Contact Resistance:
10 milliohms maximum
      Insulation Resistance: 1,000 megohms minimum @ 500V DC
      Dielectric Strength:
         2,000V AC minimum between contacts for 1 minute minimum;
         4,000V AC minimum between contacts & case for 1 minute minimum
      Mechanical Life: 100,000 operations minimum
      Electrical Life: 25,000 operations minimum
      Angle of Throw: 25°
   Materials & Finishes
      Toggle Cap:
Brass with nickel plating
      Lever: Brass with chrome plating
      Bushing: Brass with nickel plating
      Frame: Stainless steel
      Case/Base: Diallyl phthalate resin (UL94V-0)
      Movable Contacts: Silver alloy with silver plating
      Stationary Contacts: Pure silver with silver plating
      Terminals: Copper with silver plating
   Operating Temp Range: –10°C through +85°C (+14°F through +185°F)
   Humidity: 90 ~ 95% humidity for 96 hours @ 40°C (104°F)
   Poles: ON-NONE-ON
   Circuits: SPDT
   Toggles: .512” (13.0mm) White Cap
   Bushings: 6mm Bushing
   Terminals: 0.187” (4.75mm) Quick Connect
   Typical Switch Dimensions: 6mm Bushing

Included Hardware:
   1 Locking Ring AT507M
   1 Internal Tooth Lockwasher AT509
   2 Hex Nuts AT513M
Condition:
New (Individually sealed in package)
