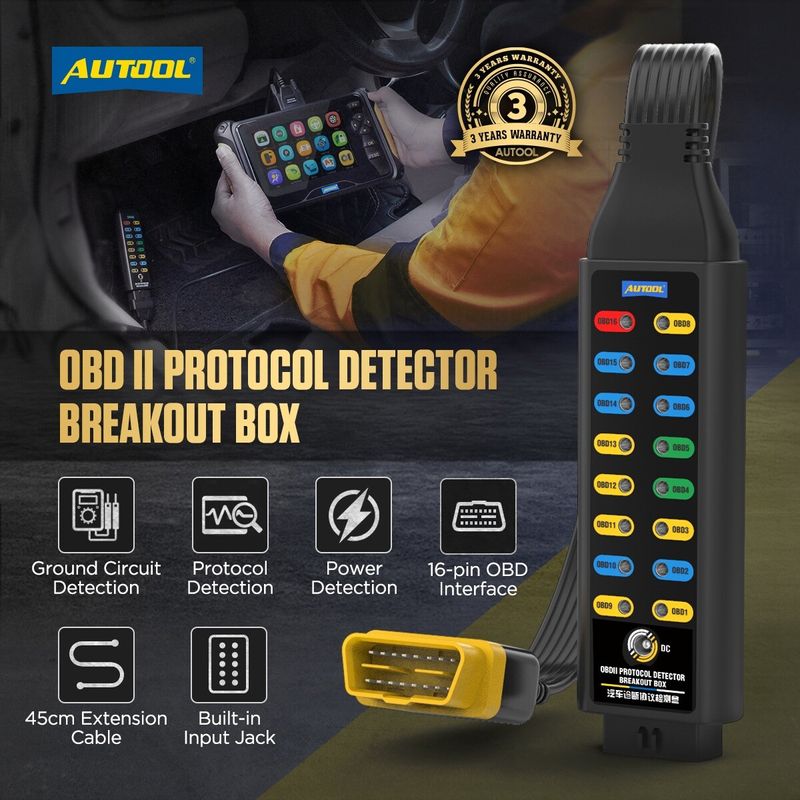

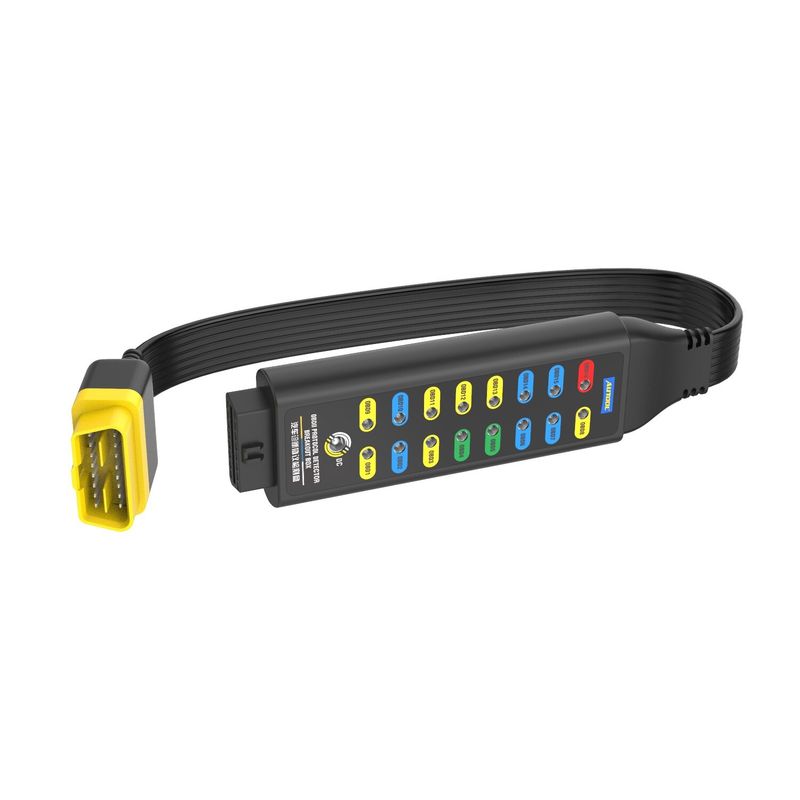

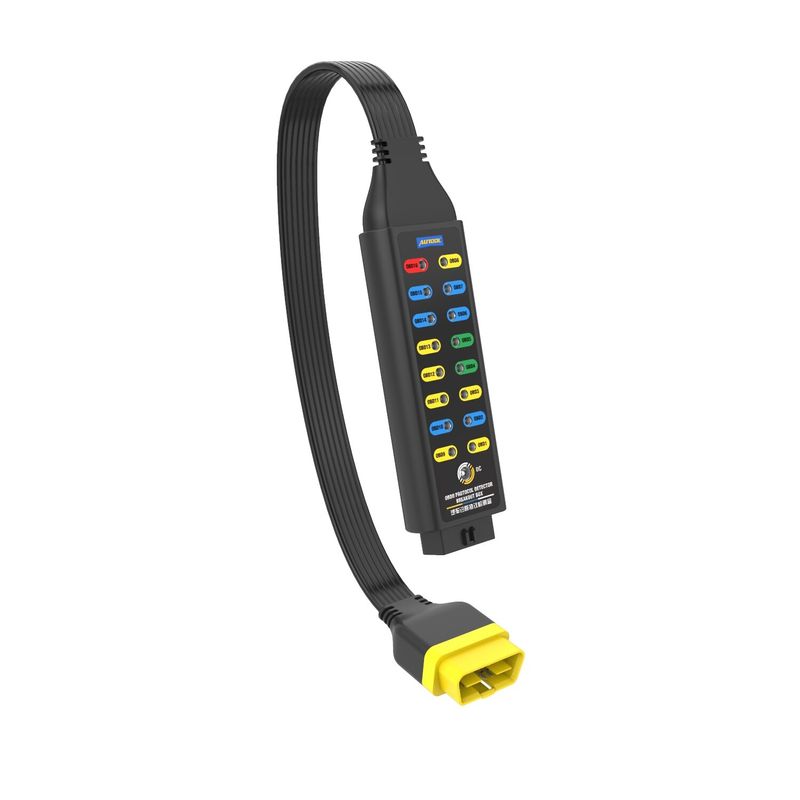

OBD2 Breakout Box OBDII Protocol Detector CAN Test Diagnostic Tool W/17.71"Cable
 |
|
 |
AUTOOL obd2 breakout box is a straight-through circuit detector specifically designed to detect obd2 data. By connecting this instrument to the vehicle's OBD II system, the communication protocol, power and ground circuits of the OBD II on-board diagnostic system can be easily and safely detected. |
|
Features:
1. In the process of using decoder, error can be found and diagnosed OBD connector link.
2. You can monitor the OBD interface voltage and ground, showed low voltage. Display diagnostic stitching error.
3. Jump for OBD interface signals. Signal lines such as decoder of 7 to 15 vehicles online.

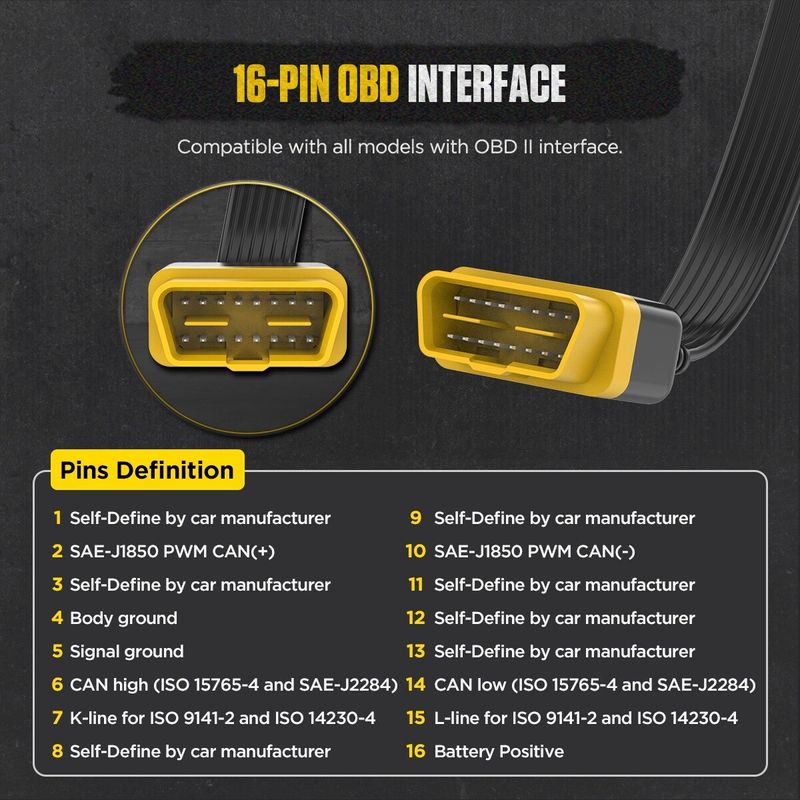

4. Rapid detection of OBD2 diagnostic connector whether every stitch of the normal communication.

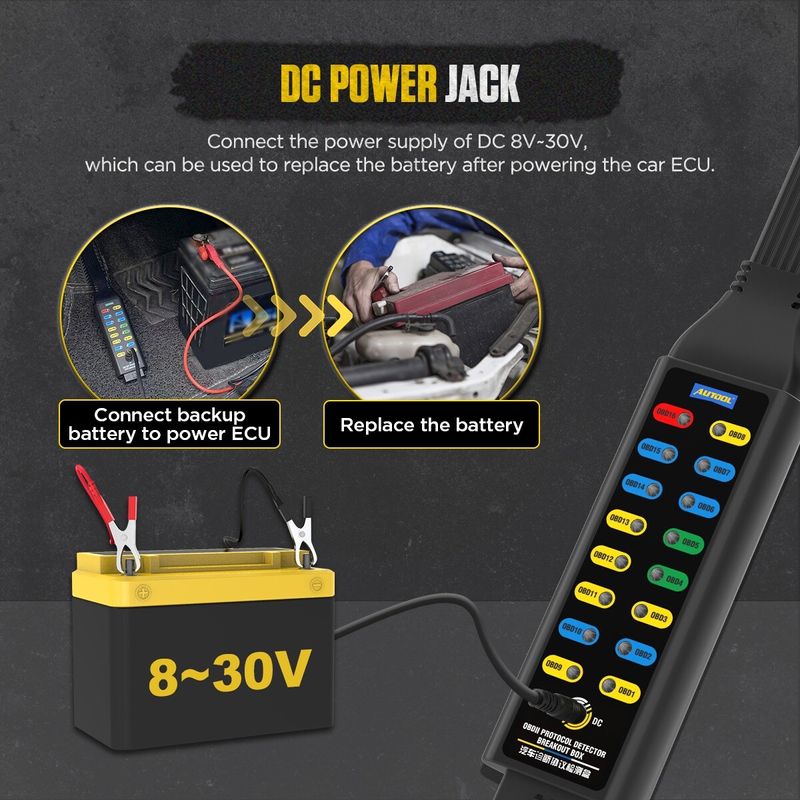

5. Replace the battery, save the car data function. When replace the battery, plug OBD2 connector into the car, at the same time connect additional power to the control box, so that ensure vehicle data is not lost.
|
|
 |
 |
 |
| 4MM Built-in Input Jack The built-in input jack of obdii breakout box can be connected to any type of 4mm banana plug, which is convenient for connecting with a multimeter or oscilloscope for further measurement. |
Fast and Easy Connection Can Breakout Box The layout of the input jack completely simulates the 16-pin layout of the OBD II interface. When the decoder communicates with the vehicle, all 16 OBD II pins can be easily connected, so that more tests can be carried out quickly and visually. |

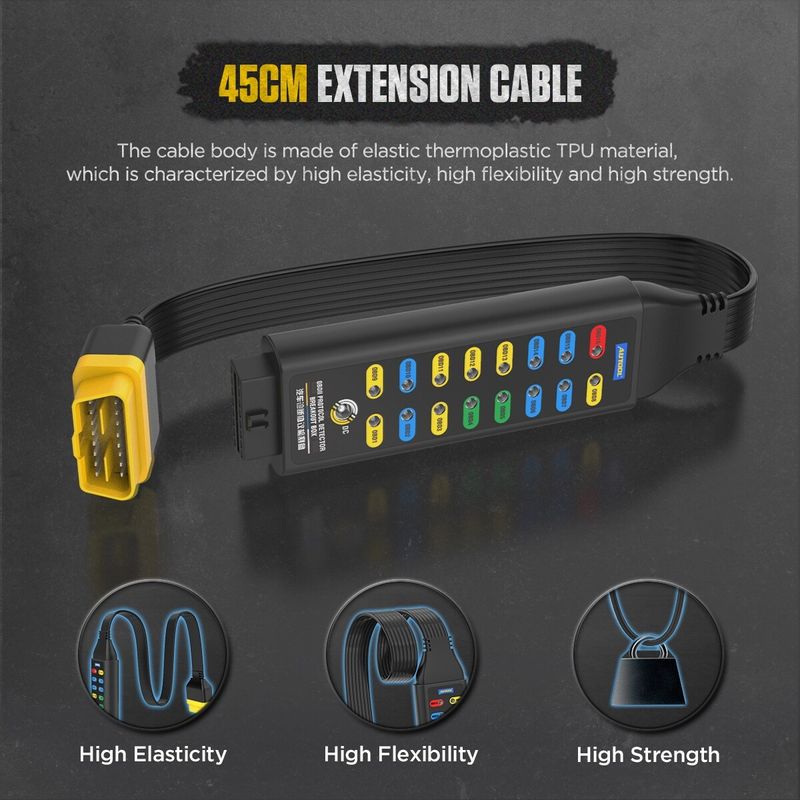

High Flexibility 18-inch Extension Cable OBDII breakout box is equipped with a 18-inch extension cable, which is made of elastic thermoplastic TPU material with high elasticity, high strength and high flexibility. OBDII extension cable adopts multi-thread connection data technology,which makes connection faster and smoother. |
 |
||
|
Red LED Signal Light: If the car power supply is detected as normal, the red LED of pin 16 will always be on.
Green LED Signal Light: If the car is detected grounded normally, the green LED of pin 4 and 5 will always be on. Yellow LED Signal Light:When the code reader communicates with the vehicle, the yellow LED of pin 2 or 6/7/10/14/15 will occur a waveform signal. Note: 1.This OBD2 breakout box provides easy access to the vehicle data bus lines.
2. Improper use of this OBDII breakout box can result in damage to the vehicle data communication system and associated circuits and systems. 3. Do not jumper pins together without understanding the circuits. 4. Do not use the tool to power up a load device exceeding 1 amp. 5. Do not place a jumper between the power pin 16 and ground pins 4, 5. |
 |
 |

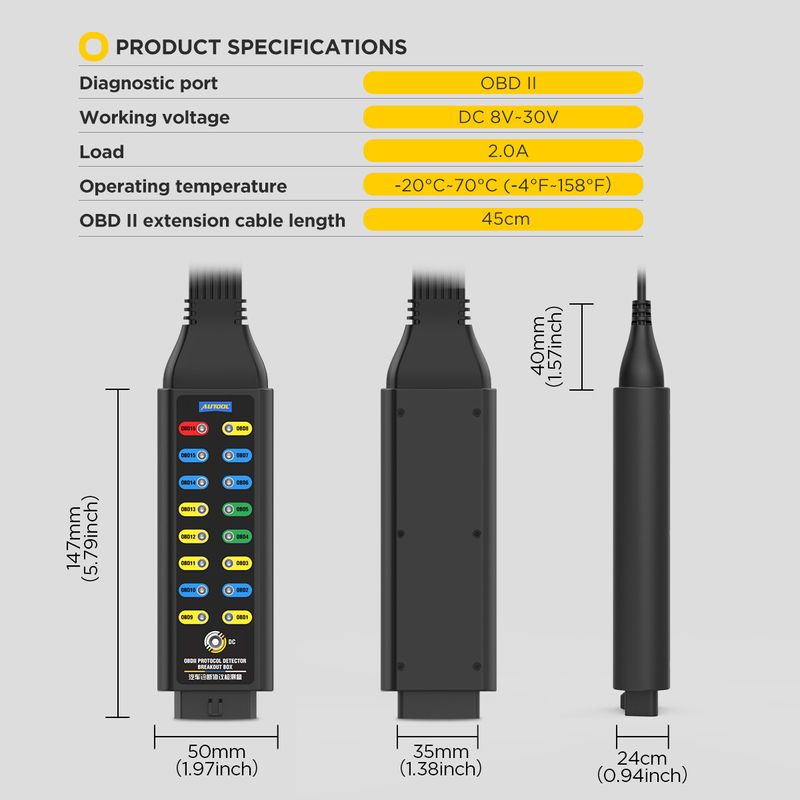

Parameters:Diagnostic port: OBDII |
Package:
1x Host breakout box
1xUniversal Wire Red Set
1xUniversal Wire Black Set
1xUniversal Wire Yellow Set
1xUniversal Wire Green Set
1xUser manual
1xWarranty card
|
