OVERVIEW
The PSC-AC-PP-100 power pack is the foundation for any low voltage lighting control system. It supplies low voltage power to occupancy sensors and other control devices, switching line voltages in response to signal from control devices. The PacWave PSC-AC-PP-100 Power Pack contains a 24 VDC supply as well as a 20A line voltage relay, and it provides this operating voltage to all PacWave 24 VDC occupancy sensors.
Sensor Operation
PSC-AC-PP-100 power packs have a transformer and a high-current relay incorporated into them. The transformer has high voltage inputs of 120/230/277 VAC and 24 VDC low voltage output that powers PacWave sensors. When connected sensors detect occupancy, signal the power pack to close relays and turn on the connected lighting load. PSC-AC-PP-100 power packs can power up to 6 low voltage sensors in parallel.
Application

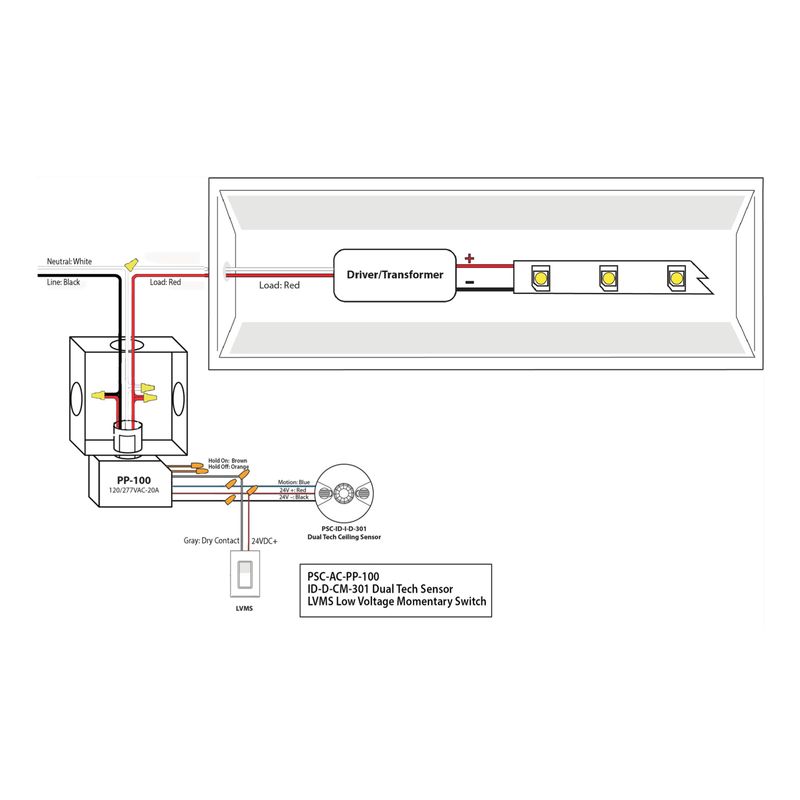

PacWave Power Packs are flexibly designed to work in a large variety of settings that require high voltage switching through low voltage controls. For example, PacWave Power Packs can control lighting circuits in classrooms, conference rooms, and offices. They can also control self-contained air conditioners, pumps, fans, motors, VAV systems, motorized damper controls, and setback thermostats. In short, PacWave Power Packs are ideal for use anywhere that optimal lighting and energy savings are desired.
SPECIFICATIONS Features:
Class 2 output power supply
Self-contained transformer relay system
Powers low voltage sensors
Capable of switching up to a 20A load (ballast) UL 244A Plenum rated
Installation in junction box not required
Physical Specs:
Size: 1.61”L × 2.78”W × 2.35”H (41mm × 70.6mm × 59.8mm)
Weight: 4.3 oz
Color: White
Mounting: 1⁄2” knockout enclosure or mounted into
fixture wiring trays
UL 94V-0 casing
Electrical Specs:
Operation Voltage: 120/230/277 VAC
Load:
20A @ 120/277 VAC (Ballast)
20A @ 120 VAC (Incandescent)
Motor: 1 HP @ 120/240 VAC
Output: 24 VDC, 150 mA (with relay connected)
Frequency: 50/60 Hz
Environmental Specs:
Operating Temp: 32° to 131°F (0° to 55°C) Storage Temp: 14° to 160°F (-10° to 60°C) Relative Humidity: 95% non-condensing
Additional Part Number: MW-PSC-AC-PP-100
