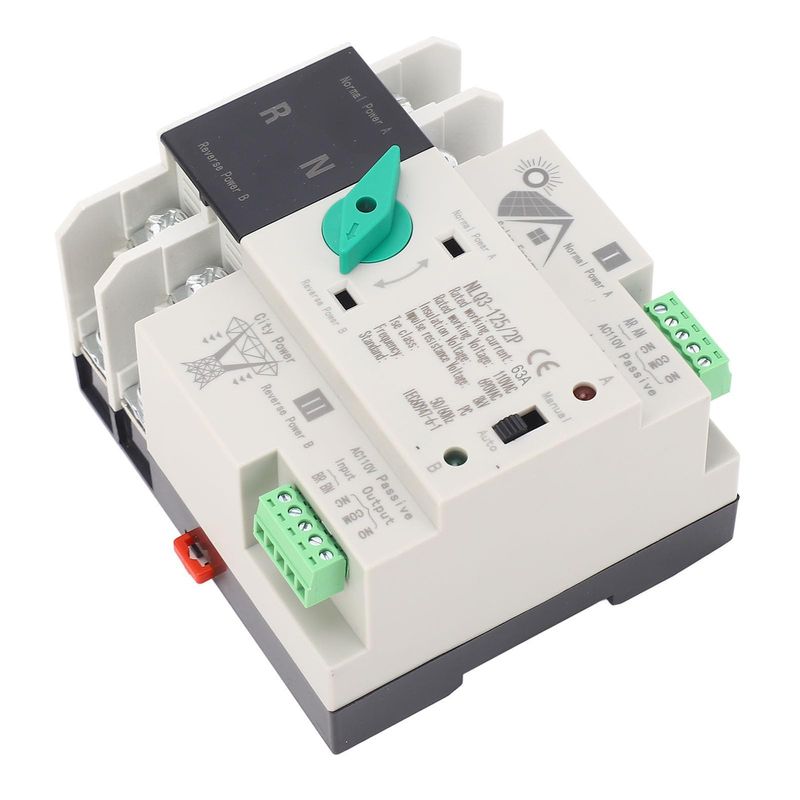

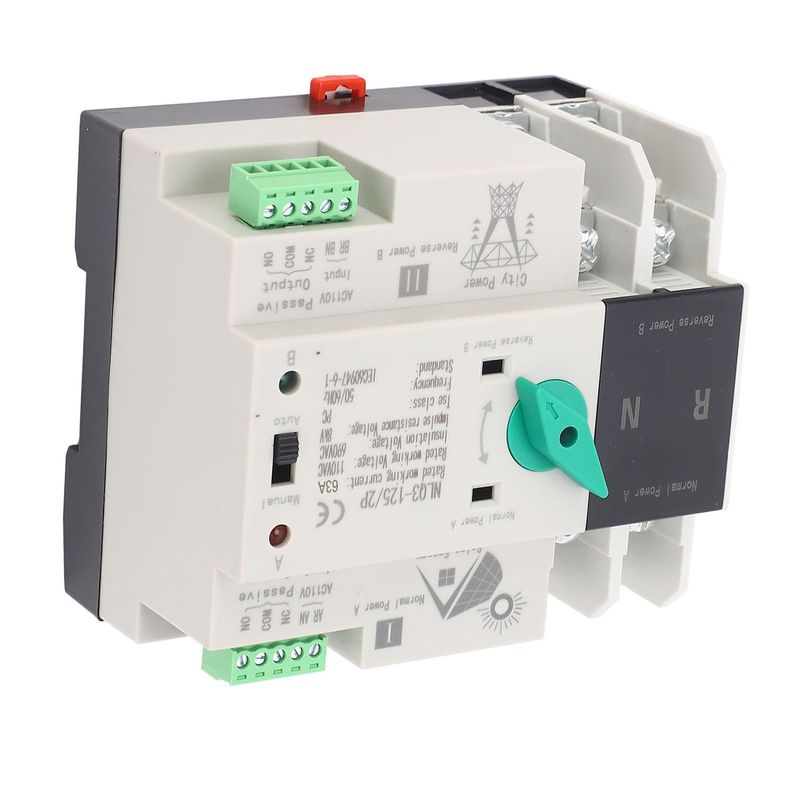

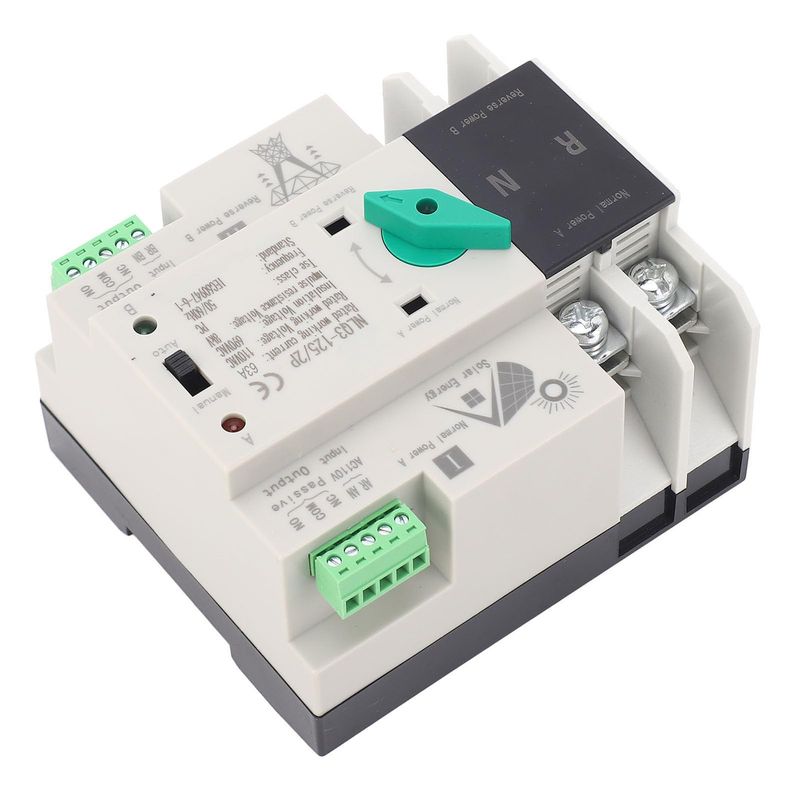

Power Automatic Transfer Switch 2P 110V 63A Mini ATS Generator Changeover Switch Electrical Selector Din Rail Emergency Backup Power Transfer Switch

Brand: Tomantery Sold By: TopSelected
Out of Stock
Ships from United States Arrives in 5-10 business days

Free Standard Shipping on orders over 89

30-day returns in original condition. Food, medicine & supplements are non-returnable.
Delivery:
19
August2026
-
26
August2026
Power Automatic Transfer Switch 2P 110V 63A Mini ATS Generator Changeover Switch Electrical Selector Din Rail Emergency Backup Power Transfer Switch

Power Automatic Transfer Switch 2P 110V 63A Min...

$41.62

Description
  • ?【IMPORTANT PARAMETER】 Rated current : 63A/100A (Optional) | Insulation voltage : AC690V AC | Rated voltage : AC400V AC | Rated Frequency : 50Hz/60Hz | Electrical level : PC grade | Rated shock withstand voltage : 8KV | Control circuit : Rated control voltage Us : AC110V 85% Us 110% Us | Touch time : <50ms | transition time : <50ms | Return time : <50ms | Closing time : <50ms
  • ?【IMPROVED RELIABILITY】 When there is an abnormality in the normal power supply , the electrical selector switch can instantly switch to the emergency power supply , supporting both automatic and manual operation , switching in milliseconds without cutting off the power supply , ensuring continuity and reliability .
  • ?【SUPERIOR DURABILITY】 The generator changeover switch is made of flame retardant PC material , with good insulation , high temperature and other characteristics , very rugged and durable , and the use of silver contacts , anti aging , and reliable , and greatly improves the conductivity and service life .
  • ?【VERY EASY TO INSTALL】 The 2P 110V power automatic transfer switch is compact , measuring only 109*96*69mm / 4 . 29*3 . 78*2 . 72inch , lightweight and easy to install , and can be mounted on a standard 35mm DIN rail , making it easy to adapt to most applications .
  • ?【WIDE RANGE OF USAGE】 This 2P 110V emergency power changeover switch can be used in various places where continuous power failure is not allowed , such as bars , restaurants , KTV , etc . In addition , this power automatic transfer switch is also very suitable for home use .

  • Manufacturer: Tomantery
  • Model Number: Tomanterydvf42yizp3
  • Part Number: Tomanterydvf42yizp3
  • Style: 63A

1. Working Principle: When there is an abnormality in the normal power supply, the backup power supply immediately operates, ensuring the continuity, reliability, and safety of the power supply.
2. Auto Manual Modes: This transfer switch supports automatic and manual operation, millisecond switching, and widely used in various situations where continuous power outages are not allowed.
3. This transfer switch has a compact structure, , rated current of 63A, coil voltage of 110VAC, suitable for emergency power supply system at 50/60Hz.
4. Premium Materials: The changeover switch adopts PC flame retardant plastic shell, with good insulation, high temperature resistance, the silver alloy is aging resistance, has a long service life.

Specification:
Item Type: Power Automatic Transfer Switch
Product Model: NLQ3-125/2P
Material: Flame Retardant PC, Silver Alloy
Switch Type: Secondary Distribution
Rated Current: 63A
Rated Frequency: 50/60Hz
Electrical Level: PC Isolation Type
Auxiliary Circuit: 2 Relays, each with 2 sets of capacity: AC110V50HZ le=5y
Touch Time: Switching Time: Return Time: Closing Time:

packing list:
1 x Power Automatic Transfer Switch
1 x User Manual

Notice:
1. The maximum ambient temperature should not exceed 40?, and the minimum should not be lower than ?5?. The average temperature within 24 hours should not exceed 35?.
2. The installation location should not be at an altitude exceeding 2000m.
3. When the highest temperature reaches 40?, the relative humidity at the installation site should not exceed 50%; when the temperature is at the lowest ?5?, the relative humidity is higher, for example: at a temperature of 25?, the relative humidity is 90%. Due to temperature changes, special measures should be taken to deal with occasional condensation on the of
