Powerful Pulse Cycle Delay Timer Switch 12V-24V Time Delay Relay with STOP Function
- ✅[Key emergency STOP function]: There is a key emergency STOP function (STOP key), and it features reverse connection protection, and reverse connection does not burn.
- ✅[Multiple opto isolated digital inputs]: It is dsigned with 16 opto isolated digital inputs and 3 opto isolated digital outputs.
- ✅[Upgrade algorithm]: It features upgrade algorithm, and it supports soft interpolation, and it fixed arc interpolation bug of the old version.
- ✅[Analog spindle control]: Analog spindle control 0-10V spindle control (can be modified as PWM output).
- ✅[Clear and powerful]: The interface is clear, simple, and powerful. It almost meets all requirements.
- Color: Blue
- Manufacturer: SEAFRONT
- Package Quantity: 1
- Part Number: Walfront
Description:
This product features added sleep mode, and it can automatically close the display without any after enabling 5 minutes.The different OP, CL and LOP parameters can be set, which are independent and saved separately.
Specification:

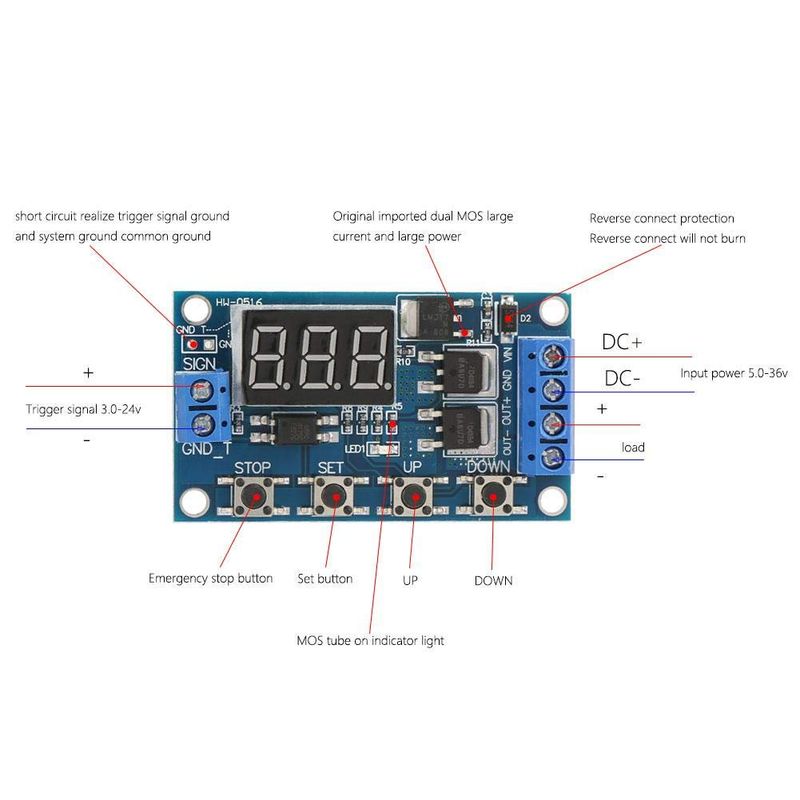

2: Trigger Source: Active-high (3.0V-24V), have optocoupler isolation, can improve the system's anti-jamming capability (customers can also shorting common ground).
Output capacity: 5V--36V DC, 15A continuous current at room temperature, 400W power (maximum current up to 30A under auxiliary cooling conditions)
Service life: infinite times switch
Working temperature: - 40~85℃
Weight: Approx.16g/0.6oz
Operating mode:
P1: trigger signal, the relay is on "OP" time, and then disconnect; in the "OP" time, as follows:
P1.1: is triggered again, invalid
P1.2: is triggered again, the clock is reset
P1.3: trigger again, relay off, stop the clock;
P-2: trigger signal, the relay off "CL" of time, the relay on "OP" time, and then disconnect relay;
P3.1: trigger signal, the relay is turned on after the "OP" time, the relay off "CL" time, then the cycle, if the trigger period, the relay off, stop the clock; the number of cycles ( "LOP ") can be set.
P3.2: without triggering signal, the relay is on "OP" time, the relay off "CL" time, and has been cycling; frequency ( "LOP") cycle can be set;
P-4: holding function. If there is a trigger timing is cleared, the relay remains on; when the disappears, after the timing "OP" time, the relay is; if another during timing, timing is cleared.
Package list:
1 × Pulse Cycle Delay Timer Switch
