POWERTEC 71847 Concealed Hinge Jig for Cabinet Door Mounting and Installation
Introducing the 35mm Concealed Hinge Jig Kit by POWERTEC.

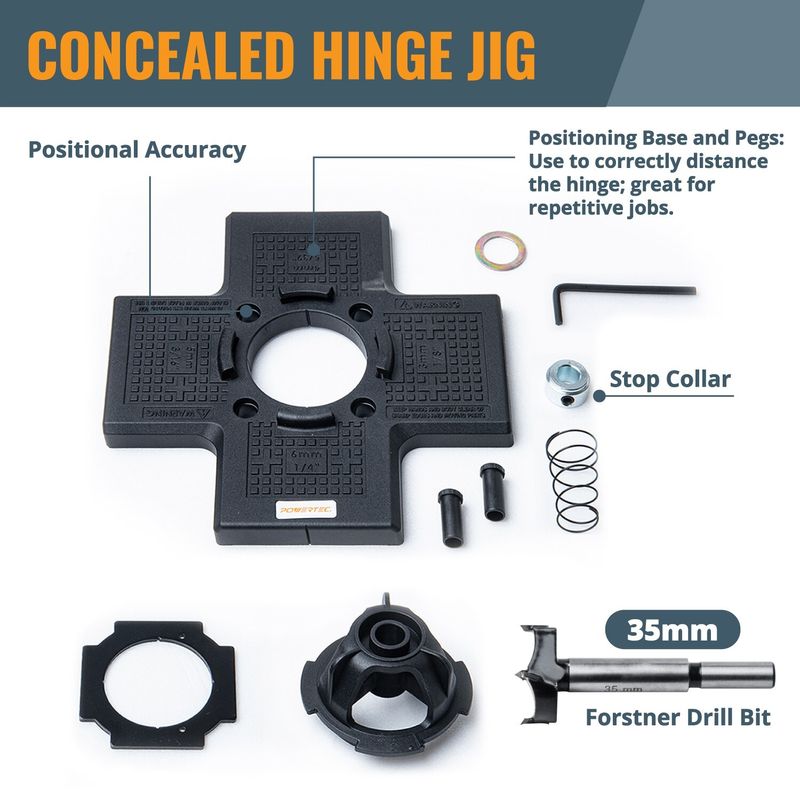

- INCLUDES: (1) Base, (1) Pilot Hole Template, (1) Drill Guide, (1) Stop Collar, (1) 35mm Forstner Bit, (1) Hex Wrench, (1) Spring, (1) Bearing Washer, (2) Set Pins
- FUNCTION: The Concealed Hinge Jig ensures that the cup holes are drilled in the correct location and at the correct depth, so you can install the hinges accurately and easily. It also allows you to use a regular drill, instead of a drill press, which makes the process more convenient
- FEATURES: Movable set pins ensure proper hinge offset, a quick-set depth stop collar that makes it easy to set the proper drill bit depth, and accurate hinge positioning with built-in indexing tabs
- EASY TO USE: A quick and easy way to drill accurate holes for concealed cabinet door hinges, this jig is suitable for home use and does not require any professional skills. The jig has a razor-sharp 35mm carbide tipped drill bit perfect for most woodworking applications
- PREMIUM DESIGN: The hinge jig base is made out of high-tech engineered polymer, drill template constructed of high grade protective metal, making it durable and long-lasting to withstand the wear and tear of everyday use
This concealed hinge jig kit offers a simple and accurate way to drill cup holes for concealed cabinet door hinges using just a drill. A must-have for anyone who wants to install or mount cabinet doors using concealed hinges, this cabinet jig tool makes the process easy and accurate, and perfect for woodworkers of all skill levels.

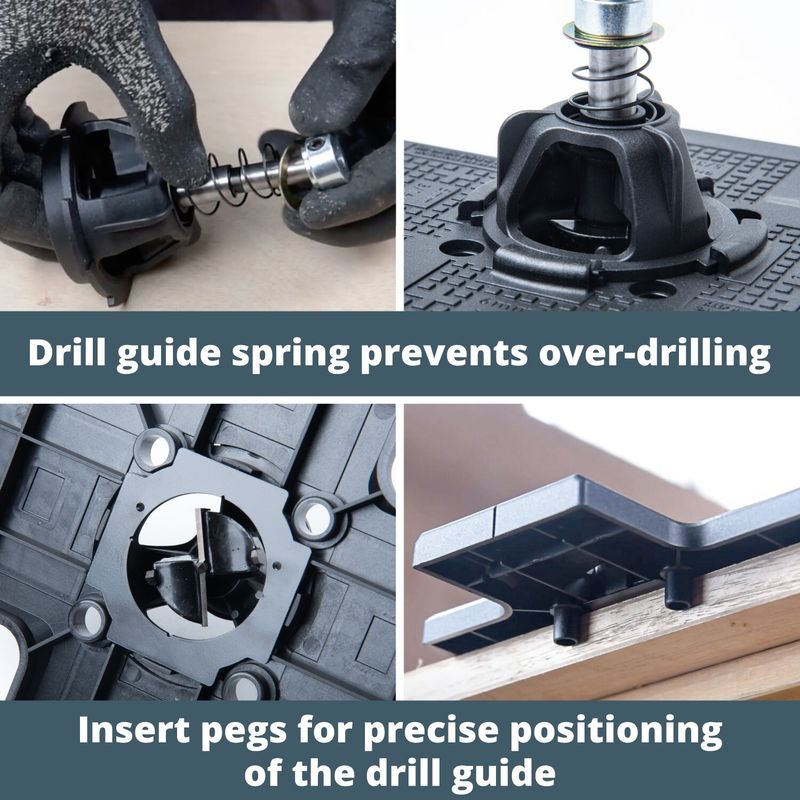

The guide/bit assembly is spring loaded and locks into the base with indexing tabs, so you can be sure that the holes you drill will be perfectly positioned. The jig also includes a carbide-tipped 35mm drill bit that will drill the holes cleanly and smoothly, without chipping or breaking the wood.

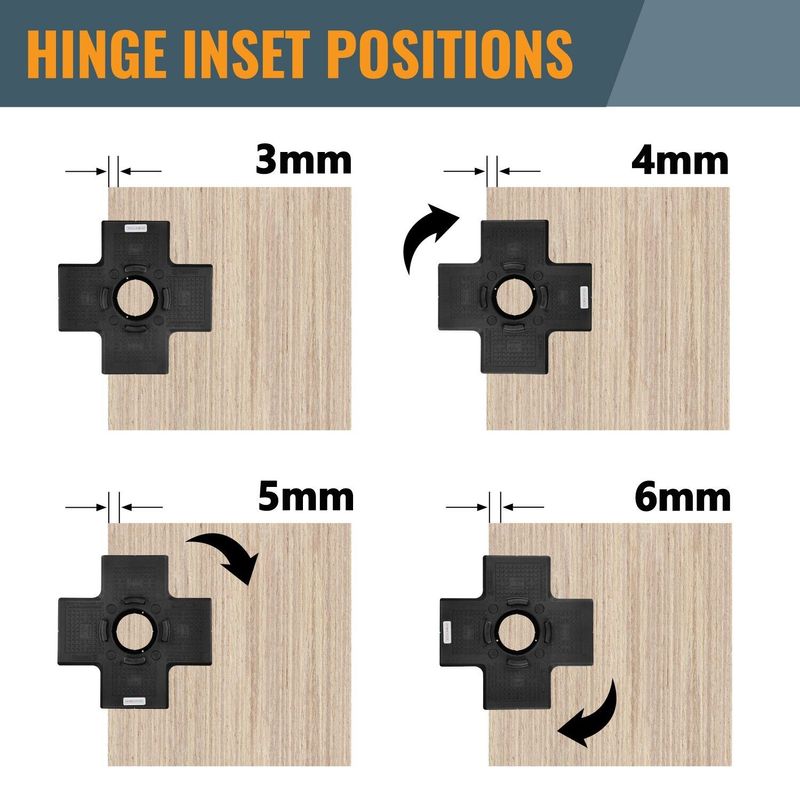

The jig has indexing tabs that allow you to quickly and easily adjust the position of the bit to match the offset of the hinge you are using. The bit guide ensures the bit is always in the correct position, and the stop collar ensures the hole is drilled to the correct depth. With its compact and ergonomic design, it is easy to store and use with any drill, with no special tools required.
How To Use:
- Determine the spacing required for your hinges.
- Remove the cutter/guide assembly from the base of the jig.
- Press up to remove the pins and replace them on the side of the jig needed.
- Align the pilot hole template correctly and clamp the jig to the cabinet side of the door.
- Drill two 1/16" holes using the pilot hole template.
- Place the guide/bit assembly in an electric drill with a 3/8" chuck and lock it into the base of the jig.
- Drill until the stop collar hits the drill guide, setting the proper depth.
POWERTEC is a leading manufacturer of high quality woodworking tools and accessories, machines, and an assortment of OEM replacement parts. We are committed to exceeding expectations, while bringing the latest innovations, technology, and product development to the industry.
