Pro Micro with 32U4 chip Development Board, AYWHP 3 PCS Pro Micro 5V/16MHz Nano microcontroller Development Board with Built-in USB updater Type-C Interface Compatible with Arduino IDE

Brand: AYWHP Sold By: TopSelected
Out of Stock
Ships from United Kingdom Arrives in 10-15 business days

Free Standard Shipping on orders over 89

30-day returns in original condition. Food, medicine & supplements are non-returnable.
Delivery:
01
October2026
-
08
October2026
Pro Micro with 32U4 chip Development Board, AYWHP 3 PCS Pro Micro 5V/16MHz Nano microcontroller Development Board with Built-in USB updater Type-C Interface Compatible with Arduino IDE

Pro Micro with 32U4 chip Development Board, AYW...

$56.96

Description
  • Maximum performance: the Pro micro microcontroller development board runs at 5 V/16 MHz and supported by IDE V1.0.1 for smooth programming. Suitable for Arduino.
  • Versatile connections: Pro micro with 4 x 10-bit ADC pins, 12 x digital I/Os and serial Rx and Tx hardware connections, you have all the ports you need.
  • Easy programming: Pro micro simply connect the motherboard to the on-board micro USB port and program it. If it is not detected, just install the driver.
  • Multifunctional I/O: Pro micro there are 54 digital input/output pins available, including analogue inputs/outputs, as well as interfaces such as PWM, SPI, I2C etc., which offer a wealth of hardware connection options.
  • Good compatibility: the seamless integration with the Arduino IDE and the extensive development tools and libraries ensure a smooth learning curve and make it a good choice for beginners.

  • Manufacturer: not
  • Size: not

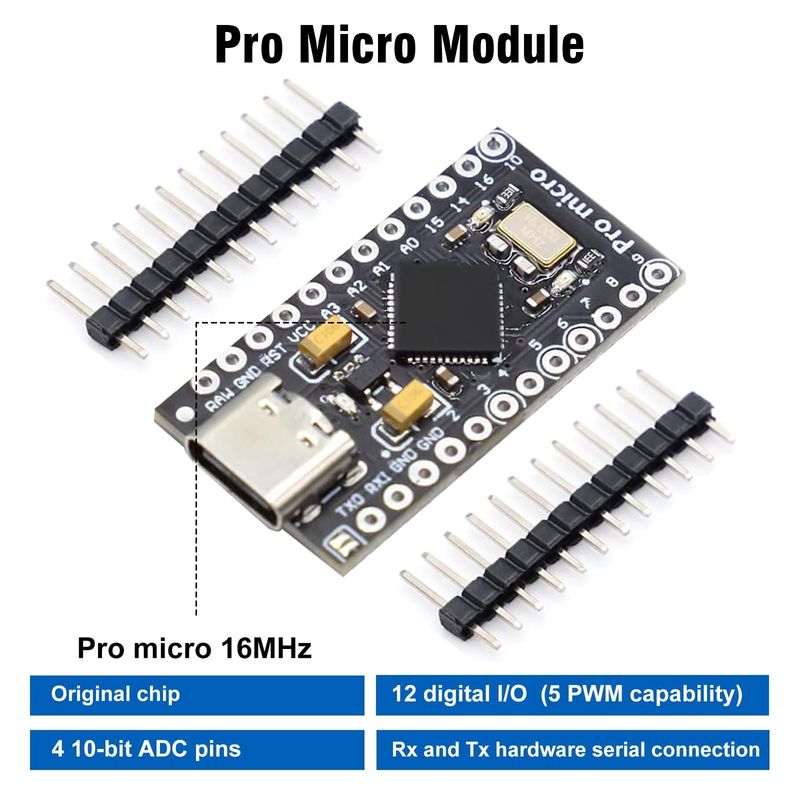

Product parameters:

Microcontroller: ATmega32U4

Operating voltage: 5 V

Recommended input voltage: 5 - 12 V

Digital inputs and outputs (I/O pins): 18 (including 5 PWM outputs)

Analog inputs: 9

Current per I/O pin: 40mA

Flash memory: 32 KB, of which 4 KB is used for bootloaders

SRAM: 2.5 KB

EEPROM: 1 KB

Clock frequency: 16 MHz


Features:

1. The Pro Micro ATmega32U4 runs at 5 V/16 MHz

2. Recommended power supply for the board: 6-7V, less than 9V

3. On-board micro USB port for programming

4.4 x 10-bit ADC pins, 12 x digital I/Os

5. Serial hardware ports Rx and Tx


How to use?

1. Connected to the computer. (If the module is not recognized by your computer, please install the driver first)

2. Open IDE and load the blink skit.

3. Set the board to Leonardo and select the appropriate COM port (it has already been identified as Leonardo in the list).

4. One LED connected to pin 9 and modified the sketch accordingly.

5. Press upload and have flashing LED within a few seconds.


Note:

When you open the IDE software, please go to the tool and select the board "Leonardo" or "Genuino Micro".


Package includes:

3 x Pro Micro with ATmega32U4 chip 5 V 16 MHz module
