QIACHIP 433mhz RF Wireless Transmitter and Receiver Module Kit RX480e For Arduino,Remote Control Radio Switch 1527 Learning Code DIY Controller
- 【Excellent Design】433Mhz RF wireless remote control switch. Stable and reliable performance with high reception sensitivity (> 107dBm). Radio frequency signal transmission. Strong signal can pass walls, floors, doors, board and so on. It can be controlled within 68 meters distance in open area.
- 【Wide range of applications】Adapt to receive module, motorcycle, car anti-theft products, home security products, electric door, remote control socket, remote control LED, garage door remote control, remote control door opener, remote control curtain, alarm host, remote control MP3
- Wide Voltage Input (transmitter) :DC 3V-24V,Wide Voltage Input (Receiver) ：DC3.3~5V ;Good selectivity and stray radiation suppression
- Temperature range: -40 to 85 °C Even in harsh ambient temperatures
- 【Multiple Working Modes】 Momentary Mode；Toggle Mode； Latched Mode.Feel free to switch to use, easy to operate
- Color: Transmitter and Receiver Kit
- Manufacturer: QIACHIP
- Model Number: RX480E-4+TX118SA*3
- Package Quantity: 1
- Part Number: QIACHIP_480E_118S_TX3SET
Transmitter module
Transmitting power: 11dbm
Emission current: 10 mA
Rate of fire: maximum 10KB / S
Operating Voltage: DC 3V-24V
Encoding : 1527 Learning code
Each module has a unique ID address code.
All modules K1-K4 four key code is the same.
Receiver module
Working Voltage : DC3.3~5V
Quiescent Current : ≤5mA
Output current : 10 mA
Working Frequency: 433MHz
Receive Sensitivity: -108dB
Working Temperature : -25~75
Working mode: ①Momentary Mode；②Toggle Mode； ③Latched Mode.
The output: 4 channel CMOS level signal Corresponding to the remote control ABCD 4 buttons.
Pins Instruction
GND : ground or negative pole
V : DC3.3~5V input
D0/ D1/ D2/ D3: Data output
VT: Output
How to match transmitter and receiver
1. Delete existing data: Press learning button(on the receiver) 8 times. Response: LED flashes 7 times.
2. Learning remote code: press learning button(on the receiver) once, twice or three times. LED turns on: learning mode is active. Press any button of the remote control. LED indicator flashes three times: learning successfully completed.
3. Test: after the above operation , the receiver board can be controlled by the remote control. More transmitters with different IDs can be learned and stored additionally, starting with step 2. A mixture of different modes is possible.

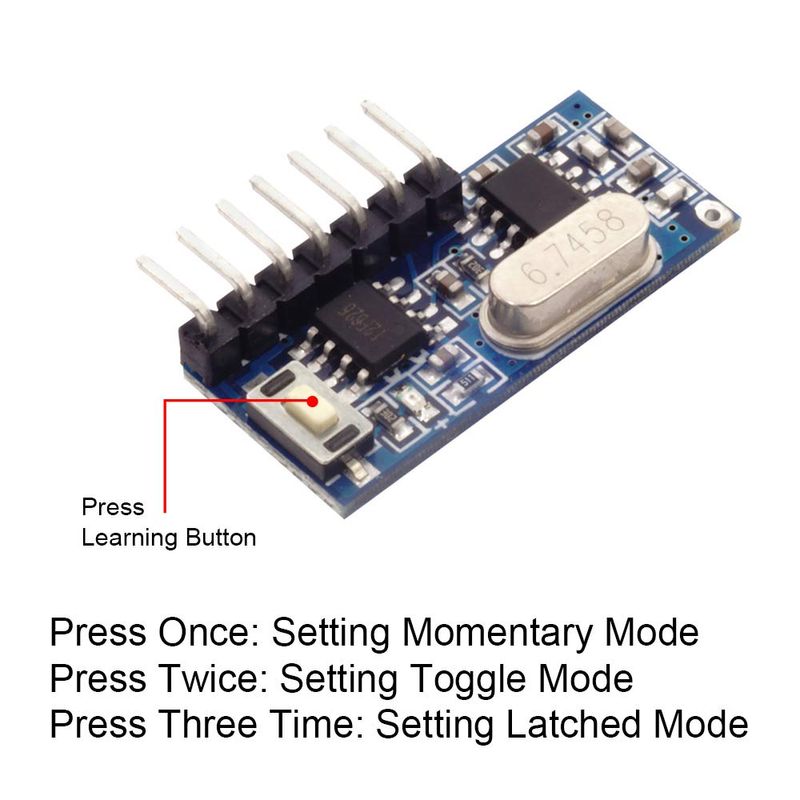

Button usage (sets mode and starts pairing process): Press once: Inching mode (Momentary Mode) Press twice: self-Lock Mode (Toggle-Mode of the 4 Channels) Press three times: interlocked mode (selected channel active and be cleared, if another channel becomes active)
