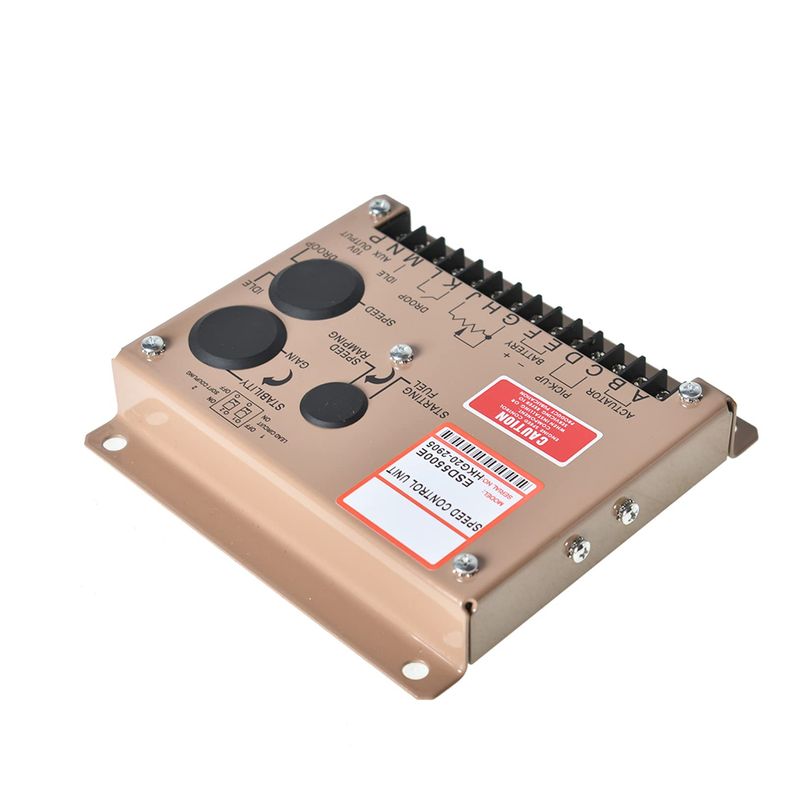

raseparter ESD5500E Generator Controlle Genset Parts Electronic Engine Speed Governor Generator Regulator Controller

raseparter ESD5500E Generator Controlle Genset ...

$99.04

Product Details
  • Output current: 0-10A DC square wave (continuous). Speed Trim Range: -/+ 200HZ 5K potentiometer. Input Power Supply: 12 or 24V DC.
  • Actuator short-circuit protection. Anti-reverse battery protection, Anstantaneous voltage and lost speed signal safety protection.
  • Suitable for GAC matched actuators (not for ACB2000 electronic actuators)
  • The speed controller has strict performance requirements, stability and durability, can maintain its high performance for a long time.
  • The generator accessories are easy to use, this speed regulator adds a smooth and slow start process control. The speed regulator supports the control function of starting the fuel.

  • Manufacturer: raseparter
  • Model Number: RAUSF7-5134
  • Package Quantity: 1
  • Part Number: does not apply
  • Style: fashion

ESD5500E Generator Controlle Genset Parts


Specification:
Operating temperature range: -20 Celsius -  85 Celsius
Relative humidity: 95%
Vertical signal: 0.5-120V RMS
Output current: 0-10A DC square wave (continuous)

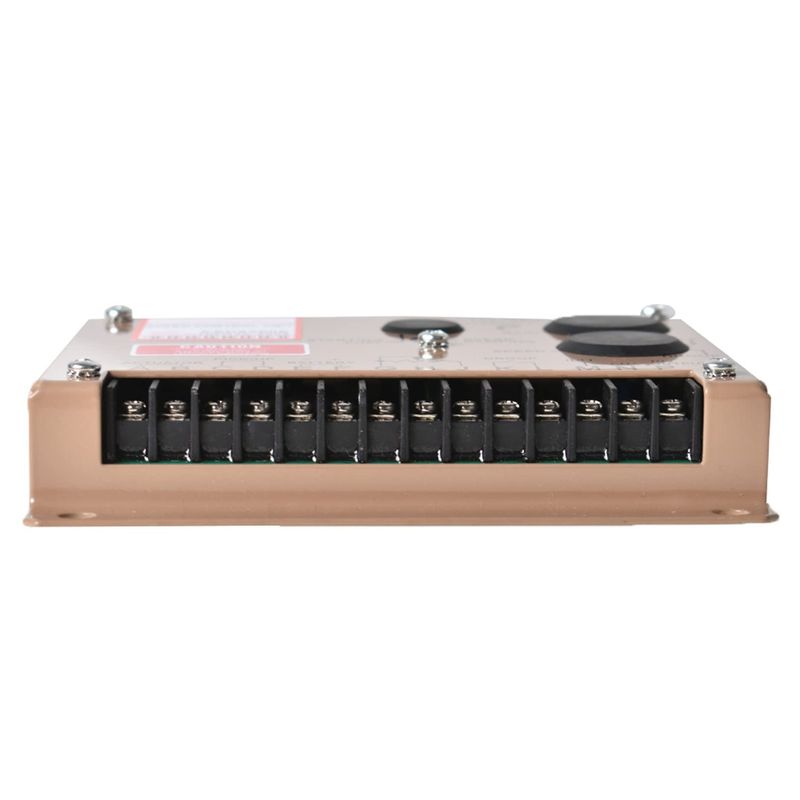

Connector:
A-B: Actuator
C-D: Speed sensor
E-F: Battery
G-J: Trimmer potentiometer
G-M: Idle switch
K-L: Speed control


Isochronous Operation/Steady State Stability:  -/+ 0.25% or better
Speed Range/Governor: 1K-7.5K Hz continuous
Speed Drift with Temperature:  -/+ 1% Maximun
IDLE Adjustment:  160 -/+ 20Hz ~ 60% of set speed
Droop adjustment Min. (K-L Jumpered) :  15Hz. -/+ 6Hz. per 1.0 A change
Droop adjustment Max.(K-L Jumpered):  400Hz. -/+ 75Hz. per 1.0 A change
Droop Adj. Max. (K-L Jumpered):  875Hz., -/+ 75Hz. per 1.0 A change
Droop Adj. Min. (K-L Jumpered):  15Hz., -/+ 6Hz. per 1.0 A change
Remote Variable Speed Range:  500 -7.5Hz. or any part thereof


Terminal Sensitivity:
J: 100Hz., -/+ 15Hz/Volt at 5.0 K Impedance
L: 735Hz., -/+ 60Hz/Volt at 65 K Impedance
N: 148Hz., -/+ 10Hz/Volt at 1Meg. Impedance
P: 10V DC Supply at 20ma Max.


1 x Generator Controlle
