Schlage PS902 2A Power Supply (12/24VDC) – UL Listed Access Control
The Schlage PS902 is a high-performance 2-amp power supply engineered for demanding access control systems. Designed with flexibility and ease of installation in mind, it delivers regulated, filtered power at either 12VDC or 24VDC (field selectable). With universal AC input, optional battery backup, and compatibility with Schlage's full range of relay and fire alarm interface boards, this unit is ideal for commercial security systems. Its rugged NEMA Grade 1 enclosure, LED status indicators, and integrated safety features make it a reliable backbone for electrified hardware like strikes, maglocks, and card readers.
Key Features:
-
Constant Output Power:
-
2 Amps @ 12VDC or 24VDC (jumper selectable)
-
Maintains full output regardless of selected voltage
-
-
Universal AC Input:
-
Accepts 120–240 VAC, 50/60 Hz
-
Fused primary input for added protection
-
-
Filtered and Regulated Power:
-
Class 2 low-voltage output
-
Switching supply with 5% voltage regulation and 240 mVpp max ripple
-
-

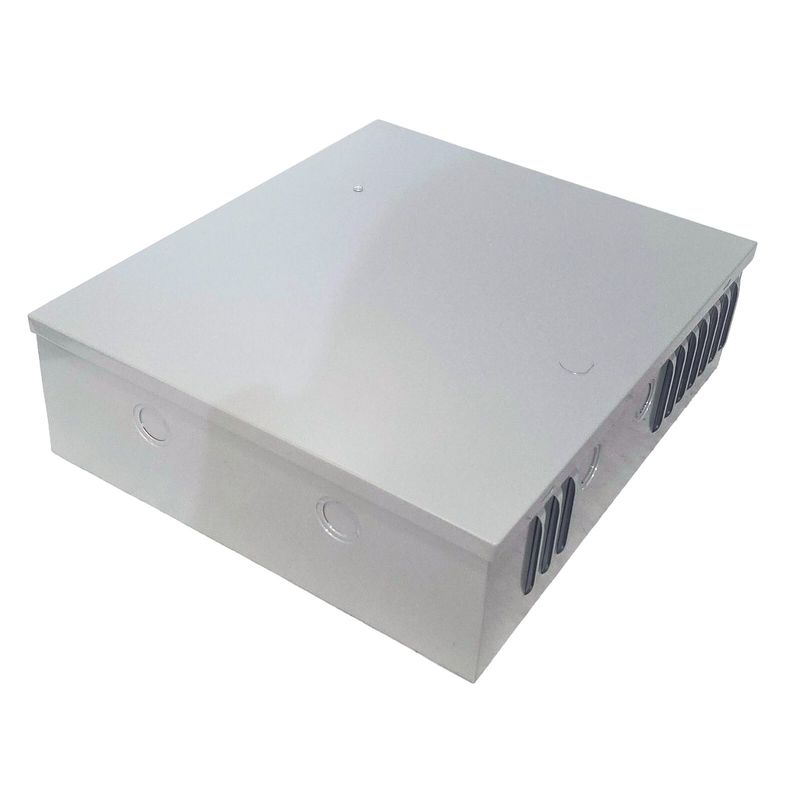

Robust Enclosure:
-
14" H × 12" W × 4" D baked enamel steel
-
Eight ½" × ¾" knockouts
-
Hinged cover with lockdown screws
-
NEMA Grade 1 rated
-
-
Visual Status Monitoring:
-
LED indicators for AC input and DC output
-
AC input LED visible externally
-
Isolated SPDT contacts monitor AC power loss
-
-
DC Output Protection:
-
Overload-protected with current-limited foldback circuitry
-
-
Battery Backup Support (optional):
-
Supports 900-BB (board only) or 900-BBK (board + battery pack)
-
Each battery weighs approx. 4.0 lbs
-
-
Expansion & Option Boards:
-
One slot for polarized plug-in board
-
Fire Alarm: 900-FA
-
Relays: 900-2RS, 900-4R, 900-4RL (logic capable)
-
Zone Boards: 900-8F (fused), 900-8P (PTC)
-
-
Connection Terminals:
-
AC input: 3-position terminal block, 10 AWG max
-
DC output: 2-position terminal block, 12 AWG max
-
-
Certifications:
-
ANSI/UL 294, ULC-S318, RoHS, FCC Part 15
-
Compliant with Class 2 standards
-
-
Operating Temp Range:
-
32°F to 120°F (0°C to 49°C)
-
-
Weight:
-
Approx. 8.0 lbs without battery
-
