- This USB Camera Module features 5MP highdefinition lens, so that image picture is clearer, 100°field of view, wider field of view
- Adopts Highdefinition photosensitive chip OV5640, stable performance and clearer images
- Supports OTG protocol, standard UVC protocol, with microphone, USB drive-free
- On-board CMOS image sensor OV5640, supports LED fill light, ISP (image signal processing), AFC (autofocus control) functions
- Supports Win XP/Win7/Win8/Win10/MAC OS/Linux/Android operating systems
- Color: 100 Degree FOV
- Manufacturer: SEENGREAT
- Model Number: SG-OV5640-U5M-100
- Part Number: SG-OV5640-U5M-100
Overview:

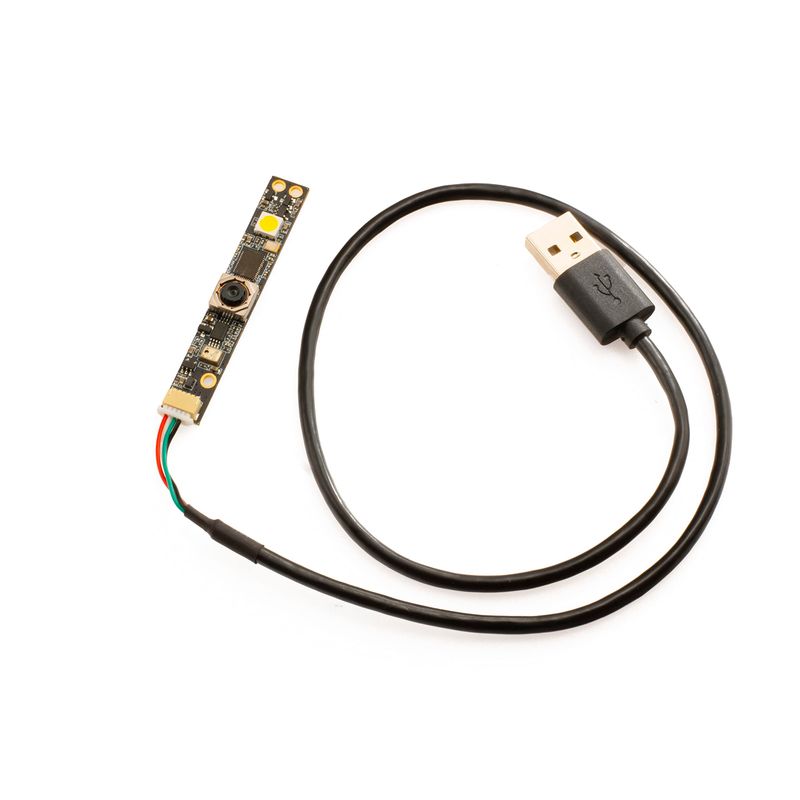

This USB Camera Module adopts the CMOS image sensor OV5640 produced by OmniVision Technologies, the high-definition camera has 5 megapixel, adopts USB2.0 interface.
it weighs only 8g, autofocus comes with flash and microphone,
support Win XP / Win7 / Win8 / Win10 / MAC OS / Linux / Android operating system.
Specifications:
Item: OV5640-U5M-100
Size: 62mm(Length)*9mm(Width)* 5.55mm(Hight)±0.2mm
Temperature (Operation): -30℃~70℃
Temperature (Stable Image): 0℃~50℃
Assembly Technique: SMT(ROSH)
Focus: Auto
Object Distance: 30cm~infinity
Resolution: 800LW/PH (Center)
Interface: USB2.0
Power Supply: USB bus power
Supply Voltage: DC 5V±5%
Maximum Power Consumption: 1200mW
Operating System Request:Win XP/Win7/Win8/Win10/MAC OS/Linux/Android
Sensor: OV5640 (1/4” )
Sensor Package: CSP, Bare Die
Maximum resolution: 2592*1944
Sensitivity: 600mv /(lux-sec)
Pixel Size: 1.4µm * 1.4µm
Maximum Image Transfer Rate:
MJPEG 1280x720 30FPS /YUY2 1280*720 12FPS;
MJPEG 1280*960 15FPS /YUY2 1280x*960 5FPS;
MJPEG 1600*1200 15FPS / YUY2 1600x1200 5FPS;
MJPEG 1920*1080 30FPS /YUY2 1920*1080 5FPS;
MJPEG 2048*1536 15FPS /YUY2 2048*1536 5FPS;
MJPEG 2592*1944 15FPS /YUY2 2592*1944 2FPS;
S/N Ratio: 36db
Max Dynamic Range: 68db
Shutter type: Electronic rolling shutter
AGC/AEC/Whiter Balance: Auto
Output Formats: YUY2/MJPEG
Microphone: Support
Lens Construction: 4P
F/No: 2.0
EFL: 2.6mm
FOV: 100°
TV Distortion: <1%
Relative Illumination (Sensor): 70%
IR Filter : 650±10nm
Module Package: Anti-electrostatic tray
Package contents:
1.OV5640-U5M-100 x1
2.USB to HX1.25-5P connecting cable x1
