Smart Car Robot For Arduino, Obstacle Avoidance Sensor Module Infrared Reflection Sensor For 10PCS
- The sensor module light is adaptable to the environment, there is a pair of infrared transmitter and receiver pipes, the infrared tube emits a certain frequency, when the direction meets obstacles (reflective surface), the reflective infrared receiver will have a green indicator light up, and the signal output interface (low level signal), which output digital signal at the same time
- The detection distance can be adjusted via the potentiometer knob, the effective distance range is 2-30cm, and the operating voltage is 3.3-5V
- The detection range of the sensor can be adjusted via the potentiometer, and has small interference, easy to assemble and easy to use
- Widely used for robot obstacle avoidance, obstacle avoidance, line counting, black and white line tracking

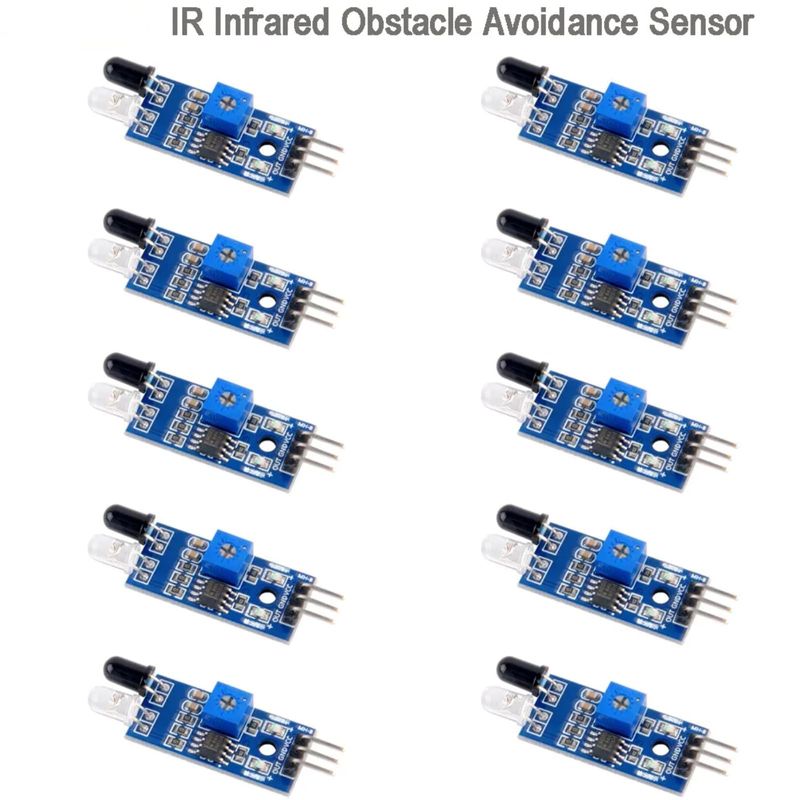

- Package included: 10pcs IR IR IR Obstacle Avoidance Sensor
- Manufacturer: ZEZEFUFU
- Package Quantity: 1
- Part Number: JZJPF110300000
Facial Face:
The sensor module light is adaptable to the environment, there is a pair of infrared transmitter and receiver pipes, the infrared tube emits a certain frequency, when the direction meets obstacles (reflective surface), the reflective infrared receiver will have a green indicator light up, and the signal output interface (low level signal), which output digital signal at the same time.
The detection distance can be adjusted via the potentiometer knob, the effective distance range is 2-30cm, and the operating voltage is 3.3-5V.
The detection range of the sensor can be adjusted via the potentiometer, and has small interference, easy to assemble and easy to use.
Widely used for robot obstacle avoidance, obstacle avoidance, line counting, black and white line tracking.
Package included: 10pcs IR IR IR Obstacle Avoidance Sensor
ATTENTION:
1. When the module detects an obstacle in front of the signal, the green indicator on the output port output output signal at the same time the circuit board light level, the detection module can be adjusted by 2-30cm, 35° detection angle, test distance is potentiometer, adjustable clockwise potentiometer, increase the detection distance. Counterclockwise tuning potentiometer reduces detection distance.
2. Sensor, active infrared reflection detection, and therefore target reflectivity and shape are key to detection range. White One Black Detection Range, Min. Small area of objects distance, large distance
3. The output port output of the sensor module can be directly connected to the io port of the microcontroller, also can drive 5V relay directly. Connection Mode: VCC-VCC; GND - GND; Out - IO
4. The comparator uses LM393 to ensure working stability.
5. Can be used for 3.3 to 5V DC power supply to the power module Red power indicator light turns on when power on.
6.3mm screw hole, easy to fix and install.

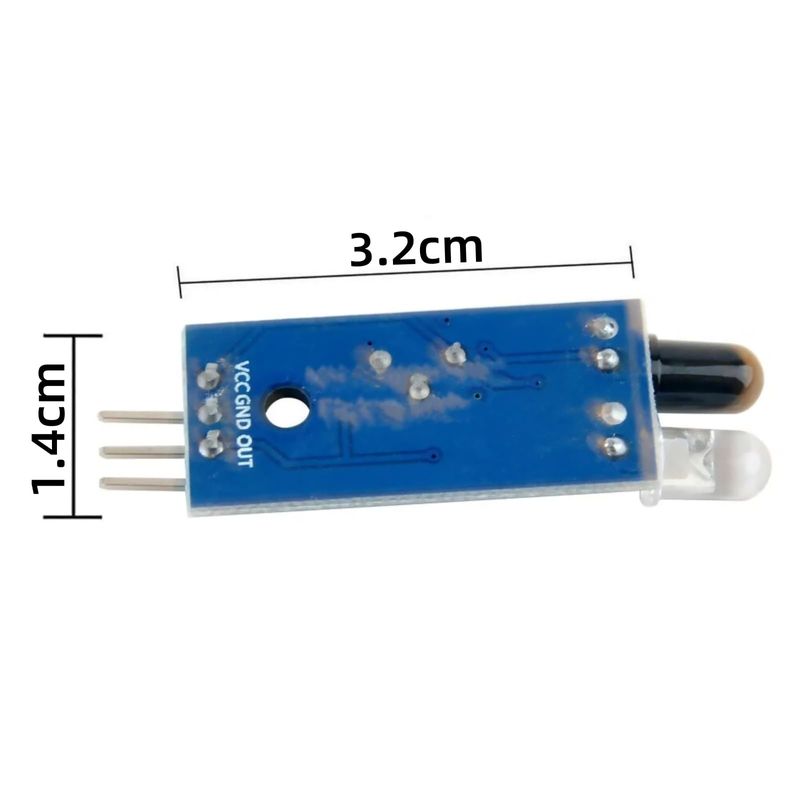

Circuit board size: 3.2cm * 1.4cm 7.
8. Each module is already shipped. Compare the threshold voltage via potentiometer, do not adjust the potentiometer arbitrarily, not special situation, not special situation.
Interface:
1. VCC voltage is 3.3V to 5V converter(can be directly connected to 3.3V with 5V single chip microcontroller)
2. GND External GND
3. Small plate digital output interface (0 and 1) to
Package includes:
10pcs IR IR IR Obstacle Avoidance Sensor
