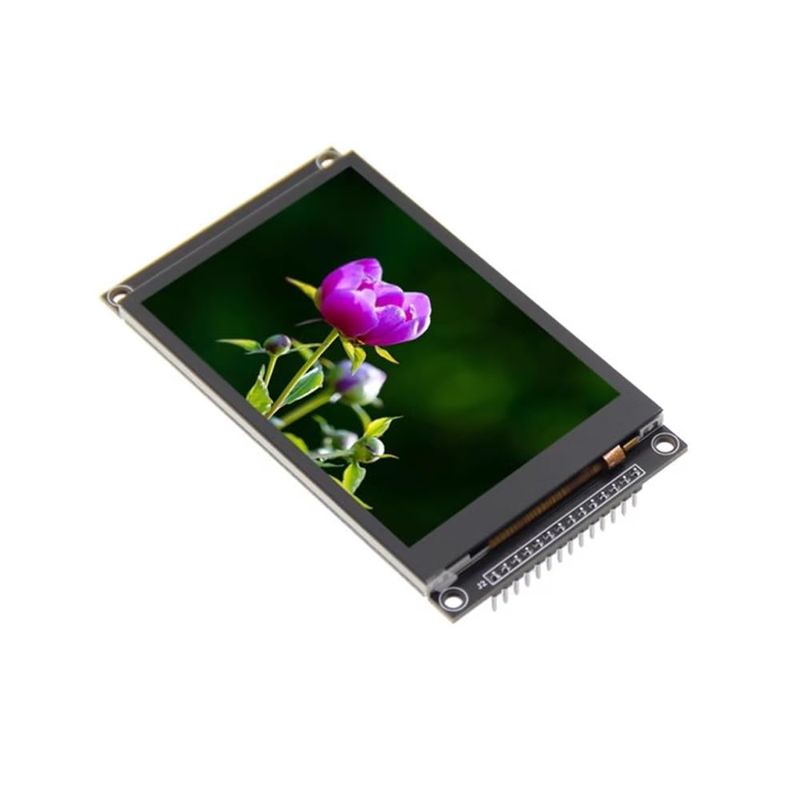

TFT LCD IPS Screen Display Module,3.2 inch SPI Serial Port Touch Screen,320 x 480 Resolution IPS 65K

Brand: DONGKER Sold By: TopSelected
Out of Stock
Ships from United Kingdom Arrives in 10-15 business days

Free Standard Shipping on orders over 89

30-day returns in original condition. Food, medicine & supplements are non-returnable.
Delivery:
17
August2026
-
24
August2026
TFT LCD IPS Screen Display Module,3.2 inch SPI Serial Port Touch Screen,320 x 480 Resolution IPS 65K

TFT LCD IPS Screen Display Module,3.2 inch SPI ...

$51.08

Product Details
  • The TFT LCD Display Screen is an electronic component used to display images and text.
  • Multiple tests for module aging can meet military level standards, supporting long-term stable work.
  • Provide low-level driver technical support, and update WIKI information online.
  • Provide rich example learning programs (ESP32/STM32/U&Mage2560/C51/CH32).
  • SHOP WITH CONFIDENCE: To provide you with the highest quality service, If you have any question, please contact us.We will provide after-sales service until you are satisfied.

  • Manufacturer: DONGKER
  • Part Number: 448064

Feature:

3.2 inch color screen with 320*480 resolution of 65K colors and rich display colors

The upgrade adopts IPS full view panel, with good visual angle

On board level conversion circuit, compatible with 5V and 3.3V MCU

Adopting a 4-wire SPI serial bus to save I/O pins

Optional capacitive touch/no touch function for modules

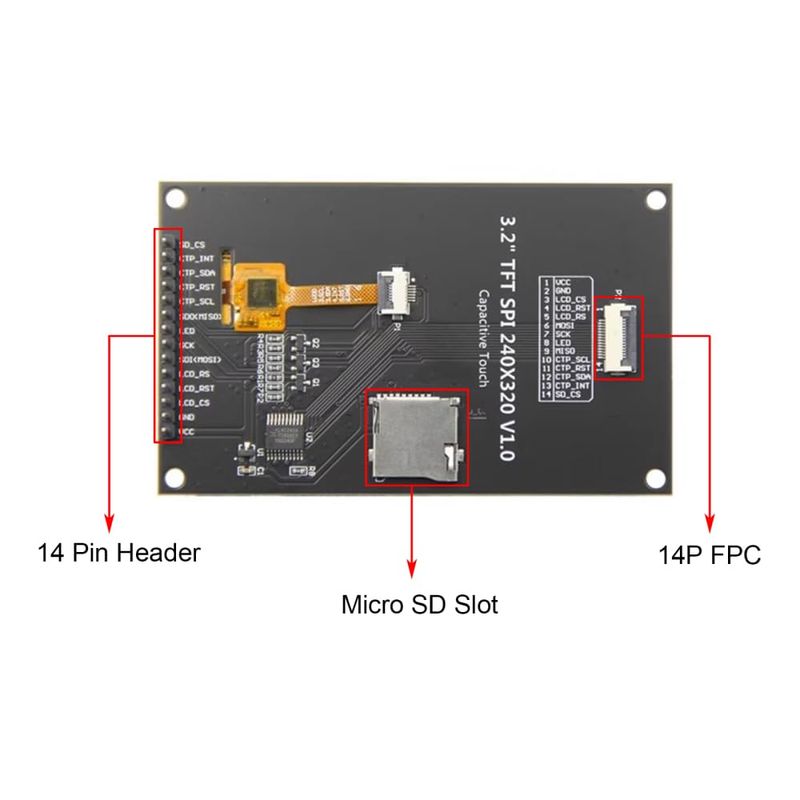

Module input supports 2.54 pin interface and FPC extension interface

Equipped with micro TF card slot for easy storage expansion

LCD:

Screen Size:3.2 inch

Screen Type:IPS

Resolution:240*RGB*320 (pixels)

Active Area(AA area):49(W)*65(H)(mm)

Number of Colors(Max):262K

Driver IC:ILI9341V

Display Interface:4-Line SPI

Pixel Size:0.20(H)*0.20(V)(mm)

View Angle:ALL O'CLOCK

Brightness(TYP):280(cd/m^2)

Backlight Type:White LED*6

Operation Temperature:-10℃~50℃

Storage Temperature:-20℃~60℃

Touch Screen:

Touch Active Area:3.2 inch

Touch Screen Type:Capacitive Touch Screen

Touch Screen Resolution:240*320(pixels)

Driver IC:FT6336U

Touch Screen Visual Area:49(W)*66(H)(mm)

Communication Interface:IIC

Operation Temperature:-20℃~60℃

Storage Temperature:-30℃~70℃

Size:

TFT Outline Size:55(W)*78(H)*3(D)mm(Excluding cables and adhesive backing)

Touch Screen Outline Size:55(W)*78(H)*1(D)mm(Excluding cables and adhesive backing)

Module Outline Size:Have Touch Screen:55(W)*91(H)*13(D)mm(including Pin Header);NO Touch Screen:55(W)*91(H)*15(D)mm(including Pin Header)

Parameter:

Working Voltage :5.0 V

Backlight Current:95 mA

Power:0.5 W

Package:
