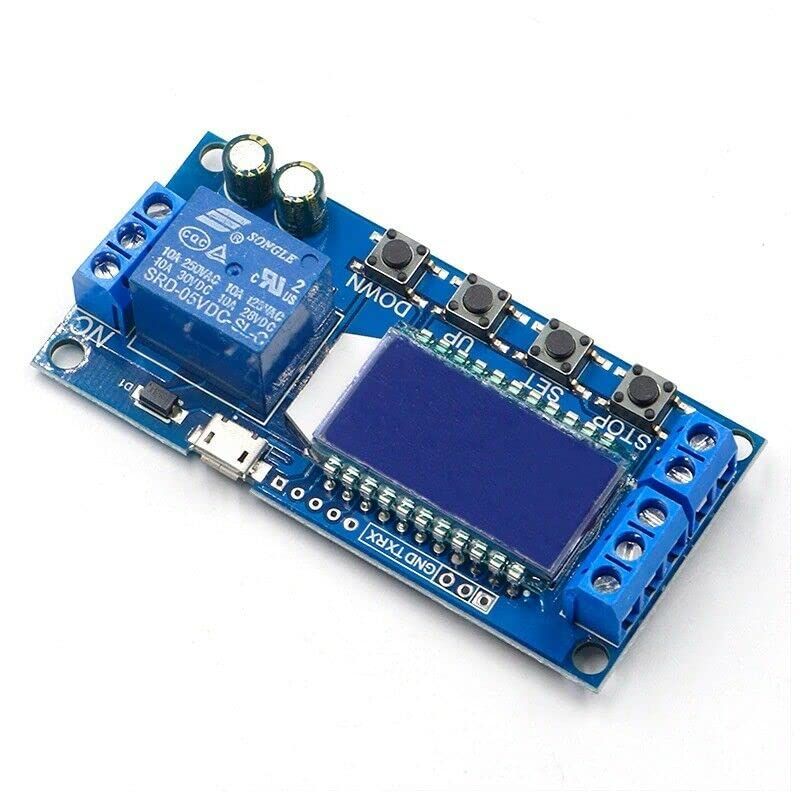

Time Delay Relay DC 5V 12V USB Relay Module 6-30V Delay Controller Board Delay-Off Cycle Timer Control Switch with LCD Display Support Micro USB 5V Power Supply DIY
- The working voltage range of the timing delay relay module is DC 6-30V, and it supports micro USB 5.0 V power supply; it supports high-level triggering 3.0V-34V and low-level triggering 0V-0.2V; the timing range is 0.01s9999mins, which can be continuously adjusted. Powerful and easy to use. Instruction link: Please get it from the product description.
- LCD display: The relay board adopts LCD display, which can clearly and intuitively display the current mode and parameters.
- Sleep Mode: Without any operation within 5 minutes, the LCD backlight of the 12v timing relay will automatically turn off. Any button can wake up.
- Independent parameters: OP/CL/LOP parameters can be modified and saved, and are independent. Auto save: All setting parameters are automatically saved when power off.
- Auto sleep function/low battery function: On the running interface, long press STOP to turn on or off the auto sleep function. (L-P select ON to turn on the sleep function, OFF to turn off the sleep function);
- Manufacturer: LeHang
- Model Number: L14480
- Part Number: L14480
Features:
Support high and low level trigger;
Emergency stop function;
Sleep mode, any key to wake up;
Automatically save parameters;
Compatible with UART Set;
Continuously adjustable from 0.01 seconds to 9999 minutes;
Additional Features:
a) Relay function selection: On the operation interface, short press STOP, the relay function starts or closes, 'ON' meets the conduction condition and the relay is normally turned on, and 'OFF' meets the conduction condition and the relay does not conduct; in the "OFF" state down, the system flashes "OUT".
b) Parameter view: On the operation interface, short press SET to display the current parameter settings of the system, which does not affect the normal operation of the system.
c) Display content switching: In P-5 P-6 mode, press DOWN to switch the display content (running time/cycle times).
Product parameters:
Operating voltage: 6V~30V, support micro USB 5.0 V power supply
Working current: 50mA
Quiescent current: 15mA
Control current: 10 A (max)
Maximum output load: DC 30V 5A and AC 220V 5A Trigger signal source: high level trigger (3.0V~24.0V), low level trigger (0.0V~0.2V), switch control (no potential contact)
Service life: more than 100,000 times
Operating temperature: -40-85°C
Applicable battery: battery, lithium battery
Reverse Protection: Yes
Parameter description:
OP: ignition time;
CL: shutdown time;
LOP: Number of loops. The range is 1-99 times.
"----" means infinite loop.
Package includes
1*12V 5V USB Delay Relay Module
