- 【Portable Oscilloscope 】 This portable oscilloscope features a 2.4-inch color TFT display, the size is 3.35*2.26*0.79 inches, easy to carry
- 【High Sampling Speed 】 The maximum real-time sampling rate of this small oscilloscope is 24MS/s, with a bandwidth of 200KHz. The maximum input voltage is -16V or +50V.The resolution is 320*240. It’s suitable for electronic competition, electronic experiment teaching, electrical maintenance, sensor output detection and so on

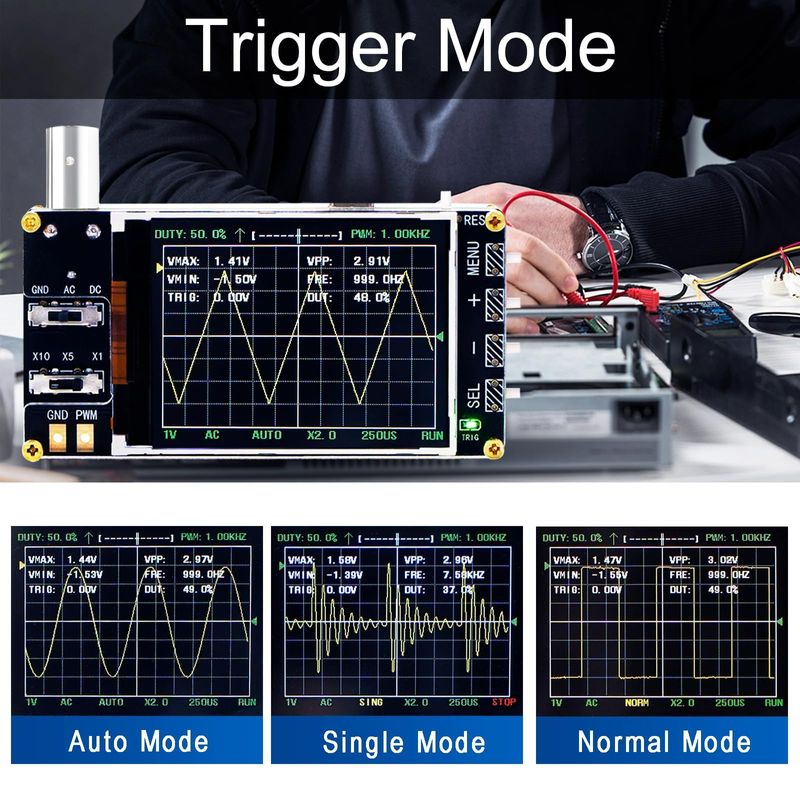

- 【Multiple Trigger Modes】This oscilloscope offers three full trigger modes: automatic, normal and single. It is easy to capture the instantaneous waveform in order to realize the stable display and measurement of the waveform. You can choose to trigger the rising or falling edge
- 【Easy Measurement】 This oscilloscope can choose GND/AC/DC three coupling modes and X10/X5/X1 three sensitivity adjustable. Note When using, if you are not sure about the signal voltage, you can first select the gear position of 10V/div, and then long press [MENU] to enter the detailed information interface for observation, so as not to damage the oscilloscope
- 【Simple Operation】Press the "SEL" key to select the parameters to be adjusted. Press the Menu key to freeze the waveform and display the parameters clearly. Press and hold MENU to display the information screen, including VPP and frequency. The oscilloscope comes with a detailed manual, making it easy to operate and learn.
- Manufacturer: Treedix
- Model Number: 0003
- Part Number: 0003
Specifications:
Maximum Real-Time Sampling Rate: 1M Sa/s
Analog Bandwidth: 0–200KHz
Vertical Sensitivity Range: 1V/div – 10V/div
Maximum Input Voltage: -16V or +50V
Input Impedance: 1MΩ/20pF
Vertical Resolution: 12 bits
Record Length: 600 points
Time Base Range: 100ms/div – 25us/div
Trigger Modes: Auto, Normal, and Single
Power Supply: 5V DC
Power Supply Current: ~140mA
Dimensions: 85*57.5*20mm(3.35*2.26*0.79in)
Note: :
The black end of the BNC alligator clip must be connected to the common ground (0V) and must not be connected to positive or negative voltage to prevent damage. The red end allows a voltage range of -16V to +50V.

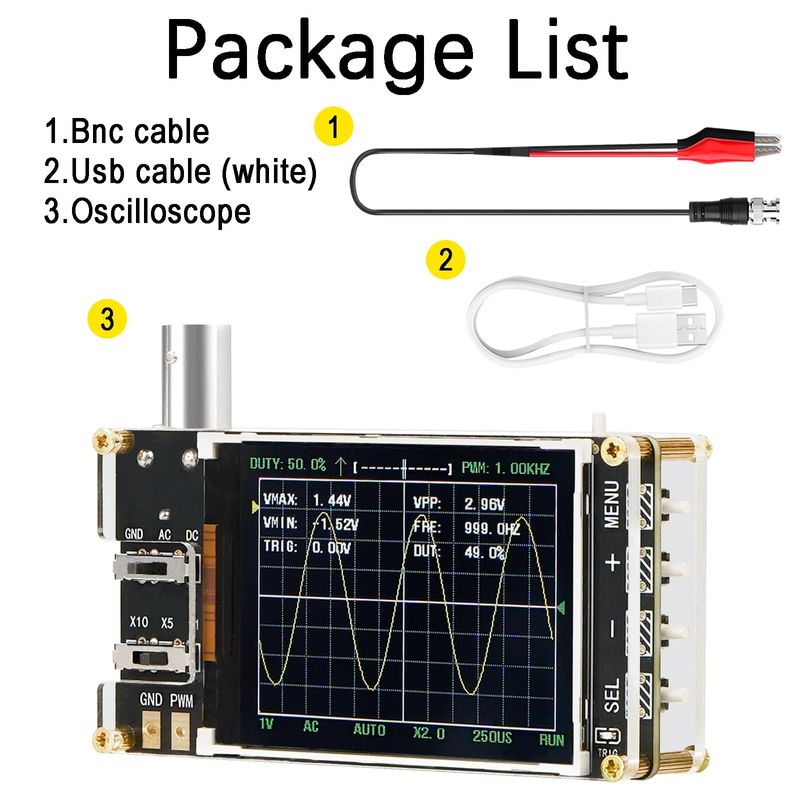

Package includes:
1Pcs*Digital Oscilloscope
1Pcs*USB cable
1Pcs*BNC alligator clip
