- PL2303GT RS232 USB Cable for Pylontech Firmware Updates US2000C US3000C US5000 Lithium Battey Console Communication Debug Cable
- USB Cable for Polontech Firware Updates, PL2303GT RS232 Board Inside the USB Plug
- 1 x PL2303GT USB RJ45 RS232 Cable for PYLONTECH Firmware US2000C US3000C US5000
- For the PL2303GT driver, download and install, please go to the official website of the Prolific Company to download and install it
- Only work for Pylontech US2000C US3000C US5000 Lithium Battey Console Firmware Updates, other devices may not work. Please note before purchase
- Color: black
- Manufacturer: usangreen
- Part Number: USB-RJ45-PL2303GT-RS232
- Size: Length: 6.0Feet/180CM
US2000C US3000C US5000 Lithium Battey Console Communication Debug Cable PL2303GT RS232 USB Cable for Pylontech Firmware Updates
Material: PVC outer sheath.
Cable: 28AWG x 3C, OD3.5
Conductor wire: bare copper
Color: Black
Chipset: Prolific PL2303GT.
Type: USB to RS232
Length: 100 cm, 180 cm, 300 cm, 500 cm optional.
Connector: nickel-plated housing, gold-plated contacts.
Casing: USB black housing.
Testing: 3 times electrical inspection, appearance inspection.
Package includes: PE bag.

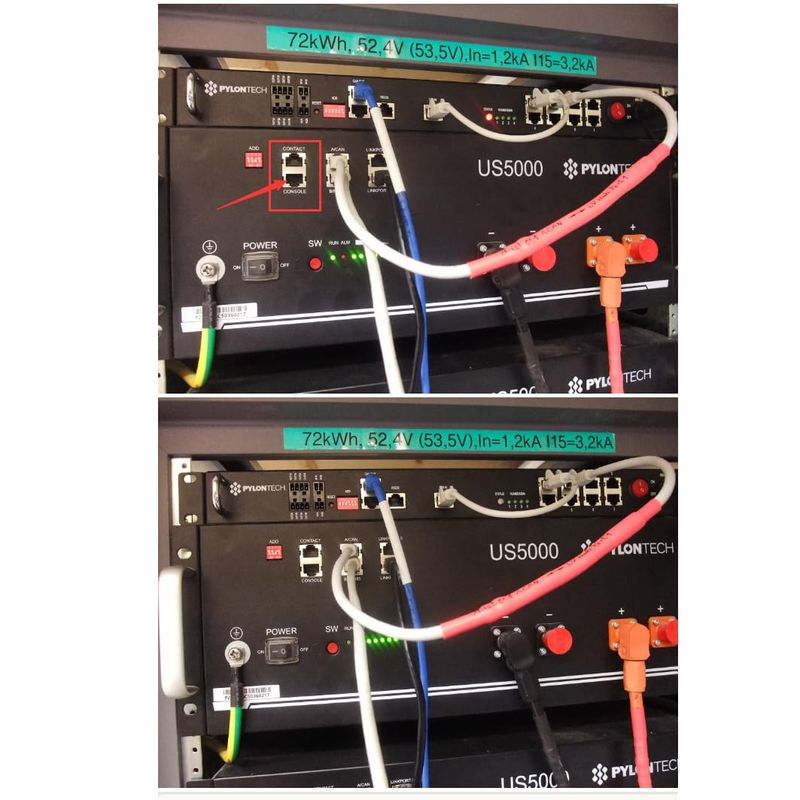

Application: serial console communication debug USB cable for US2000C US3000C US5000 lithium battery.

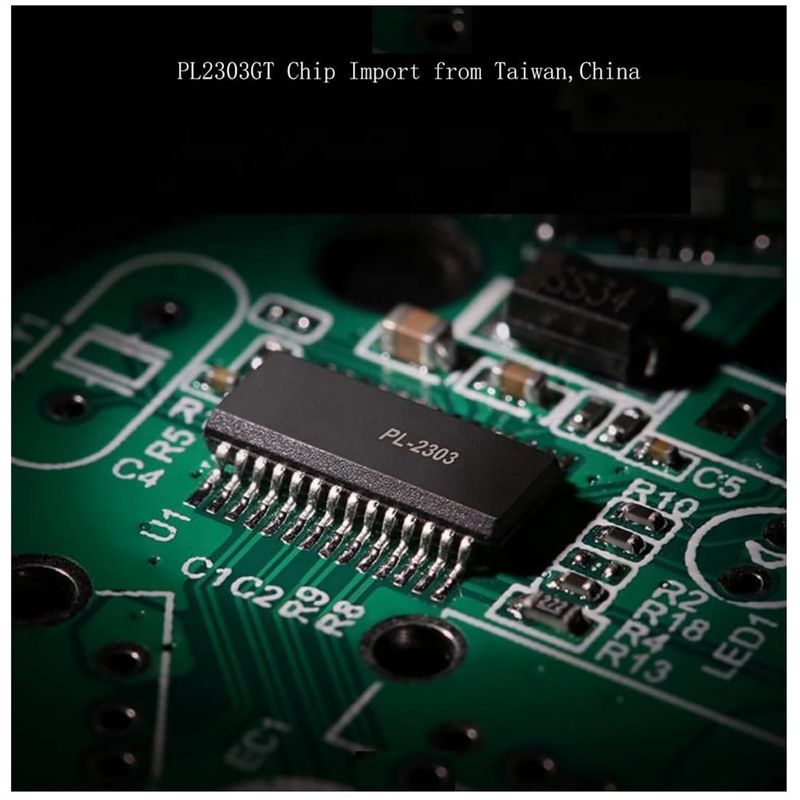

Integrated Prolific PL2303GT chipset in USB connector.
Driver Download Link:
For the PL2303GT driver, download and install, please go to the official website of Prolific Company to download and install.
Package:
1 x PL2303GT USB RJ45 RS232 Cable for PYLONTECH Firmware US2000C US3000C US5000
About PL2303GT
The new PL2303GT chip is one of the latest G series IC products added to the popular PL2303 USB to Serial (UART) bridge controller family and replaces the PL2303RA USB to RS232 serial chip. It provides an advanced single-chip bridge solution for connecting a full-duplex asynchronous serial UART interface device to any Universal Serial Bus (USB) enabled host. The PL2303GT offers highly compatible USB drivers to simulate the traditional COM port (via virtual COM port) on most operating systems, allowing existing UART serial applications to be easily migrated and made USB enabled based on an older COM port.
PL2303GT integrates a high-baud rate RS-232 transceiver that meets EIA/TIA-232F and CCITT V.28 communication interface specifications. The RS-232 transceiver is a 3-transmitter and 5-receiver device embedded with a highly efficient charging pump circuit. This highly efficient charge pump circuit with external 1uF capacitors provides the bipolar output to the transmitters and makes the transmitters to supply the RS-232 output voltage level. In normal operation, PL2303GT operates at very low power consumption with guaranteed data rate of up to 1000 kbps. PL2303GT also features an active low shut-off indicator pin, which can serve as a shut-off indicator for special applications.
The new PL2303GT is pin-to-pin compatible with the PL2303RA chip. It also integrates an RS-232 transceiver, internal precise clock generator (no external crystal required), USB 1.1 transceiver, Serial Interface Engine (SIE), LDO voltage regulator, power on reset (POR), FIFO data buffer and OTPROM.
The PL2303GT has added several new features and improvements:
Integrated termination resistors and pull-up resistor to reduce external PCB components.
New USB drivers for different OS platforms with faster performance and advanced features.
Precise baud rate generator (up to 1 Mbps)
OTPROM can be programmed directly via USB (no high voltage generator required).
Larger TX/RX FIFO data buffers (1024-byte)
Support 3.3V VBUS voltage operation
Unique USB serial number for each IC.
4 GPIO pins (all input mode when switched on) with easy to use SDK. Can also be configured as TX/RX access LEDs and I2C EEPROM (EE_SCL, EE_SDA) interface in OTPROM.
The PL2303GT is designed to support a wide range of RS232 serial applications, including mobile, embedded, industrial, consumer, healthcare, navigation, and portable solutions. It offers a small footprint that easily fits into all ports and handheld devices. With very low power consumption in operation or suspend mode, the PL2303GT is perfect for bus operation with plenty of power for the connected devices.
License free driver support.
Windows 10, 8, 7, Vista, XP (Microsoft certified WHQL driver).
- Windows Update driver installation available in Windows 7 and later (32/64-bit).
Windows Server 2003, 2008, 2008 R2, 2012, 2016, 2019
Windows Embedded Industry, Point-of-Service (WEPOS) and POSReady.
Windows Embedded Compact, Windows Embedded CE, Windows CE
Mac OS X
Linux OS 3.18 and above (supports Linux 5.5 in-box drivers and above).
Android 3.2 and above
